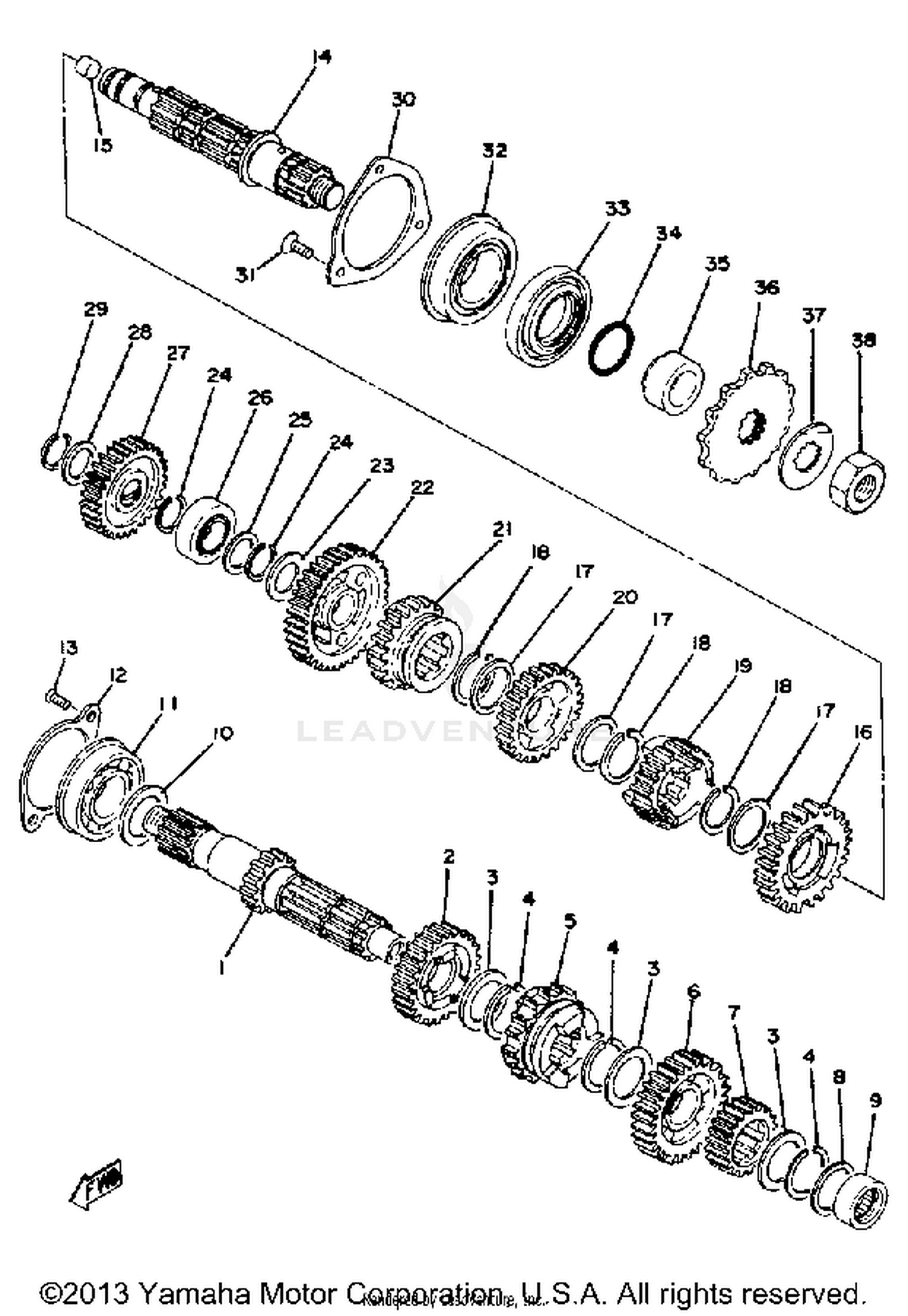

1978 Yamaha XT500 TRANSMISSION OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
583-17411-01-00
|
$334.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 4TH PINION
583-17141-00-00
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25020-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION
583-17131-02-00
|
$90.99 | ||
|
Unavailable |
|||
|
#6
GEAR, 5TH PINION
583-17151-01-00
|
$114.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 2ND PINION
583-17121-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE (T=1.0)
90201-20266-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93311-42012-00
Superseded by 93311-42077-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM 2 (25-34-0.5)
168-17428-01-05
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, DRIVE AXLE
168-17428-01-03
Superseded by 168-17428-01-05
|
$4.99 | ||
|
Unavailable |
|||
|
#11
BEARING
93304-20501-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, BRNG COVER
583-15383-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, FLAT HEAD
98701-06014-00
Superseded by 98707-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
AXLE, DRIVE
99999-01986-00
|
$304.99 | ||
|
Unavailable |
|||
|
#15
PLUG, SPEC''L SHAPE
90338-09066-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 2ND WHEEL
583-17221-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$6.99 | ||
|
Unavailable |
|||
|
#18
CIRCLIP
93440-25020-00
|
$5.99 | ||
|
Unavailable |
|||
|
#19
GEAR, 5TH WHEEL
583-17251-01-00
|
$89.99 | ||
|
Unavailable |
|||
|
#20
GEAR, 3RD WHEEL
583-17231-01-00
|
$123.99 | ||
|
Unavailable |
|||
|
#21
GEAR, 4TH WHEEL
583-17241-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 1ST WHEEL
583-17211-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-20278-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
93410-20038-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE (T=1.0)
90201-20266-00
|
$7.99 | ||
|
Unavailable |
|||
|
#26
BEARING, CYLINDER.#13
93313-32008-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, KICK IDLE
583-15651-00-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP
99009-17400-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE, BRNG COVER
363-15381-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#31
SCREW, COUNTERSUNK
98701-05012-00
Superseded by 98707-05012-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING
93306-30517-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL, SD-TYPE
93102-35180-00
|
$12.99 | ||
|
Unavailable |
|||
|
#34
O-RING
93210-22298-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR
90387-25507-00
|
$22.99 | ||
|
Unavailable |
|||
|
#36
SPROCKET, DRIVE (14T)
9383E-14145-00
Superseded by 9383E-14215-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
9383E-15082-00
Superseded by 4DN-17460-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE 16T (16T)
9383E-16106-00
|
$15.95 | ||
|
Unavailable |
|||
|
#37
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
90179-18020-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
