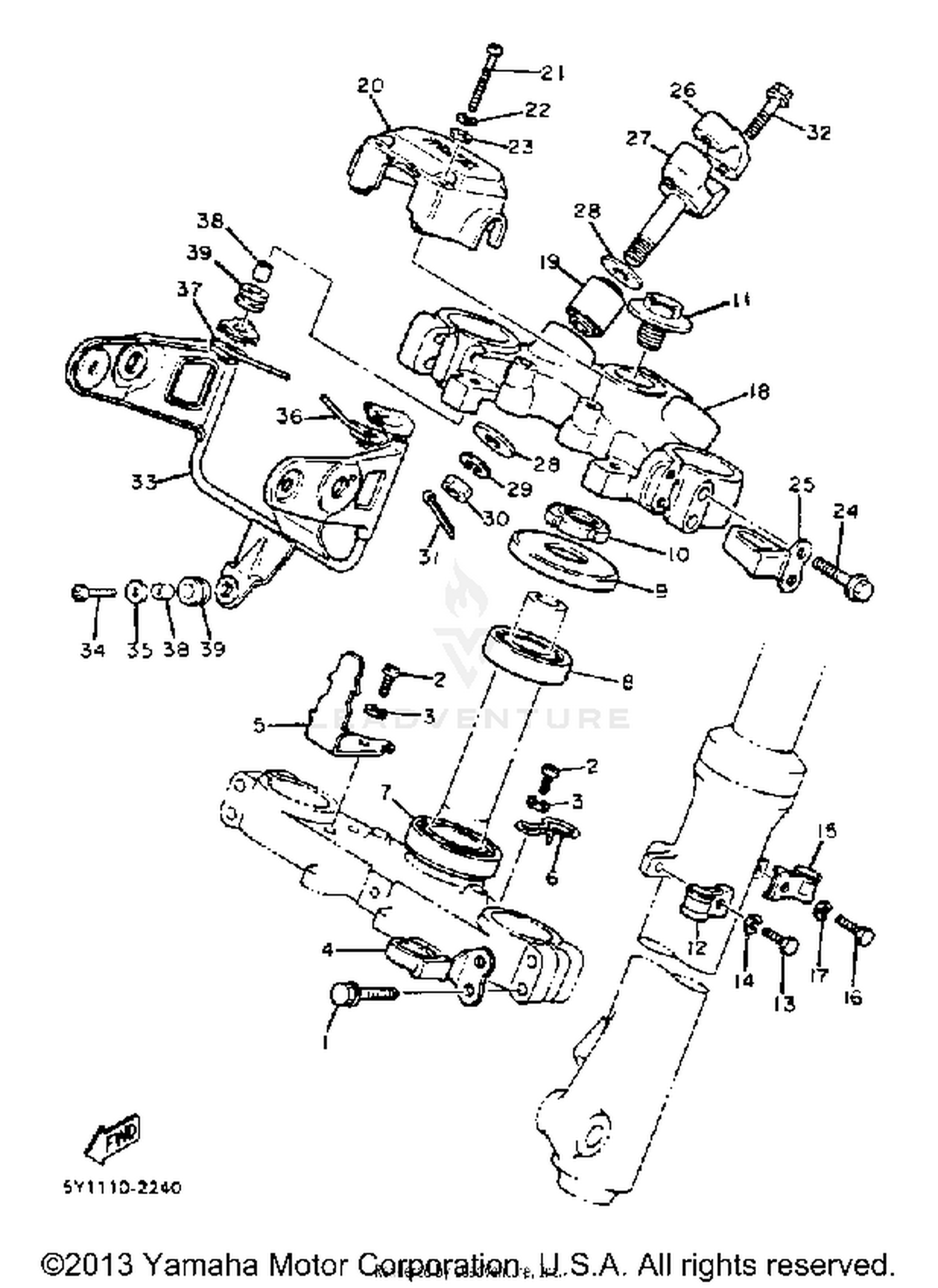

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, HEX SCKT HEAD
5Y1-23181-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, CABLE
5Y1-23389-00-00
Superseded by 3R4-23389-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER STOPPER 1
5Y1-23348-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#6
GUIDE, CABLE
3Y1-2331E-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#7
BEARING
93332-00008-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93332-00001-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, BALL RACE 2
3HE-23416-00-00
Superseded by 1W1-23416-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-14102-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, CABLE 2
3Y1-23319-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, CABLE 2
3Y1-23319-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#16
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.49 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$3.90 | ||
|
Unavailable |
|||
|
#18
CROWN, HANDLE
5Y1-23435-00-98
|
$87.82 | ||
|
Unavailable |
|||
|
#19
HOLDER, PAMPER
3Y6-23434-00-00
Superseded by 3Y6-23434-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, UPPER
5Y1-26213-00-98
|
$11.96 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98506-05045-00
Superseded by 98507-05045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95816-08040-00
Superseded by 95817-08040-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, CABLE
5Y1-23317-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#26
HOLDER, HANDLE UPR (1E6-23441-0
1E6-23441-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, HANDLE LOWER
3Y6-23442-00-98
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-100A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-10100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
95303-10700-00
Superseded by 95380-10700-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
90468-12006-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95816-08035-00
Superseded by 95817-08035-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
STAY, HEADLIGHT
5Y3-23174-01-00
|
$68.99 | ||
|
Unavailable |
|||
|
#34
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP
5Y1-23466-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#37
CLAMP
5Y1-23467-01-00
|
$9.99 | ||
|
Unavailable |
|||
|
#38
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GROMMET
90480-14023-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
