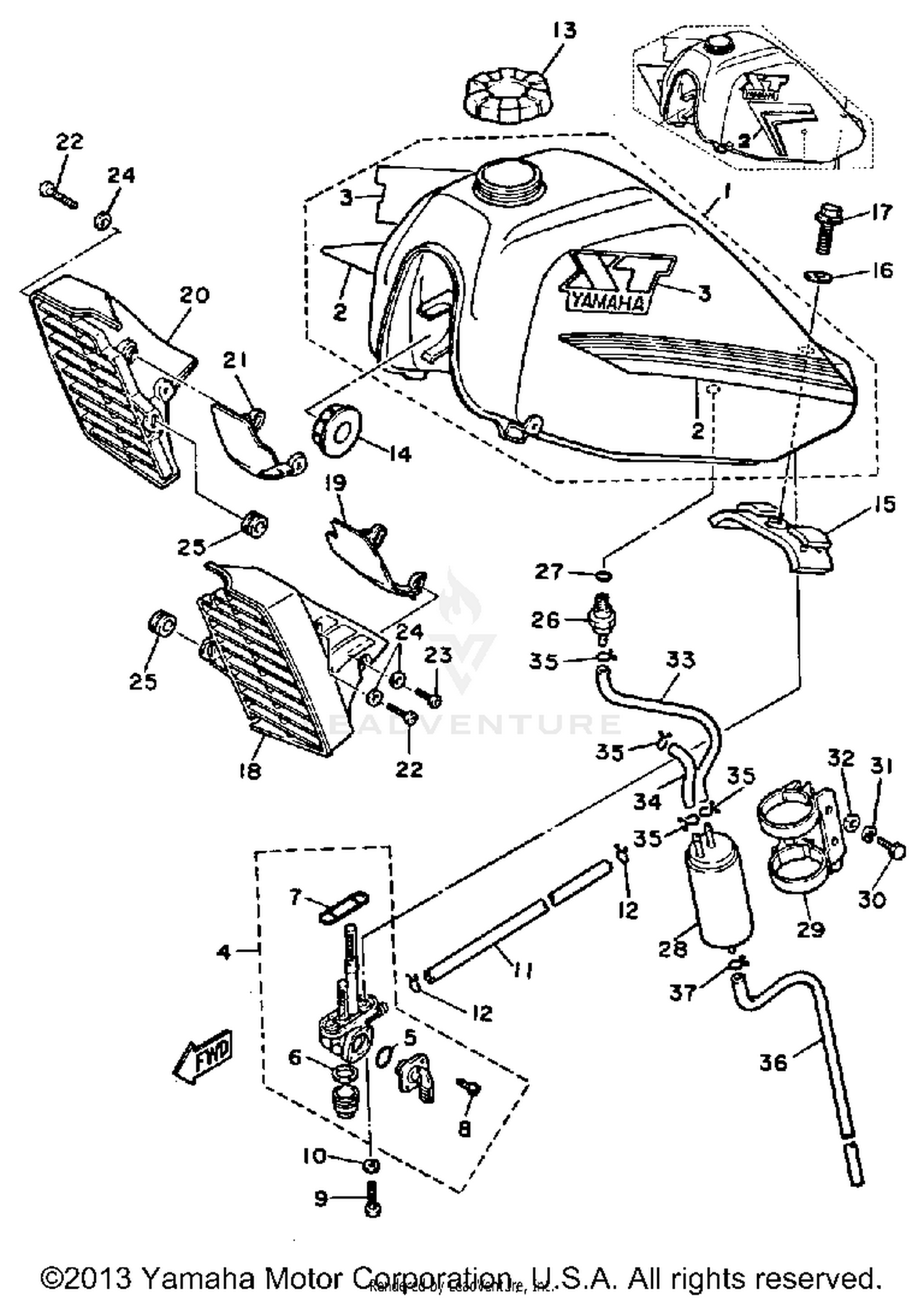

Fuel Tank Xt600lc - Nc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
49R-24110-00-03
|
$461.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
49R-24240-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET
49R-24240-10-00
|
$69.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 1
42U-24161-01-00
|
$40.99 | ||
|
Unavailable |
|||
|
#4
FUEL COCK ASSY 1
3FY-24500-00-00
Superseded by 3FY-24500-01-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, COCK
4X8-24534-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
4X8-24565-00-00
Superseded by 4X8-24565-10-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, LEVER FITTING
4X8-24535-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE (L110)
90445-103A3-00
Superseded by 90445-10752-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP ASSEMBLY
49R-24610-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#14
DAMPER, LOCATING 1
4L0-24181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, LOCATING 2
43F-24182-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#16
WASHER, SPEC''L SHAP
90209-07256-00
|
$2.95 | ||
|
Unavailable |
|||
|
#17
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCOOP, AIR 1
43F-2137W-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#19
GUIDE, AIR 1
43F-2137U-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#20
SCOOP, AIR 2
43F-2137X-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#21
GUIDE, AIR 2
43F-2137V-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#22
SCREW,SPEC'L SHAPE
90149-06197-00
Superseded by 90149-06315-00
|
$3.05 | ||
|
Unavailable |
|||
|
#23
SCREW
90149-06194-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#
SCREW, SPEC''L SHAPE
90149-06200-00
|
$0.85 | ||
|
Unavailable |
|||
|
#24
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET
90480-08216-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
ROLL OVER VALVE ASSY
20K-24180-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-10166-00
Superseded by 93210-11453-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CANISTER ASSEMBLY
20K-24170-00-00
|
$178.99 | ||
|
Unavailable |
|||
|
#29
CANISTER HOLDER
49R-24190-00-00
|
$15.90 | ||
|
Unavailable |
|||
|
#30
BOLT
97016-08016-00
Superseded by 97017-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOSE
90445-103A7-00
Superseded by 90445-10020-00
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE
90445-103A8-00
|
$2.37 | ||
|
Unavailable |
|||
|
#35
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#36
PIPE, FUEL 1
4A0-24311-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#37
CLIP
90467-11102-00
Superseded by 90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
