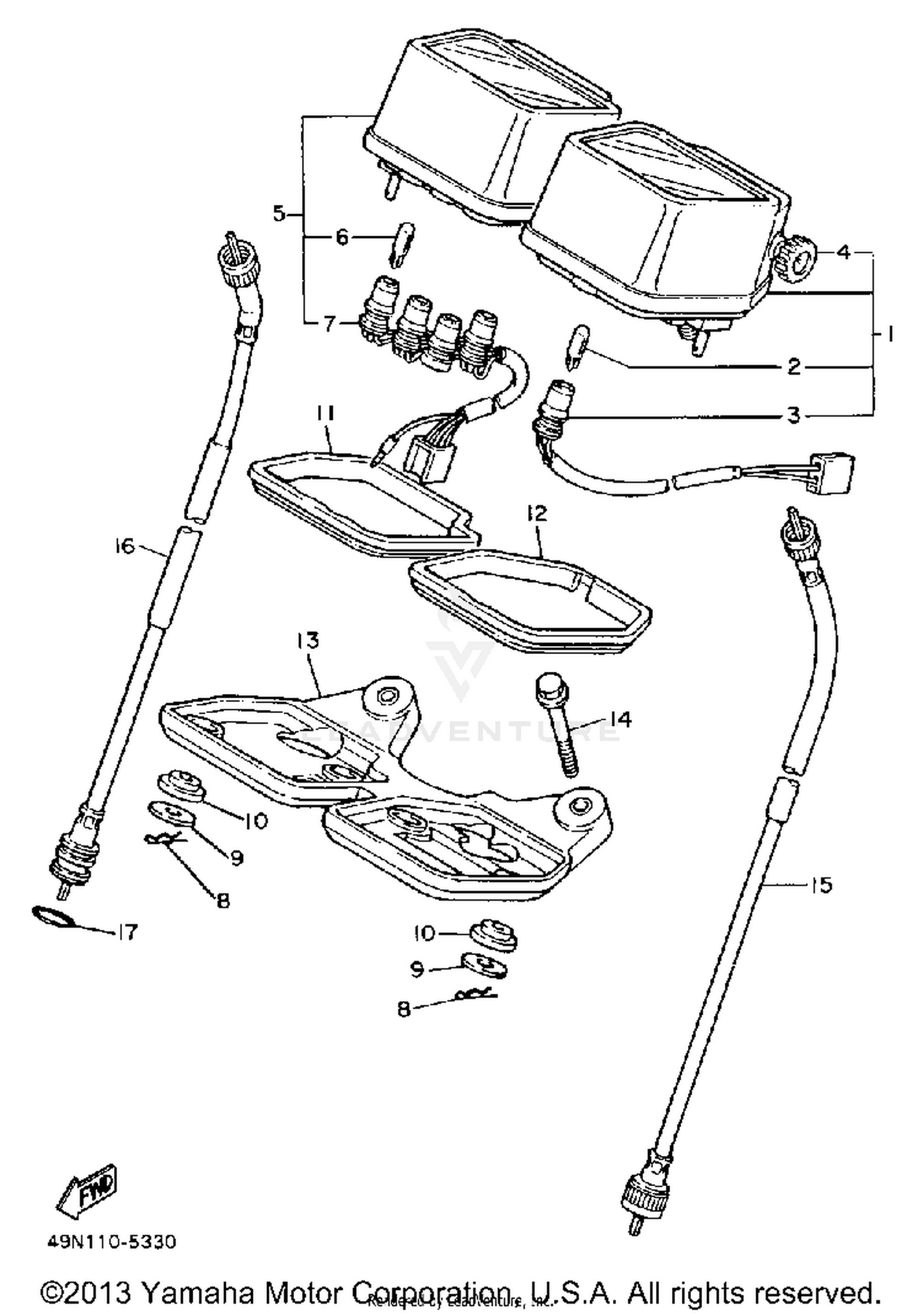

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
43F-83570-G1-00
|
$436.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
SOCKET CORD ASSY
2JX-83536-A0-00
Superseded by 5E2-83509-20-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
KNOB, TRIP METER
5Y1-83578-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
TACHOMETER ASSEMBLY (49N-83540-
2NF-83540-00-00
|
$404.99 | ||
|
Unavailable |
|||
|
#6
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Unavailable |
|||
|
#7
SOCKET CORD ASSEMBLY (30X-835
5Y1-83520-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#8
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-05033-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER 2
1M1-83526-00-00
Superseded by 1M1-83526-01-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
5Y1-83541-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER
5Y1-83513-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, METER
5Y1-83519-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95816-06040-00
Superseded by 95817-06040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPDMTR, CABLE
34X-83550-01-00
Superseded by 16M-83550-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TACHOMETER CABLE ASS
34L-83560-01-00
Superseded by 4PT-83560-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
