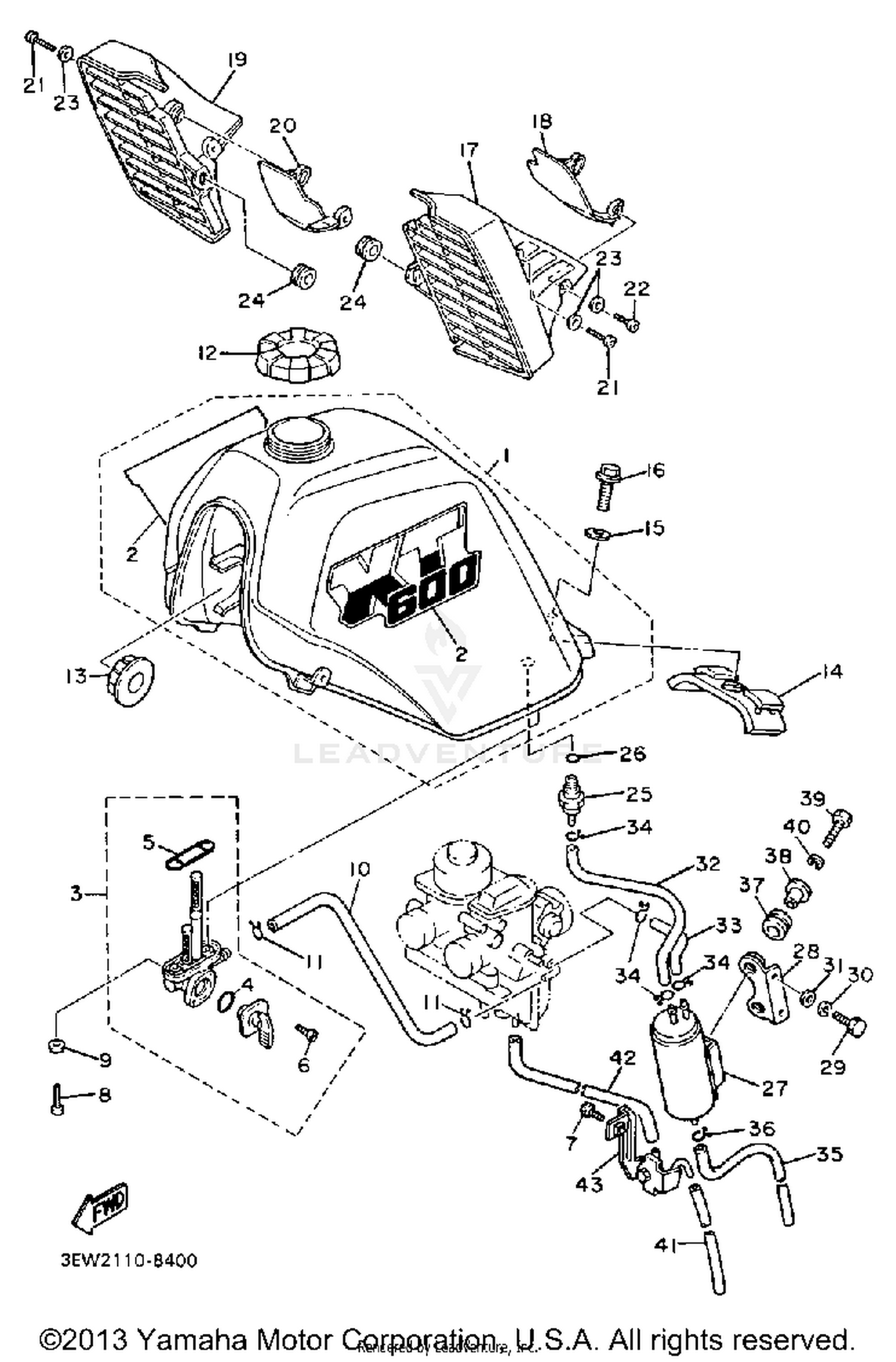

Fuel Tank (non-california Model) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
43F-24110-00-07
|
$749.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
47N-24240-00-00
|
$83.56 | ||
|
Unavailable |
|||
|
#3
FUEL COCK ASSY 1
3FY-24500-00-00
Superseded by 3FY-24500-01-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, COCK
4X8-24534-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-08216-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE (L110)
90445-103A3-00
Superseded by 90445-10752-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP ASSEMBLY
34L-24610-02-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 1
4L0-24181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, LOCATING 2
43F-24182-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#15
WASHER, SPEC''L SHAP
90209-07256-00
|
$2.95 | ||
|
Unavailable |
|||
|
#16
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCOOP, AIR 1
43F-2137W-10-00
|
$60.99 | ||
|
Unavailable |
|||
|
#18
GUIDE, AIR 1
43F-2137U-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#19
SCOOP, AIR 2
43F-2137X-10-00
|
$60.99 | ||
|
Unavailable |
|||
|
#20
GUIDE, AIR 2
43F-2137V-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#21
SCREW,SPEC'L SHAPE
90149-06197-00
Superseded by 90149-06315-00
|
$3.05 | ||
|
Unavailable |
|||
|
#22
SCREW, SPEC''L SHAPE
90149-06200-00
|
$0.85 | ||
|
Unavailable |
|||
|
#23
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
