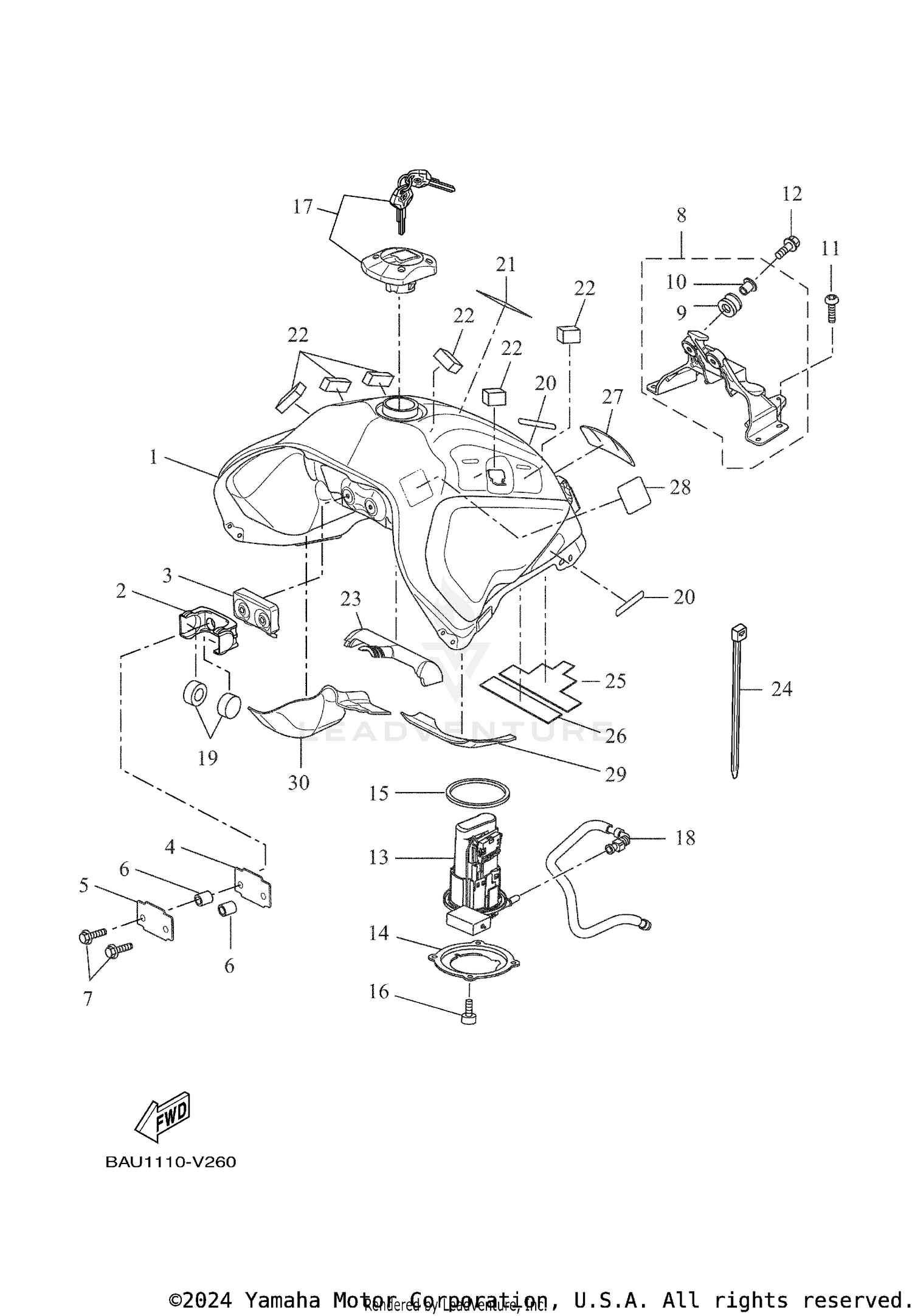

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
BW3-24110-01-P2
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FUEL TANK COMP.
BW3-24110-01-P1
Superseded by BW3-24110-02-P1
|
$721.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, TANK FITTIN
BW3-2412Y-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, LOCATING 1
BW3-24181-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 2
BW3-24182-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPECIAL
BW3-24186-00-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-06553-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
TANK BRACKET ASSY 2
BW3-24105-01-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-18018-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-06136-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
90111-06051-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#13
FUEL PUMP COMP.
BW3-13907-00-00
Superseded by BW3-13907-10-00
|
$300.99 | ||
|
Unavailable |
|||
|
#14
BRACKET, FUEL PUMP
BW3-24491-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
1RC-24486-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91312-05010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP ASSY
BW3-24602-00-00
|
$242.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE, FUEL 1
BW3-13971-01-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, LOCATING 1
3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOOK, SIDE COVER 1
BW3-2411G-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER
5UM-21717-E0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, PLATE
90520-05025-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, LOCATING 4
BW3-24184-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-65001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PROTECTOR
BW3-24595-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PROTECTOR
BW3-24595-10-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PROTECTOR, FUEL TANK
BW3-24141-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAL 1
3FY-21575-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER, PLATE 1
BW3-2414H-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER, PLATE 2
BW3-2414J-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
