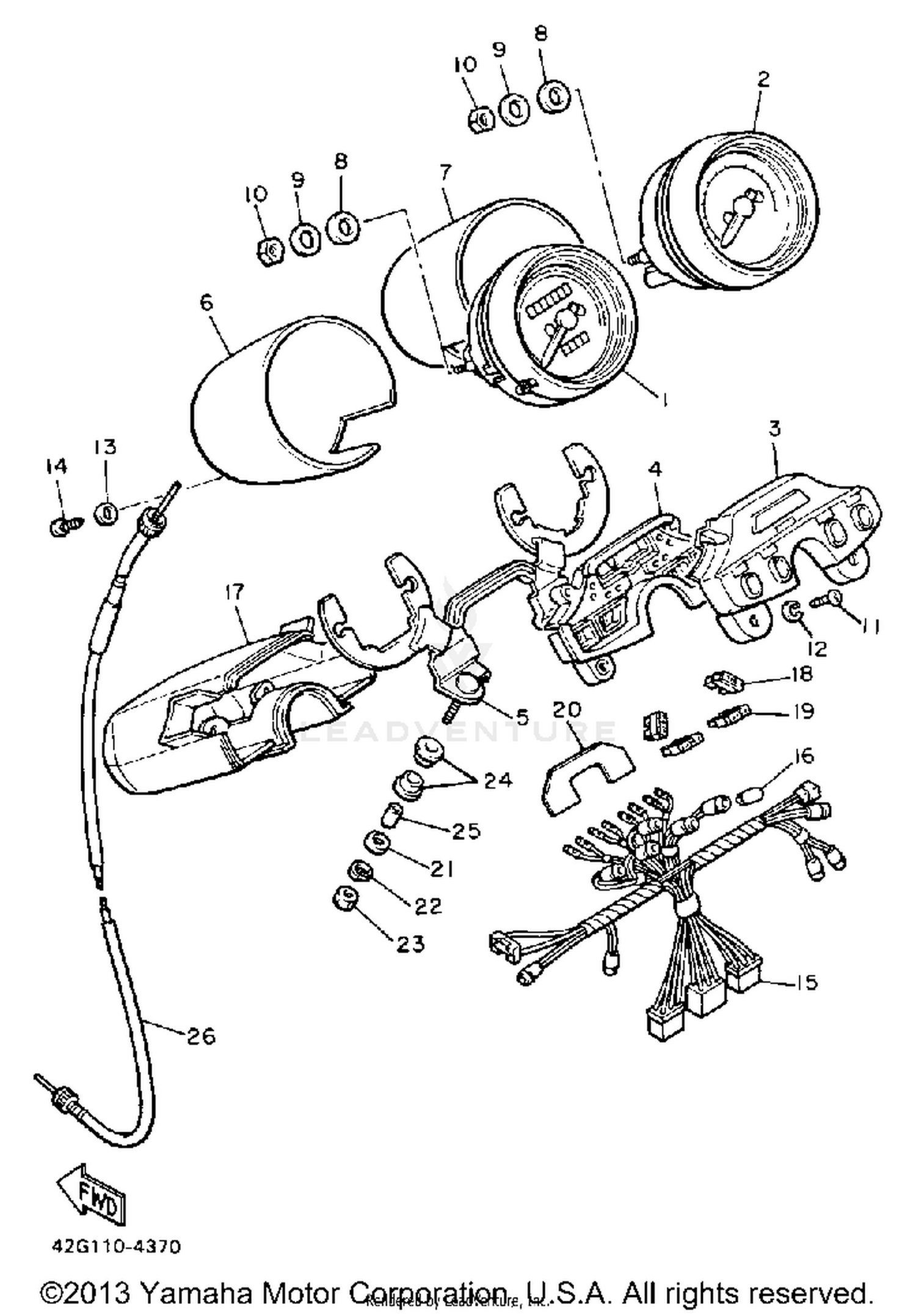

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
42H-83570-A0-00
Superseded by 3LP-83570-00-00
|
$422.99 | ||
|
Unavailable |
|||
|
#2
TACHOMETER ASY
42H-83540-01-00
Superseded by 1AT-83540-09-00
|
$246.99 | ||
|
Unavailable |
|||
|
#3
CASE UPPER
42X-8353G-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#4
CASE, INNER
1AA-8353H-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#5
BRACKET, METER
42X-83519-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#6
COVER, SPEEDOMETER
42X-83507-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, TACHOMETER
42X-83508-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
1FG-83523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-05031-00
Superseded by 90201-05725-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Unavailable |
|||
|
#14
SCREW, TAPPING
90164-04009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SOCKET CORD ASSEMBLY
42H-83509-00-00
|
$96.98 | ||
|
Unavailable |
|||
|
#16
BULB (12V-3W)
42X-83517-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, METER
42X-83559-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#18
FUSE (10A-BL)
42X-82151-20-00
Superseded by 42X-82151-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE (15A-BL)
36Y-82151-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, METER 2
55R-83579-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#21
WASHER
92906-06200-00
Superseded by 92907-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95316-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER
584-83541-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-06249-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPEEDOMETER CABLE
57A-83550-00-00
Superseded by 3LP-83550-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
