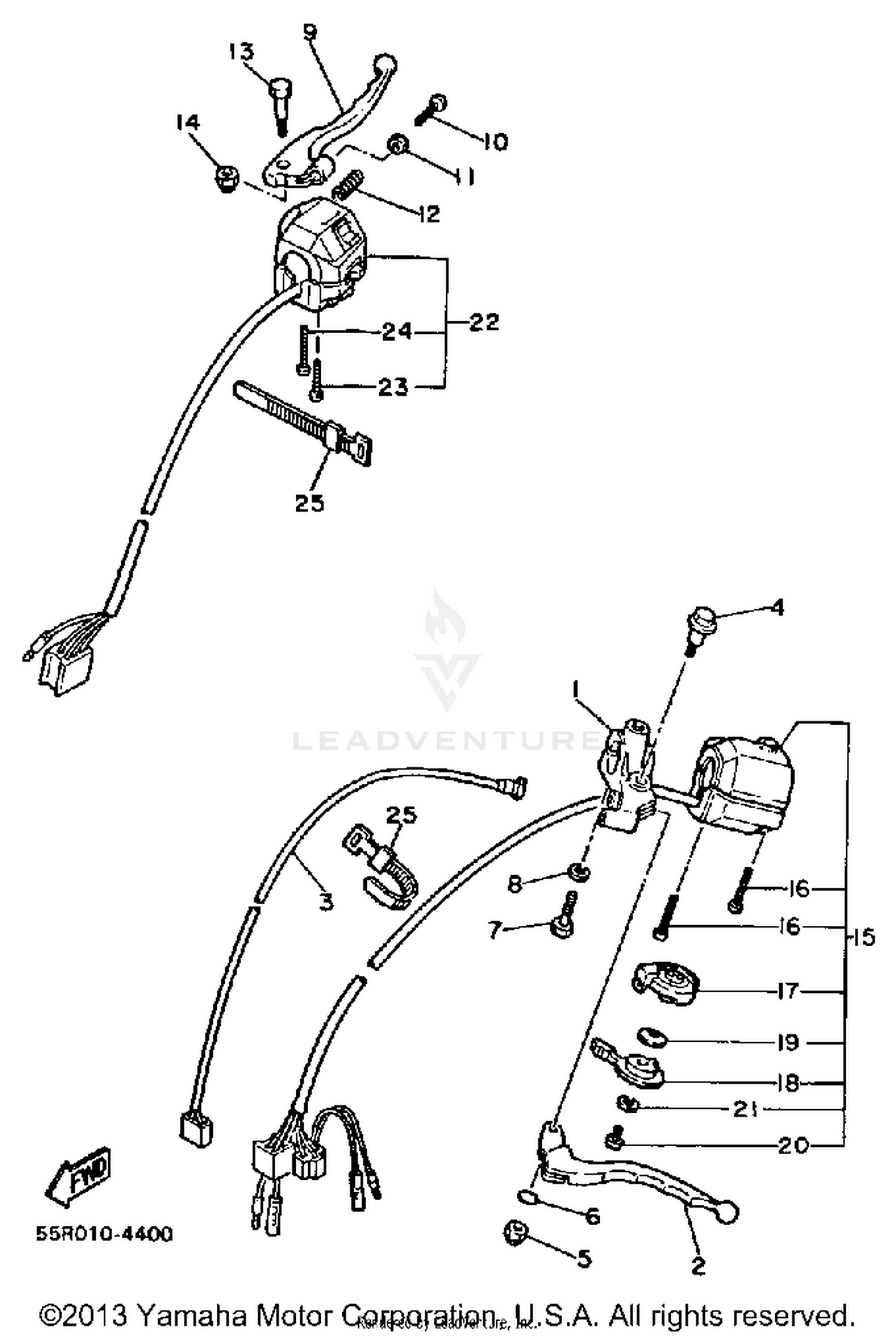

Handle Switch Lever Xv1000n Nc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, LEVER 1
10M-82911-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER 1
57A-83912-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH
3Y6-82917-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#4
BOLT
90109-06797-00
Superseded by 90109-061F3-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-11368-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97006-06022-00
Superseded by 97007-06022-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER 2
57A-83922-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
90149-06131-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90170-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, COMPRESSION
90501-10312-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90109-06465-00
Superseded by 90109-06577-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
SWITCH, HANDLE 3
2UJ-83973-00-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98506-05035-00
Superseded by 98507-05035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, STARTER
10M-83942-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, STARTER
10M-83941-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
90209-10131-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
SWITCH, HANDLE 4
42H-83972-01-00
|
$348.99 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98506-05040-00
Superseded by 98507-05040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98506-05045-00
Superseded by 98507-05045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
