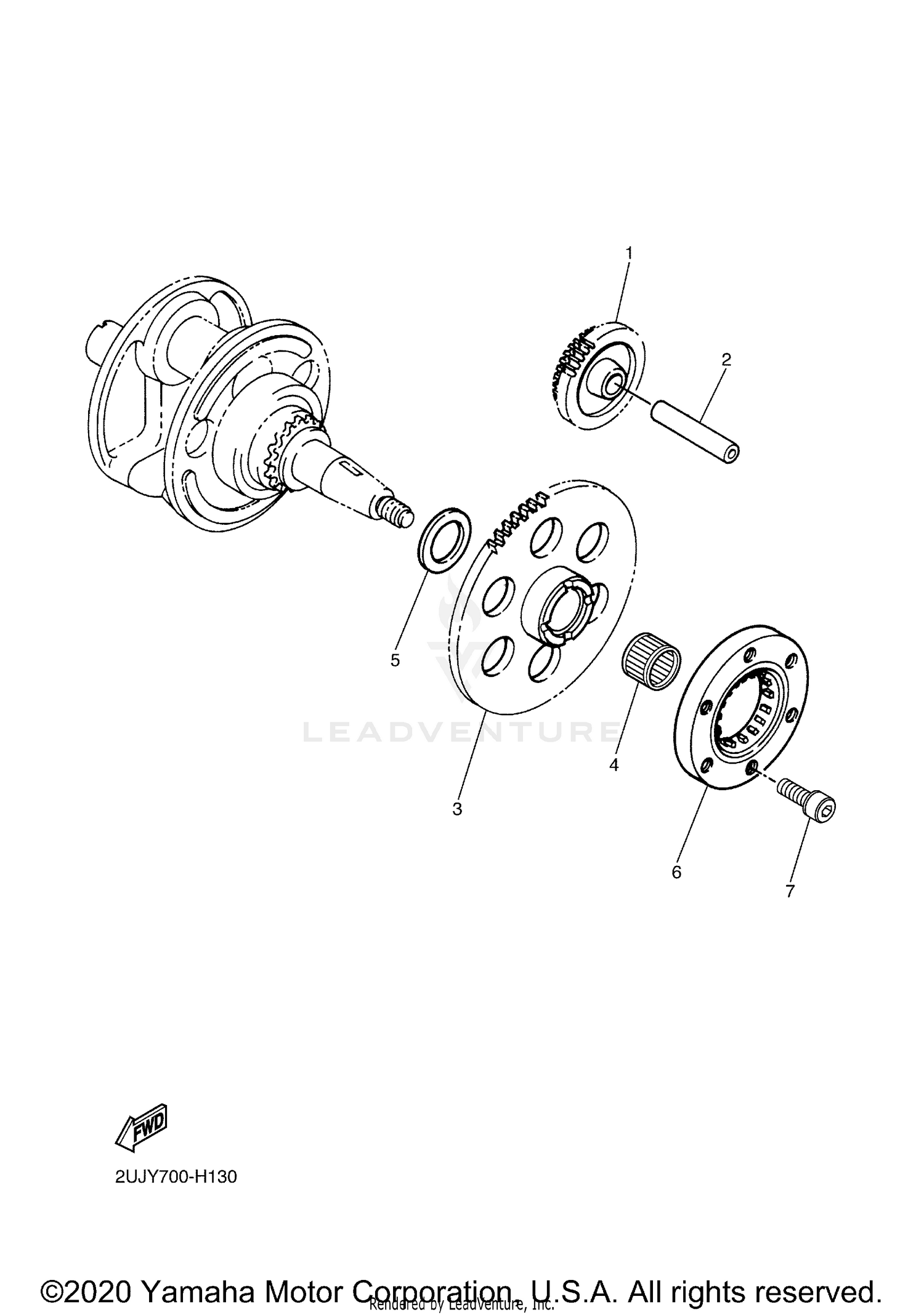

2020 Yamaha XV250 V STAR 250 STARTER CLUTCH OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IDLER 1
2UJ-15512-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT 1
5H0-15521-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, IDLER 2
5KR-15517-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93310-22559-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-25291-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STARTER ONE-WAY ASSY
51Y-15590-01-00
|
$275.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-08080-00
Superseded by 91314-08020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
