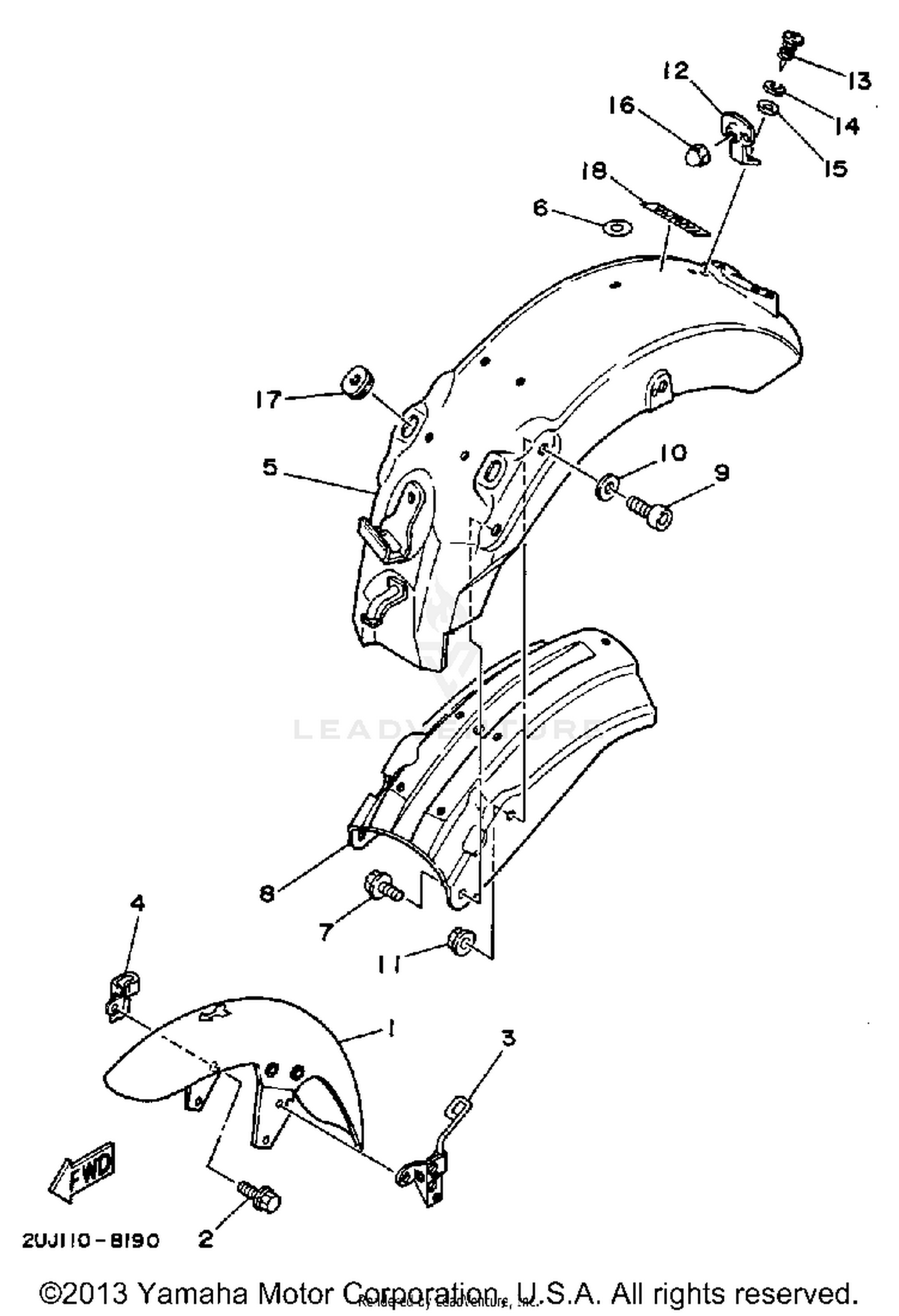

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
2UJ-21510-00-HV
|
$117.99 | ||
|
Unavailable |
|||
|
#
FRONT FENDER COMP.
2UJ-21510-00-0H
Superseded by 2UJ-21510-00-6G
|
$97.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLG.(SMALL HEAD)
95023-08012-00
Superseded by 95024-08012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, WIRE 1
2GV-21597-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#4
HOLDER, WIRE 2
2GV-21598-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#5
FENDER, REAR
2UJ-21610-00-HV
|
$253.99 | ||
|
Unavailable |
|||
|
#
REAR FENDER COMP.
2UJ-21610-00-0H
Superseded by 2UJ-21610-00-PC
|
$292.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL 2
2UJ-21735-00-00
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-10020-00
Superseded by 95817-10020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
REINF. COMP.
2UJ-21670-20-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
91316-10035-00
Superseded by 91317-10035-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92906-10600-00
Superseded by 92907-10600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, REFLECTOR
2UJ-21641-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
95306-05800-00
Superseded by 95307-05800-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-15061-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
EMBLEM, YAMAHA
99235-00020-00
Superseded by 99245-00080-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
