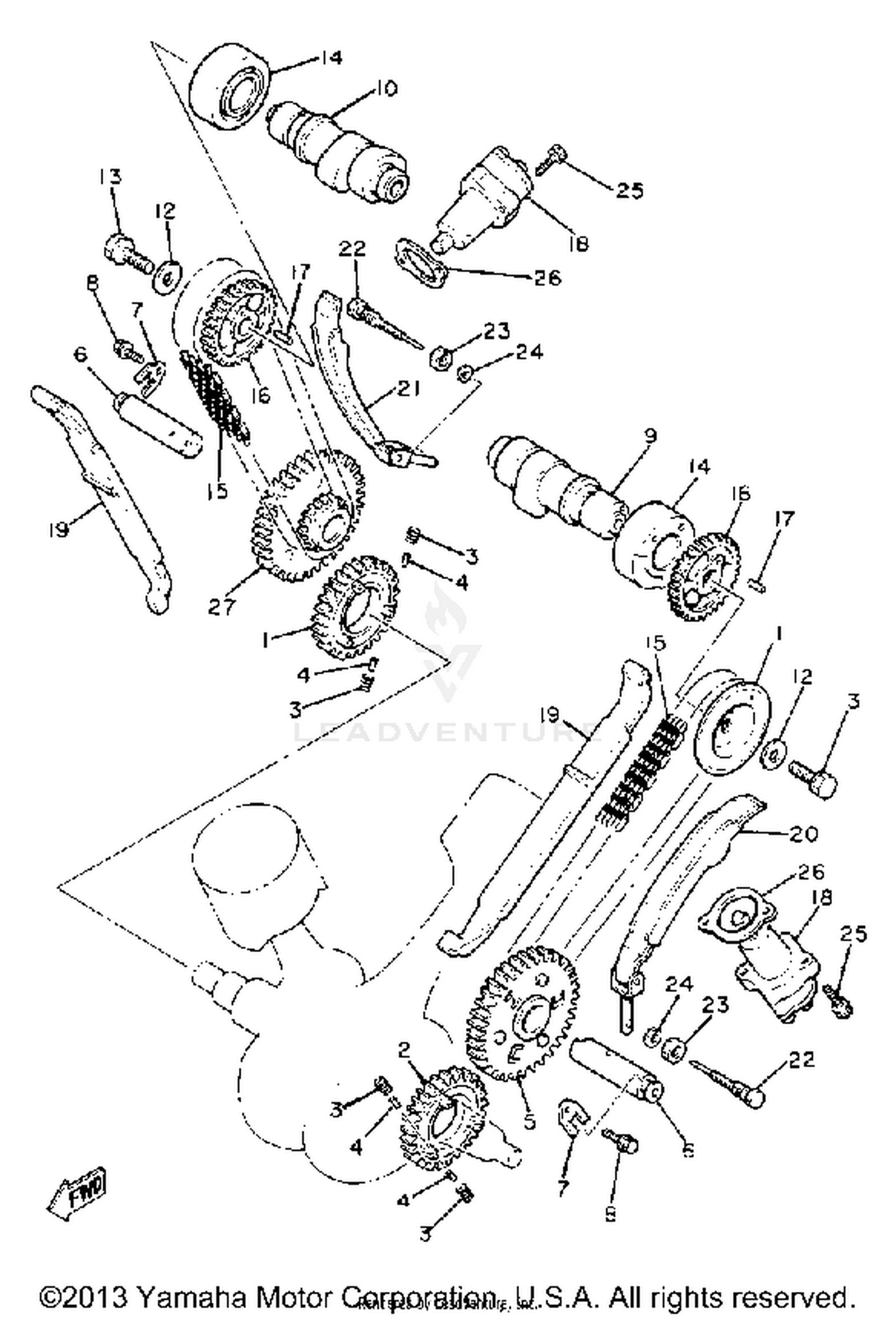

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, DRIVE (35T)
4X7-11536-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#2
GEAR, BREAKER DRIVE (35T)
4X7-11534-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, COMPRESSION
90501-21133-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93605-10090-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAM CHAIN SPROCKET ASSEMBLY 1
4X7-11540-01-00
Superseded by 4X7-11540-02-00
|
$247.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, TENSIONER
4X7-12247-01-00
Superseded by 5EL-12247-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-06205-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-06154-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAMSHAFT 1 (4X7-12171-00)
4X7-12171-01-00
|
$249.99 | ||
|
Unavailable |
|||
|
#10
CAMSHAFT 2 (4X7-12181-00)
4X7-12181-01-00
|
$316.99 | ||
|
Unavailable |
|||
|
#11
PLATE, BREATHER 2
4X7-11145-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-10774-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-10303-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, SOLID
90380-25125-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CHAIN
94590-45098-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPROCKET, CAM CHAIN (28T)
4X7-12176-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#17
PIN, DOWEL
93604-10011-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TENSIONER ASSEMBLY, CAM CHAIN
4X7-12210-01-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE, STOPPER 1
4X7-12231-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUIDE, STOPPER 2
4X7-12241-00-00
|
$104.99 | ||
|
Unavailable |
|||
|
#21
GUIDE, STOPPER 3
4X7-12221-00-00
|
$79.51 | ||
|
Unavailable |
|||
|
#22
BOLT
90109-08592-00
|
$4.80 | ||
|
Unavailable |
|||
|
#23
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
91311-06025-00
Superseded by 91314-06025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, TENSIONER CASE
4DW-12213-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAM CHAIN SPROCKET ASSEMBLY 2
4X7-11550-00-00
Superseded by 4X7-11550-01-00
|
$247.99 | ||
|
Unavailable |
|||
