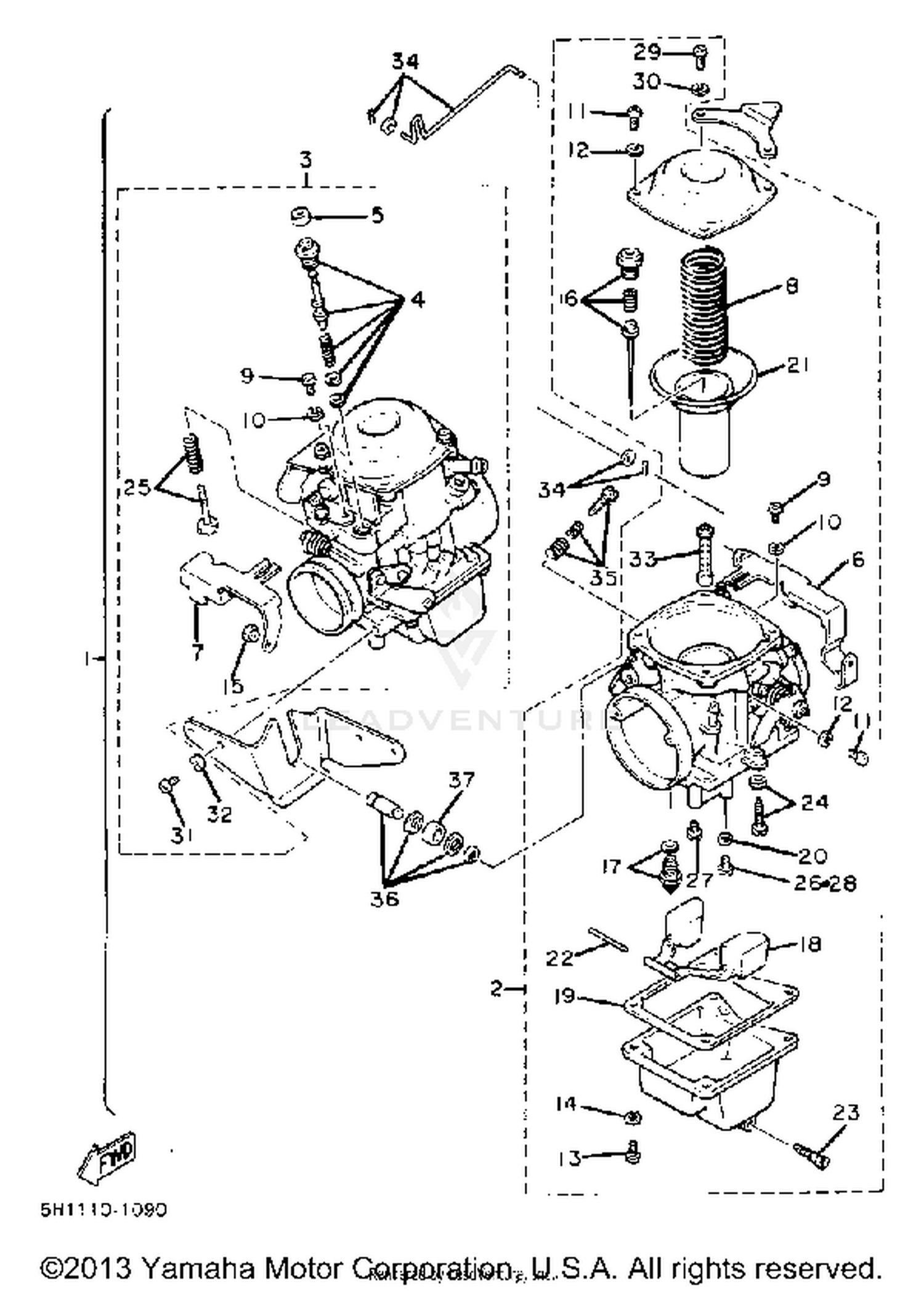

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
5H1-14900-00-00
|
|||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 1
5H1-14901-00-00
|
$406.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 2
5H1-14902-00-00
|
$522.99 | ||
|
Unavailable |
|||
|
#4
PLUNGER, STARTER
4X7-14371-01-00
|
$115.99 | ||
|
Unavailable |
|||
|
#5
COVER, PLUNGER CAP
4H7-14173-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#6
LEVER, STARTER 1
4X7-14975-00-00
|
$16.54 | ||
|
Unavailable |
|||
|
#7
LEVER, STARTER 2
4X7-14976-00-00
|
$19.54 | ||
|
Unavailable |
|||
|
#8
SPRING, DIAPHRAGM
4X7-14933-10-00
|
$15.04 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Unavailable |
|||
|
#15
BUSH
4X7-14998-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#
NEEDLE
4X7-14916-22-00
|
$41.34 | ||
|
Unavailable |
|||
|
#17
NEEDLE VALVE ASSEMBLY (4X7-14
10L-14390-02-00
|
$63.99 | ||
|
Unavailable |
|||
|
#18
FLOAT
10L-14985-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#19
GASKET, FLOAT CHAMBER
4X7-14984-01-00
|
$32.99 | ||
|
Unavailable |
|||
|
#20
WASHER, MAIN JET
4H7-14945-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
DIAPHRAGM ASSEMBLY
4X7-14940-01-00
|
$106.99 | ||
|
Unavailable |
|||
|
#22
PIN, FLOAT
4H7-14186-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#23
PLUG, DRAIN
4X7-14191-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#24
SCREW, THROTTLE
4X7-14321-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#25
SCREW, THROTTLE STOP SPRING
4X7-14121-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#26
JET, MAIN
4X7-14925-26-00
|
$20.69 | ||
|
Unavailable |
|||
|
#27
JET
4X7-14948-41-00
|
$13.49 | ||
|
Unavailable |
|||
|
#28
JET, MAIN (#124)
4X7-14925-24-00
|
$19.12 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN HEAD
98580-05012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Unavailable |
|||
|
#33
NOZZLE, MAIN
4X7-14921-32-00
|
$36.91 | ||
|
Unavailable |
|||
|
#34
CONNECTOR
4X7-14188-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#35
SCREW, ADJUST
4X7-14522-01-00
|
$6.99 | ||
|
Unavailable |
|||
|
#36
WASHER
4X7-14962-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#37
ROLLER
4X7-14267-00-00
|
$7.52 | ||
|
Unavailable |
|||
