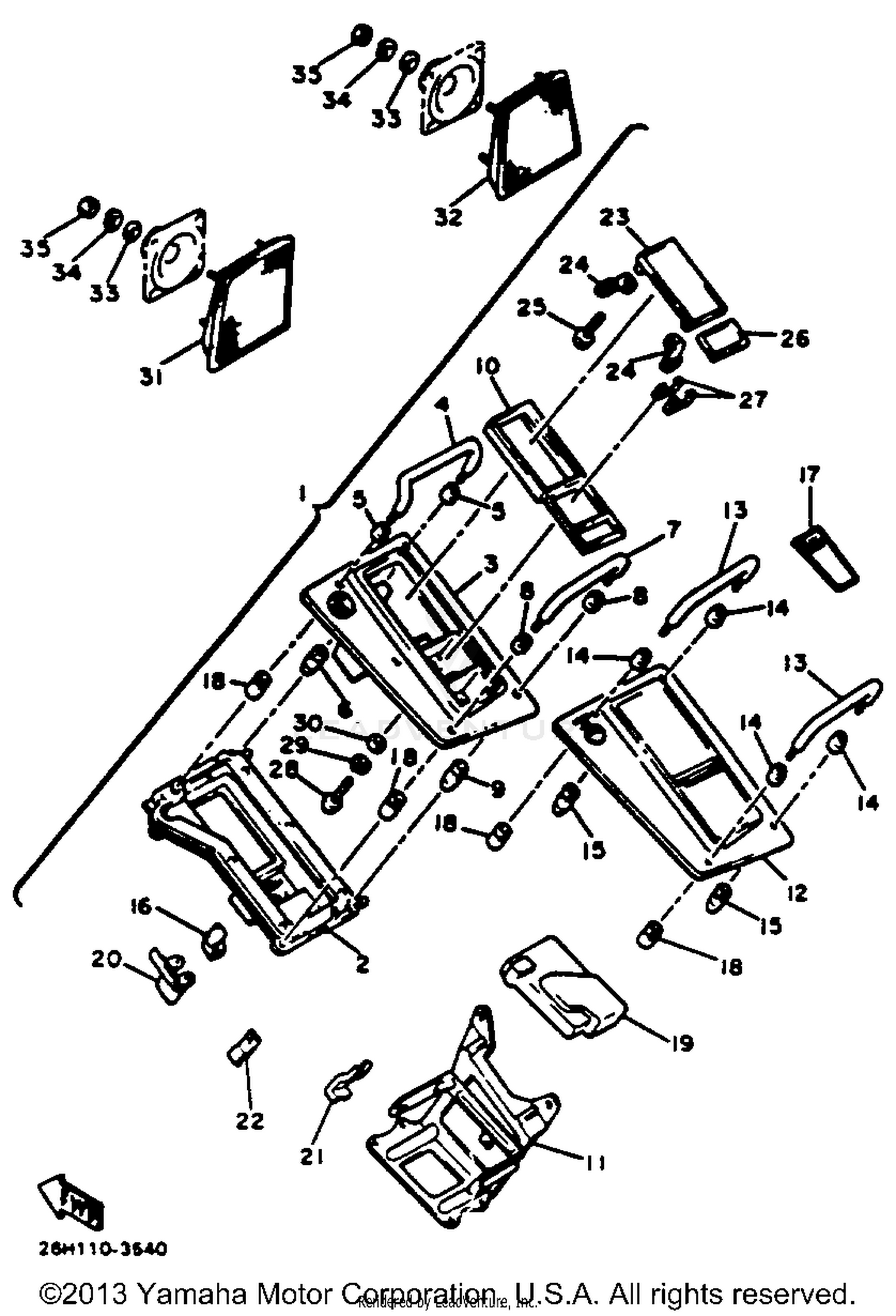

Audio 1 Components Optional Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AUDIO COWLING FITTING SET
26-HW283-A0-00
|
|||
|
Unavailable |
|||
|
#2
TERMINAL PANEL ASSEMBLY
26H-28210-00-00
|
$197.99 | ||
|
Unavailable |
|||
|
#3
PANEL, accessory 1
26H-28212-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#4
HANDLE, carrying 1
26H-28214-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#5
WASHER, special
26H-28215-00-00
|
$3.55 | ||
|
Unavailable |
|||
|
#6
NUT, special
26H-28225-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HANDLE, carrying 2
26H-28224-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#8
WASHER, special
26H-28215-00-00
|
$3.55 | ||
|
Unavailable |
|||
|
#9
NUT, special
26H-28225-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#10
DAMPER, 1
26H-28217-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#11
BRACKET, accessory 1
26H-28232-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#12
COVER 1
26H-28219-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#13
HANDLE, carrying 2
26H-28224-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#14
WASHER, special
26H-28215-00-00
|
$3.55 | ||
|
Unavailable |
|||
|
#15
NUT, special
26H-28225-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#16
PLATE, spring
26H-28255-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
EMBLEM 1
26H-28291-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#18
NUT, special 2
26H-28244-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
COVER 3
26H-28239-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#20
CLAMP, connecting
26H-28265-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#21
CLAMP, connecting 2
26H-28266-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#22
CLAMP
90462-12131-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
PANEL, blind 1
26H-28213-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#24
HOOK 1
26H-28257-00-00
|
$6.02 | ||
|
Unavailable |
|||
|
#25
SCREW, TAPPING (97702-40508)
97701-40508-00
|
$0.70 | ||
|
Unavailable |
|||
|
#26
PANEL, blind 2
26-H2822-30-00
|
|||
|
Unavailable |
|||
|
#27
HOOK 2
26H-28258-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98580-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Unavailable |
|||
|
#31
GRILLE, speaker 1
26H-88163-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#32
GRILLE, speaker 2
26H-88173-00-00
|
$141.99 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
90201-05775-00
|
$2.60 | ||
|
Unavailable |
|||
|
#34
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT
95301-05600-00
Superseded by 95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
