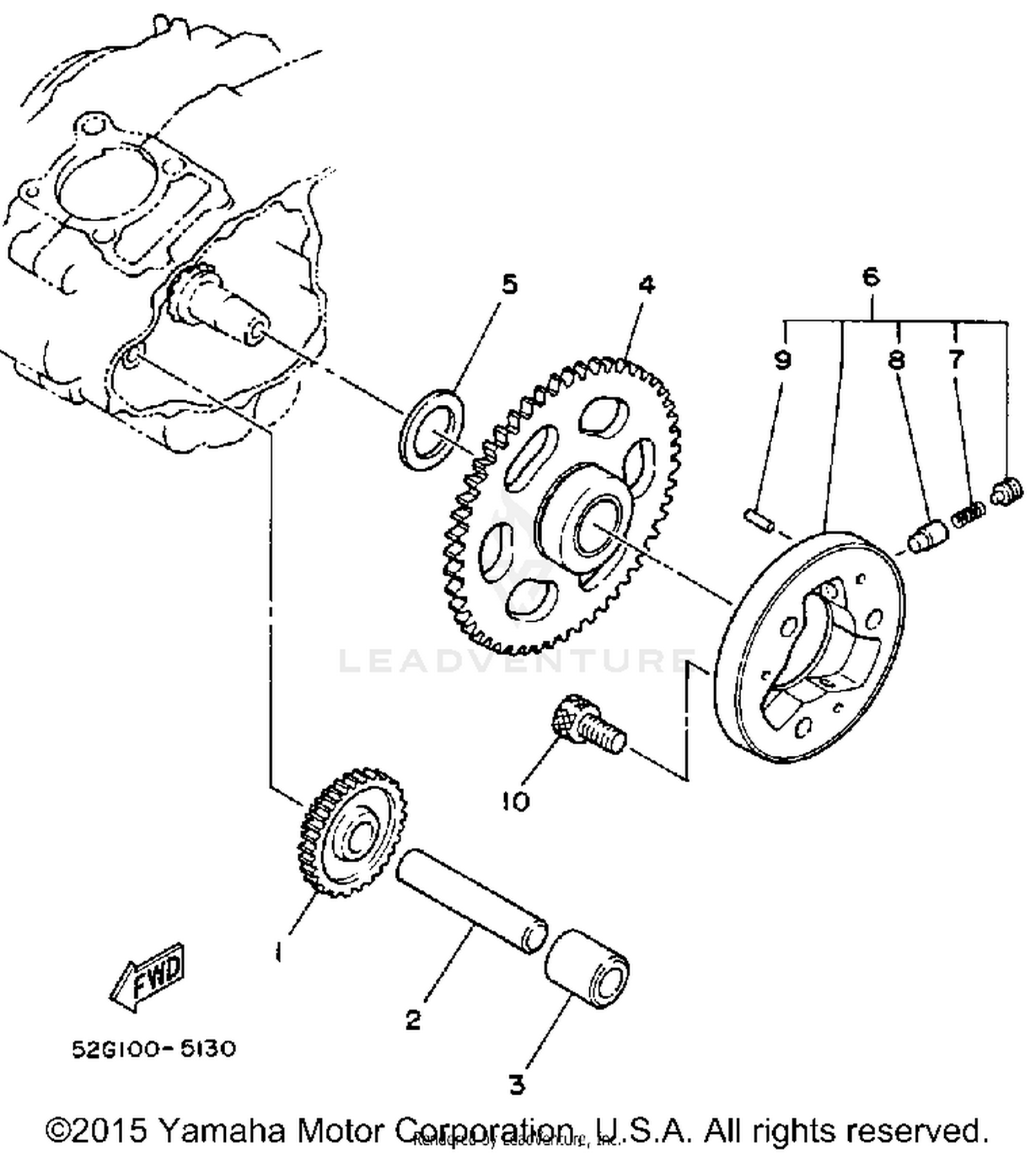

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IDLER 1 (41T/10T)
2HT-15512-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT 1
24W-15521-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-125H3-00
|
$5.49 | ||
|
Unavailable |
|||
|
#4
GEAR, IDLER 2 (56T)
5H0-15517-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE (0.9T)
90201-256K6-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, PLATE (1.3T)
4A0-17216-00-12
Superseded by 90201-256K7-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, PLATE (0.9T)
4A0-17216-00-08
Superseded by 90201-256K6-00
|
$3.43 | ||
|
Unavailable |
|||
|
#6
STARTER CLUTCH OUTER ASSY
4H7-15580-10-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-04596-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, STARTER CLUTCH SPRING
341-15583-05-00
Superseded by 1J7-15583-01-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
93615-12088-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91316-08016-00
Superseded by 91317-08016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
