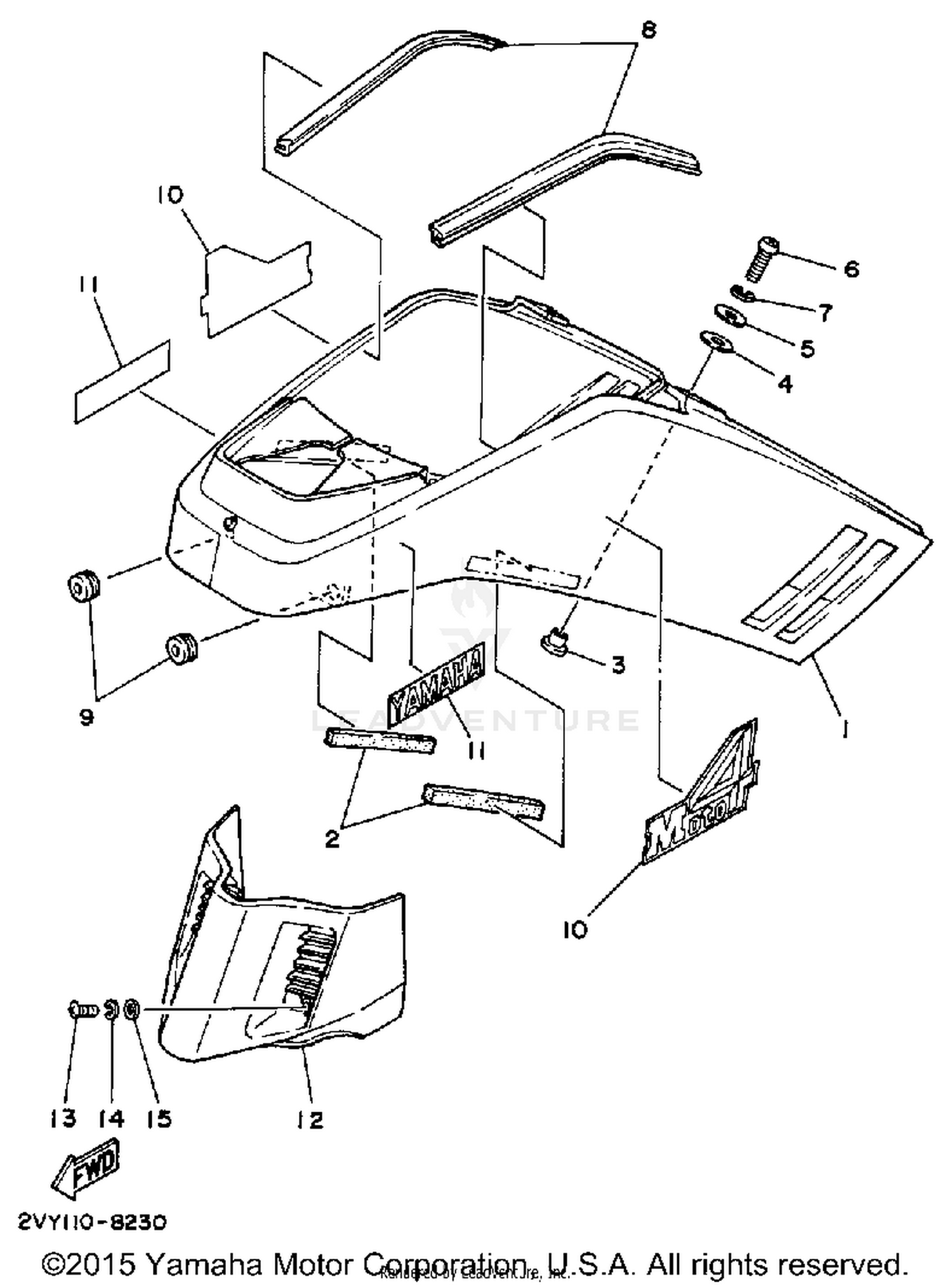

1988 Yamaha YFM200DXU SIDE COVER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SIDE COVER ASSEMBLY 1
1NU-21710-30-00
|
$165.99 | ||
|
Unavailable |
|||
|
#
SIDE COVER ASSEMBLY 1
2FH-21710-00-00
|
$228.99 | ||
|
Unavailable |
|||
|
#2
DAMPER
52H-21746-00-00
Superseded by 4YR-21649-00-00
|
$2.25 | ||
|
Unavailable |
|||
|
#3
COLLAR
90387-076L8-00
Superseded by 90387-062X0-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-104G5-00
|
$4.80 | ||
|
Unavailable |
|||
|
#5
WASHER, PLATE
90201-06073-00
Superseded by 90201-06086-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
MOLE, SIDE COVER 1
52H-2171L-00-00
Superseded by 4WV-2171L-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-13428-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
EMBLEM 1
2VA-21781-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#11
EMBLEM, YAMAHA
99241-00025-00
Superseded by 99241-00100-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM, YAMAHA
99244-00025-00
Superseded by 99244-00100-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, TOP
52H-2171A-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98586-05016-00
Superseded by 90157-05M19-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92906-05600-00
Superseded by 92907-05600-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
