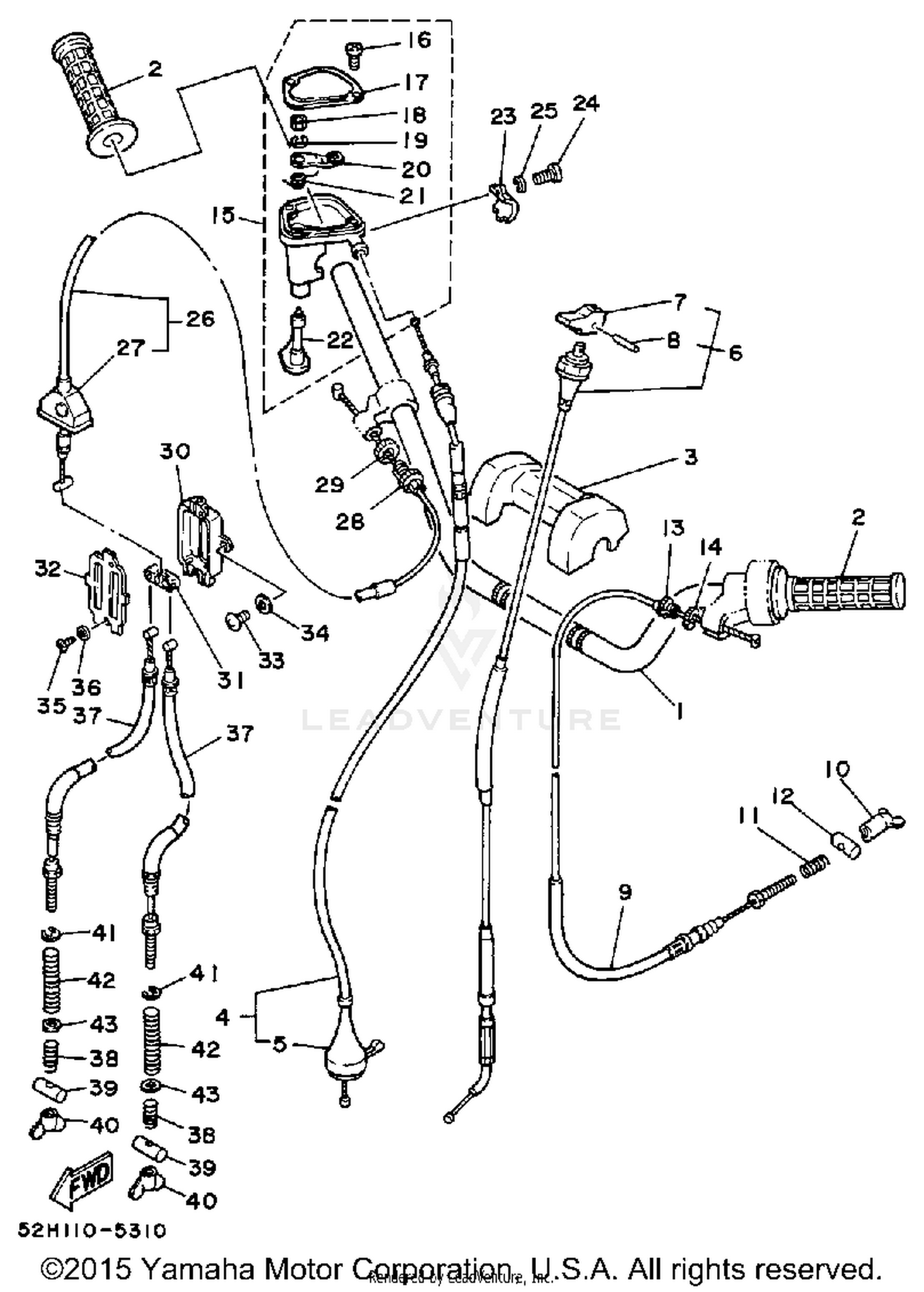

Handlebar - Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
52H-26111-00-00
|
$47.11 | ||
|
Unavailable |
|||
|
#2
GRIP
3GB-26241-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, HDLBR
52H-26124-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#4
CABLE, THROTTLE 1
52H-26311-00-00
|
$39.95 | ||
|
Unavailable |
|||
|
#5
CAP, RUBBER
21V-26329-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#6
CABLE, STARTER 1
52H-26331-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
END, CABLE 3
21V-26374-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, SPRING
91609-30010-00
Superseded by 91690-30010-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE,BRAKE
52H-26341-00-00
Superseded by 20E-26341-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#10
NUT, ADJUSTING
20E-26343-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-10782-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
THROTTLE LEVER ASSEMBLY
21V-26250-01-00
|
$127.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98506-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, GEAR
21V-2628F-00-00
|
$11.97 | ||
|
Unavailable |
|||
|
#18
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
ARM, THROTTLE
21V-2625H-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#21
SPRING, TORSION
90508-10597-00
|
$10.49 | ||
|
Unavailable |
|||
|
#22
LEVER, THROTTLE
21V-2625G-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#23
HOLDER, LEVER LOWER 1
38V-82913-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98506-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92906-05100-00
Superseded by 92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CABLE, BRAKE 4
1YW-26373-01-00
Superseded by 1YW-26373-02-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOOT
52H-26362-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Unavailable |
|||
|
#30
HOUSING, BRAKE LINK
52H-26371-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
JOINT, CABLE
52H-26347-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLATE
52H-2631G-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER
92902-03600-00
Superseded by 92907-03600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CABLE, BRAKE
52H-26361-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING, COMPRESSION
90501-10782-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
PIN
90249-12008-00
|
$7.49 | ||
|
Unavailable |
|||
|
#40
NUT, WING
90175-06019-00
Superseded by 90175-06013-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#41
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPRING, COMPRESSION
90501-123A0-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER
90209-06265-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
