1987 Yamaha YFM225T MOTO-4 Crankcase OEM Parts

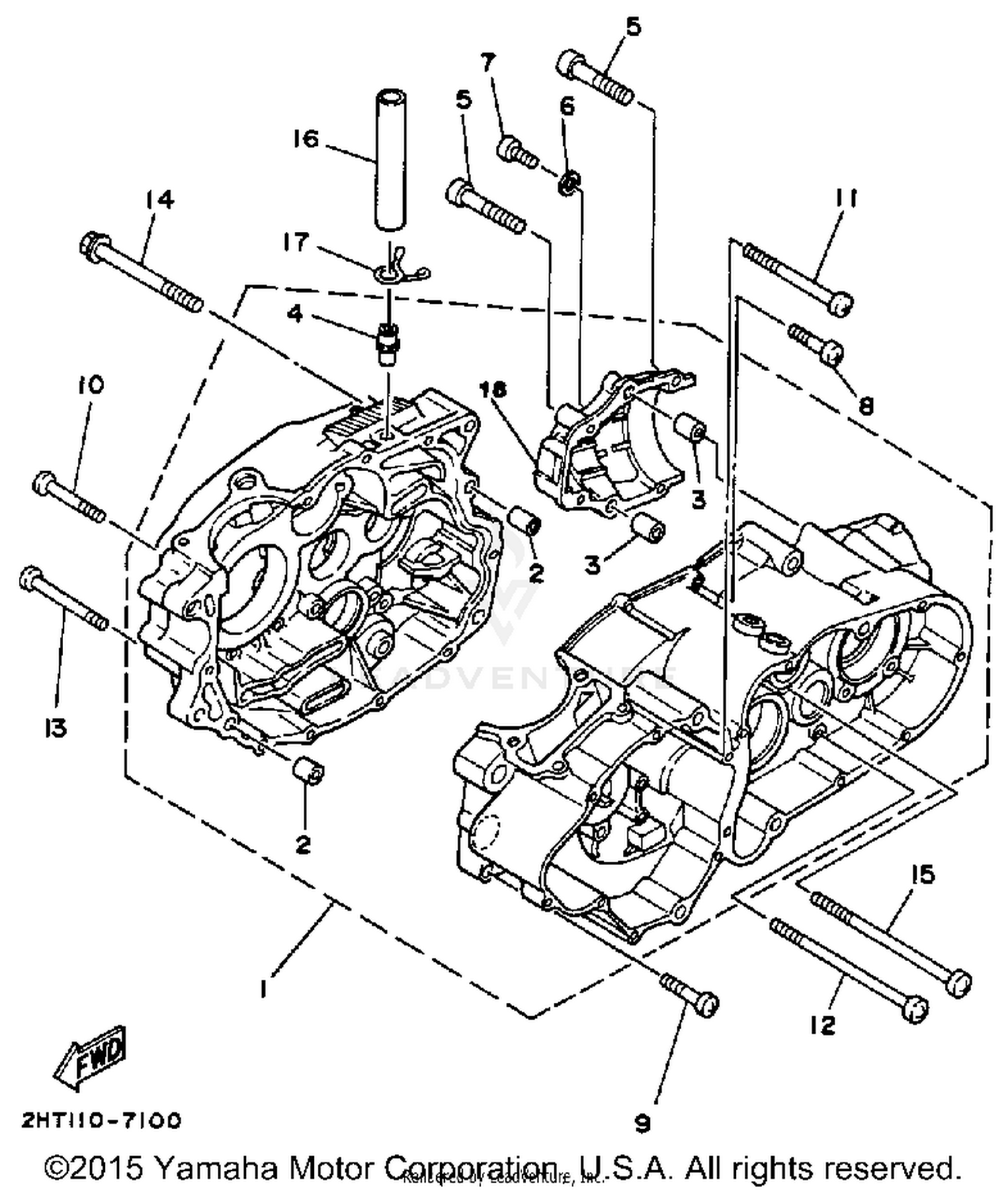

Crankcase Diagram

Item	MSRP	Qty
#1 CRANKCASE ASSEMBLY 2HT-15100-00-00	$697.99
Unavailable
#2 PIN, DOWEL 99510-12016-00 Superseded by 99530-12016-00	$4.70
Available to order. Add to View Price
#3 PIN, DOWEL 99530-10014-00 Superseded by 99530-10114-00	$2.40
Available to order. Add to View Price
#4 PIPE, BREATHER 2 59V-11167-00-00	$10.49
Available to order. Add to View Price
#5 BOLT, HEXAGON SOCKET HEAD 91311-06040-00 Superseded by 91314-06040-00	$7.49
Available to order. Add to View Price
#6 WASHER, PLATE 90201-063F3-00	$7.49
Available to order. Add to View Price
#7 BOLT, HEXAGON SOCKET HEAD 90110-06145-00 Superseded by 91314-06012-00	$7.49
Available to order. Add to View Price
#8 SCREW, PAN HEAD 98580-06030-00 Superseded by 97885-06030-00	$4.70
Available to order. Add to View Price
#9 SCREW, PAN HEAD 98580-06040-00	$7.49
Available to order. Add to View Price
#10 SCREW, PAN HEAD (92580-06560-00 92580-06560-00 Superseded by 98580-06560-00	$8.49
Available to order. Add to View Price
#11 SCREW, PAN HEAD 98511-06085-00 Superseded by 98507-06085-00	$6.49
Available to order. Add to View Price
#12 SCREW, PAN HEAD 98501-06090-00 Superseded by 98504-06090-00	$3.90
Available to order. Add to View Price
#13 SCREW, PAN HEAD 98501-06075-00 Superseded by 98580-06575-00	$11.49
Available to order. Add to View Price
#14 BOLT, FLANGE 95811-08060-00 Superseded by 95817-08060-00	$3.55
Available to order. Add to View Price
#15 SCREW, PAN HEAD 98501-06100-00 Superseded by 98507-06100-00	$7.49
Available to order. Add to View Price
#16 HOSE 90445-121E3-00	$15.49
Unavailable
#17 CLIP 90467-13064-00 Superseded by 90467-13133-00	$7.49
Available to order. Add to View Price
#18 COVER, MIDDLE GEAR 59V-15415-09-00	$98.89
Unavailable
