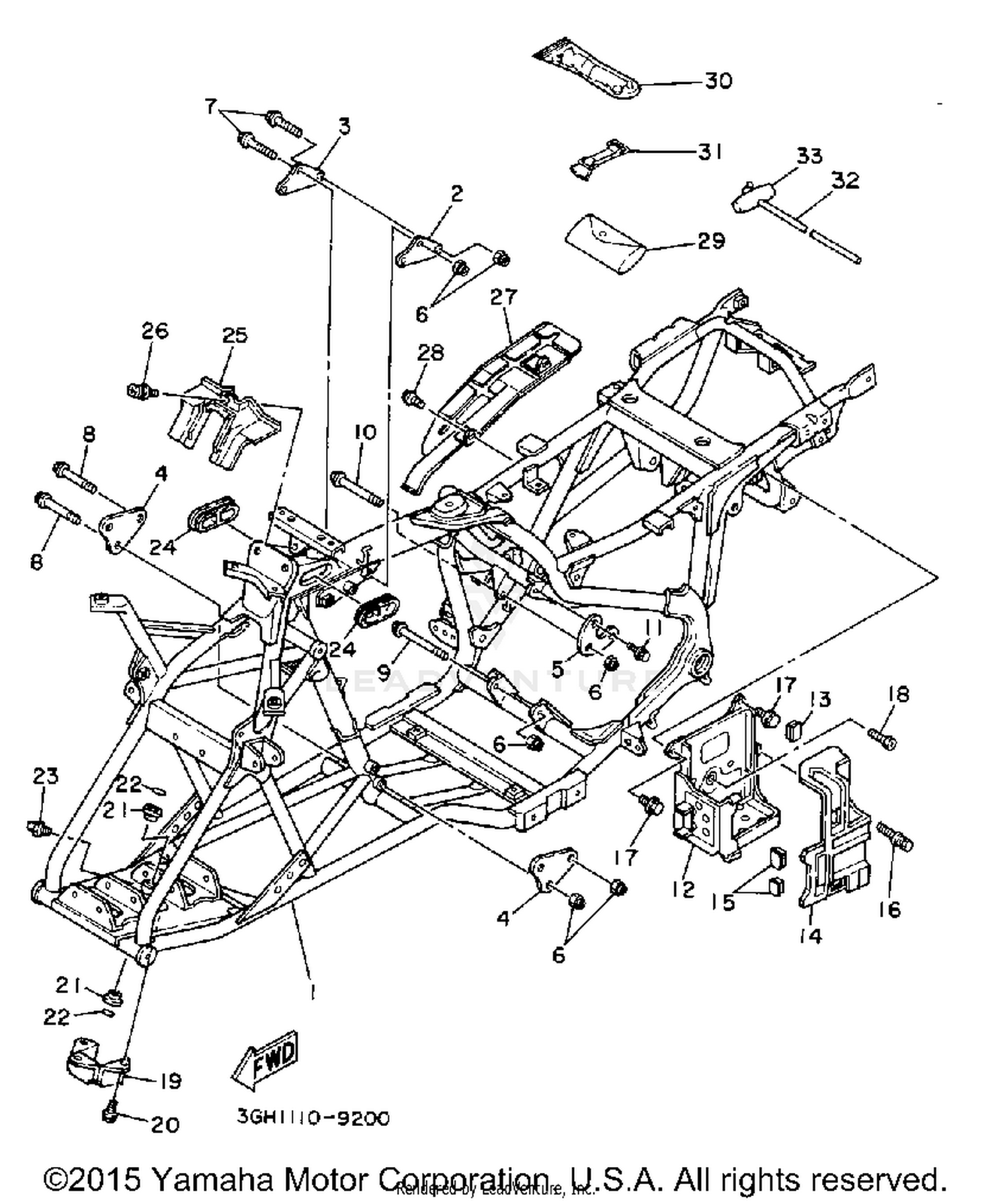

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
3GH-21110-00-33
|
$375.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, ENGINE 2
29U-21315-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#3
STAY, ENGINE 2
59V-21315-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#4
STAY, ENGINE 3
59V-21316-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#5
STAY, ENGINE 2
3GH-21315-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#6
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-08060-00
Superseded by 95817-08060-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95811-08065-00
Superseded by 95814-08065-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95811-08105-00
Superseded by 95817-08105-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95811-08090-00
Superseded by 95817-08090-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95811-08090-00
Superseded by 95817-08090-00
|
$4.50 | ||
|
Unavailable |
|||
|
#12
BOX
1YW-21170-00-00
Superseded by 1YW-21170-01-00
|
$88.99 | ||
|
Unavailable |
|||
|
#13
COVER 2
3FC-2139R-00-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOX
24W-21245-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER 2
3FC-2139R-00-00
|
$2.10 | ||
|
Unavailable |
|||
|
#16
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, HEXAGON
90153-06034-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUARD, ENGINE 1
59V-2147A-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Unavailable |
|||
|
#21
BUSH, SOLID
90381-15040-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUIDE, AIR
52H-2137Y-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#25
COVER
59V-2117F-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#26
SCREW, WITH WASHER
90159-05121-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, REAR FENDER 3
1YW-2163F-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#28
BOLT, WITH WASHER
90119-06042-00
Superseded by 90119-06117-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
TOOL KIT
3GH-28100-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#30
GAUGE, AIR
1NV-2811A-00-00
Superseded by 1NV-2811A-01-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BAND, TOOL
21V-21376-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
ROPE
59V-15781-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#33
HANDLE, STARTER
646-15755-02-00
|
$2.65 | ||
|
Unavailable |
|||
