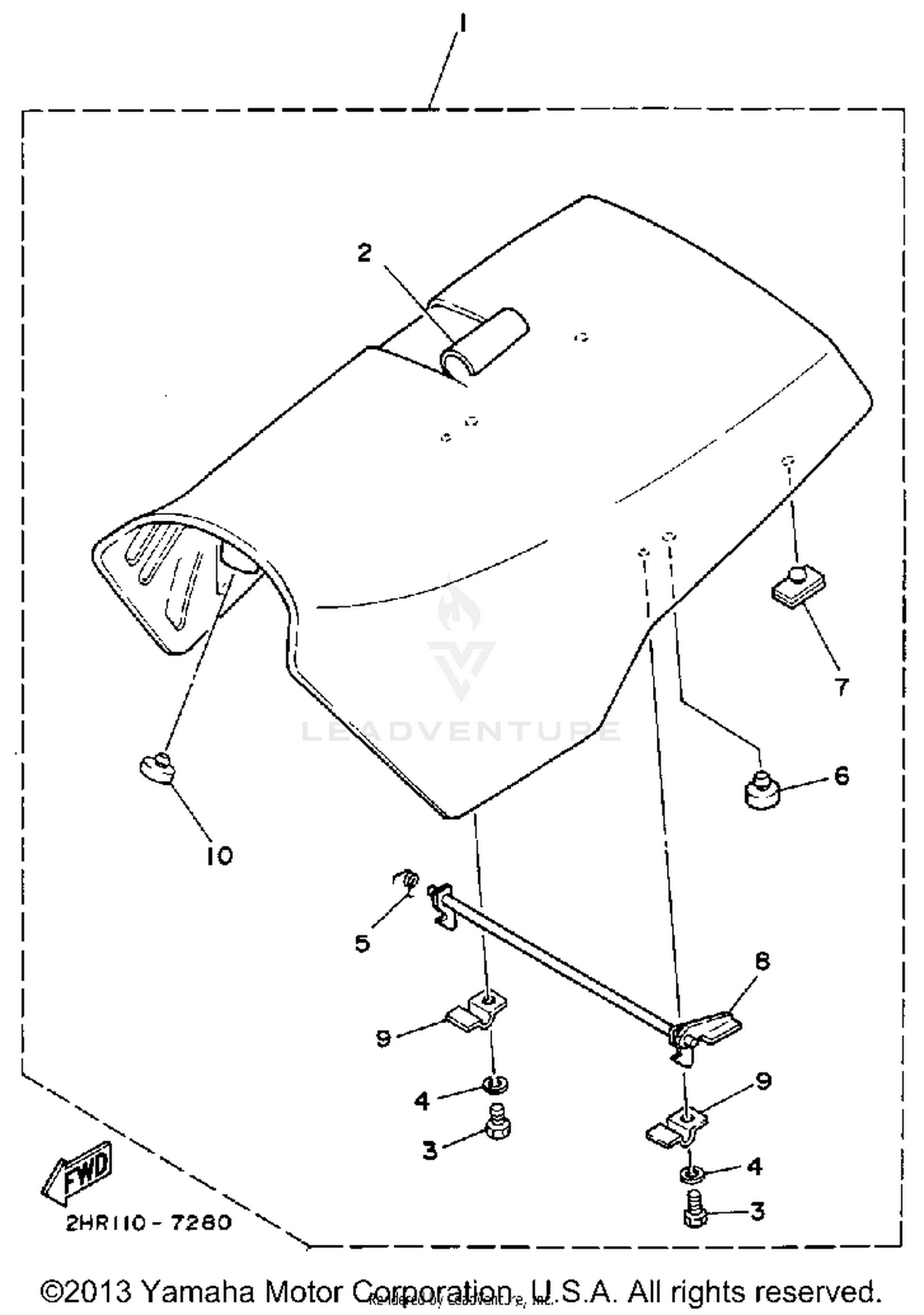

1990 Yamaha YFM350FWA BIG BEAR SEAT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
3HN-24710-00-00
|
$288.99 | ||
|
Unavailable |
|||
|
#
SINGLE SEAT ASSEMBLY
3HN-24710-20-00
Superseded by 3HN-24710-21-00
|
$288.99 | ||
|
Unavailable |
|||
|
#2
COVER, SEAT
3HN-24731-20-00
Superseded by 3HN-24731-21-00
|
$118.99 | ||
|
Unavailable |
|||
|
#
COVER, DOUBLE SEAT
3HN-24731-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#
COVER, DOUBLE SEAT
2HR-24731-10-00
|
$185.99 | ||
|
Unavailable |
|||
|
#
COVER, DOUBLE SEAT
2HR-24731-00-00
Superseded by 3HN-24731-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#3
BOLT
97013-06012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-23567-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, SEAT
509-24724-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, SEAT
59V-24776-00-00
Superseded by 59V-24776-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, SEAT LEVER
59V-24775-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
