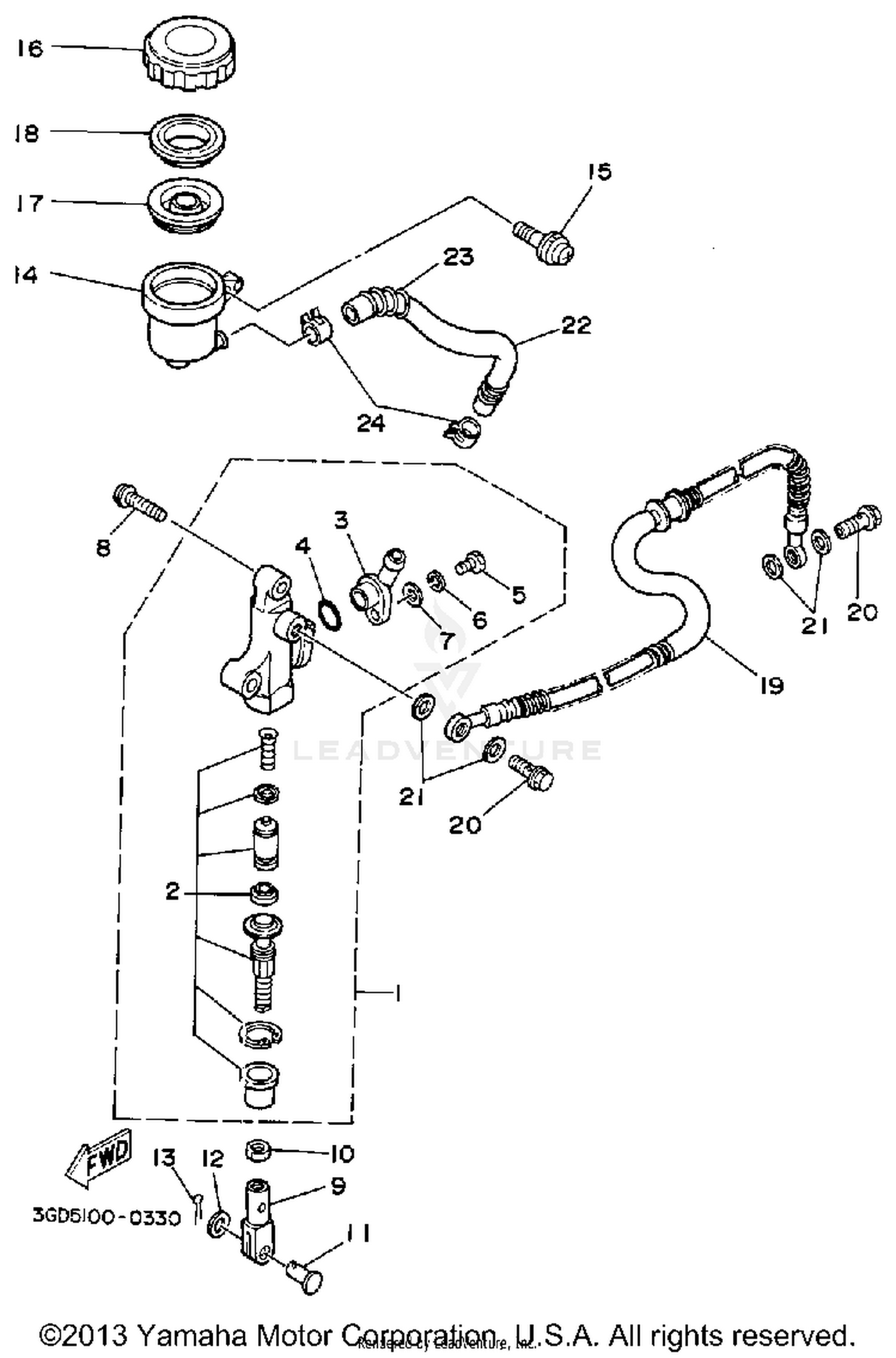

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSEMBLY.
3GD-2583V-00-00
|
$143.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
3GD-W0042-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT
29L-2582A-50-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92016-08030-00
Superseded by 92017-08030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
JOINT
31A-27222-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
TANK, RESERVOIR
47X-25894-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, WITH WASHER
90159-06056-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DIAPHRAGM, RESERVOIR
360-25854-00-00
Superseded by 360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRAKE HOSE SET (3GD) (3GD-25874
3GD-25874-00-00
Superseded by 99999-02415-00
|
$102.99 | ||
|
Unavailable |
|||
|
#20
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE, RESERVOIR
1UY-25895-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#23
SPRING, COMPRESSION
90501-102E8-00
|
$10.49 | ||
|
Unavailable |
|||
|
#24
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
