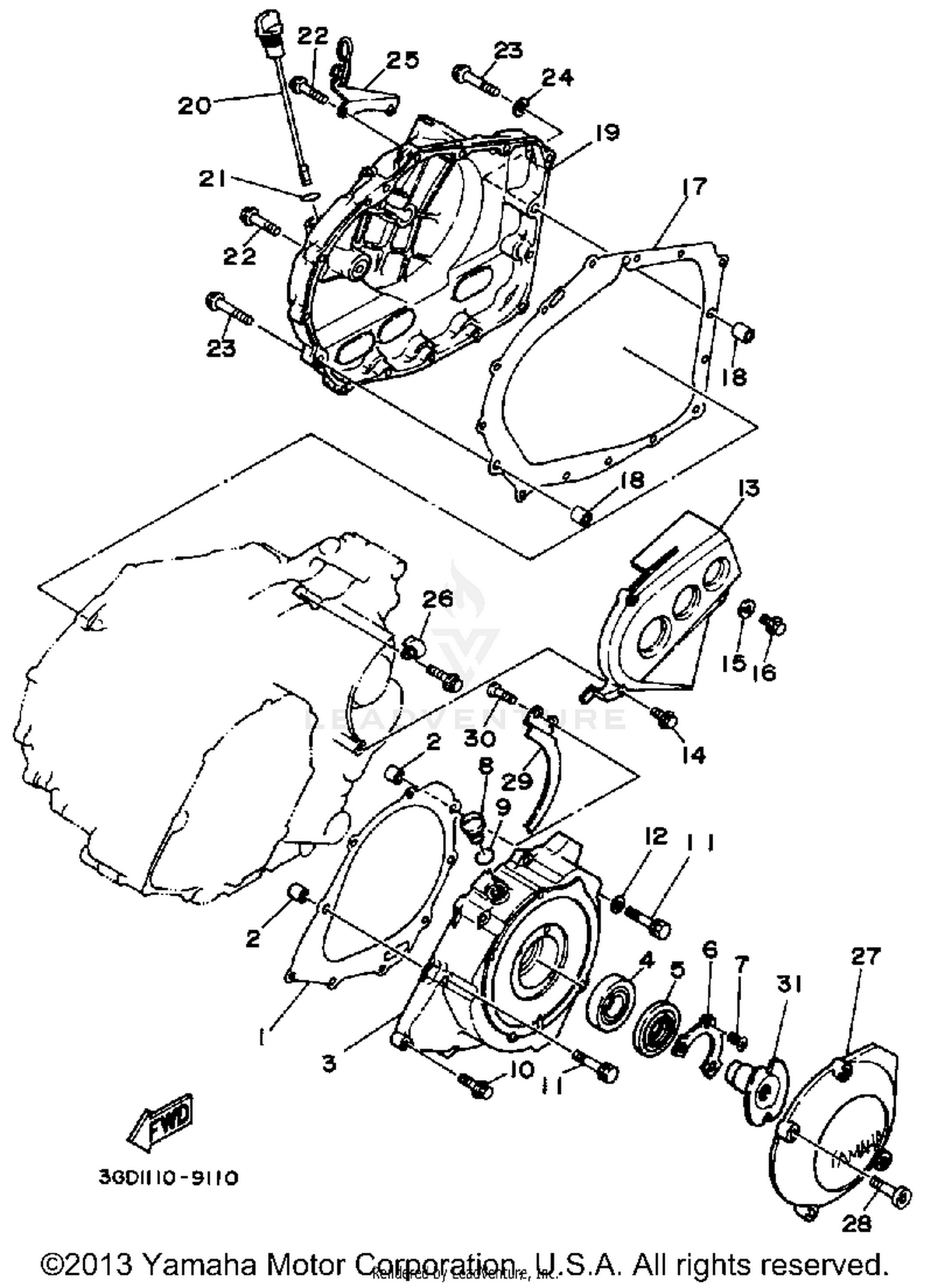

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, CRANKCASE COVER 1
3GD-15451-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADAPTOR
3GD-15787-00-00
Superseded by 3GD-15787-03-00
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (1YW)
93306-07802-00
|
$33.99 | ||
|
Unavailable |
|||
|
#5
OIL SEAL
93103-28164-00
Superseded by 93102-28476-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, THRUST
1UY-15719-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, COUNTERSUNK
90151-05031-00
Superseded by 90151-05023-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-14117-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-14369-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (SMALL HEAD)
95023-06025-00
Superseded by 95024-06025-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (SMALL HEAD)
95021-06045-00
Superseded by 95024-06045-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, CRANKCASE 2
1UY-15421-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLG.(SMALL HEAD)
95023-06020-00
Superseded by 95024-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95026-06016-00
Superseded by 90105-06696-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, CRANKCASE COVER 2
3GD-15461-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Unavailable |
|||
|
#19
COVER, CRANKCASE 3
3GD-15431-00-00
|
$155.99 | ||
|
Unavailable |
|||
|
#20
PLUG, OIL LEVEL
1UY-15362-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-19522-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (SMALL HEAD)
95023-06030-00
Superseded by 95024-06030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (SMALL HEAD)
95023-06040-00
Superseded by 95024-06040-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
90430-06014-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
HOLDER, CLUTCH CABLE
1UY-15441-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#26
CLAMP
90465-08277-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, CRANKCASE 1
3GD-15411-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
STOPPER 1
1UY-81175-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOSS, STARTER PULLEY
3GD-15777-10-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
