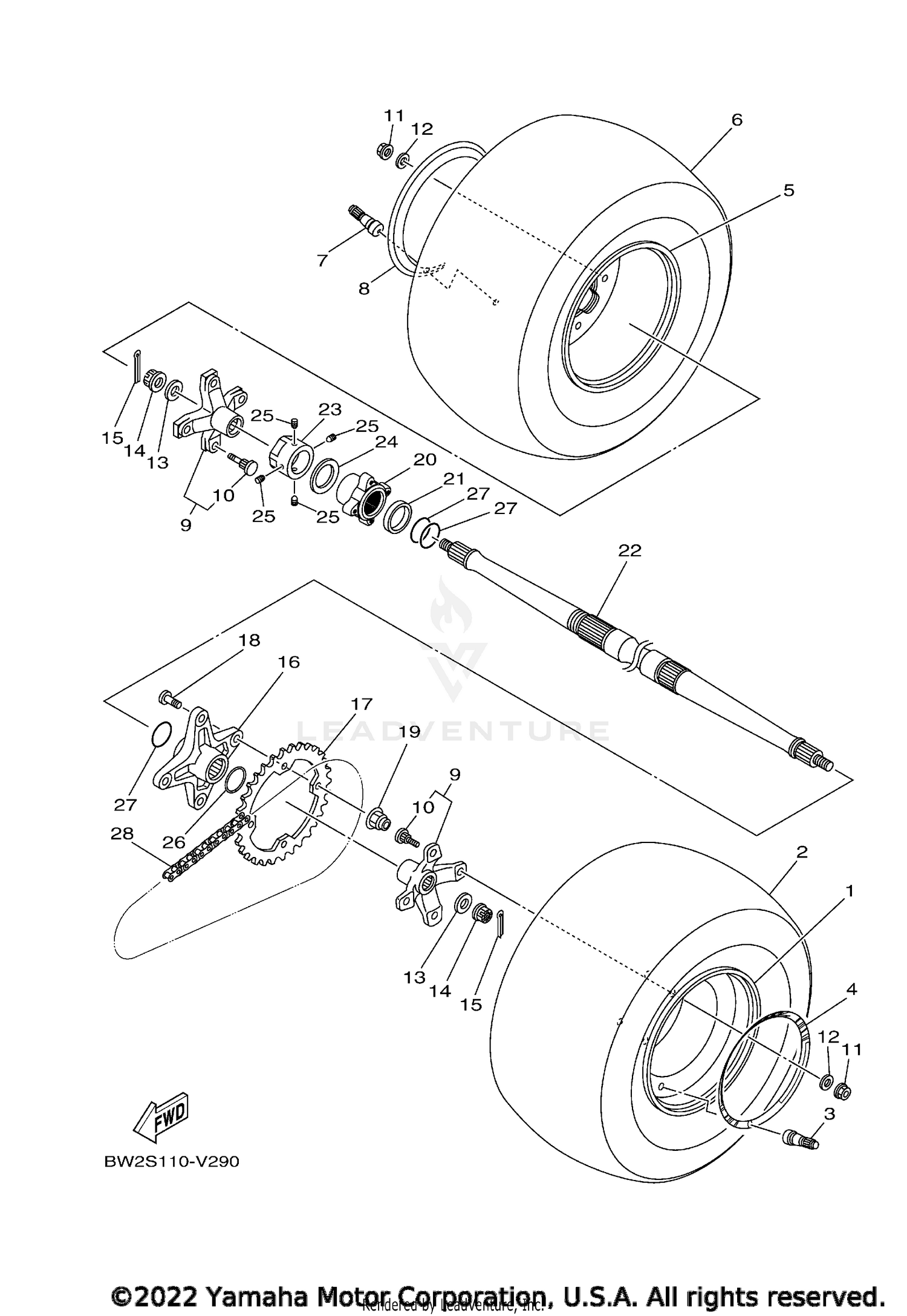

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL COMP.
1TD-F5390-11-00
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (AT20X10R9 MS22**TL)
94110-09802-00
|
$282.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GRAPHIC 2
BW2-F51G2-20-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
REAR WHEEL COMP.
1TD-F5390-11-00
|
$254.99 | ||
|
Unavailable |
|||
|
#6
TIRE (AT20X10R9 MS22**TL)
94110-09802-00
|
$282.99 | ||
|
Unavailable |
|||
|
#7
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
GRAPHIC 2
BW2-F51G2-20-00
|
$154.99 | ||
|
Unavailable |
|||
|
#9
COLLAR, WHEEL
18P-25383-00-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SERRATION
90114-10013-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, WITH WASHER
95702-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN
92902-10200-00
Superseded by 92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CASTLE
90171-16002-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER
90252-03001-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, SPROCKET AXLE
18P-25386-00-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET, DRIVEN (38T)
5TG-25438-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-10013-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SELF-LOCKING
90185-10011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, DISC
1TD-F5712-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-40001-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
AXLE, WHEEL
18P-25381-00-00
Superseded by BKD-F5381-00-00
|
$318.99 | ||
|
Unavailable |
|||
|
#23
NUT
90179-38001-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, CONICAL SPRING
90208-39001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SET
90113-06055-00
Superseded by 90113-06039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP
18P-25415-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-37003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CHAIN (DID520MXV4-98LE)
94582-38098-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
