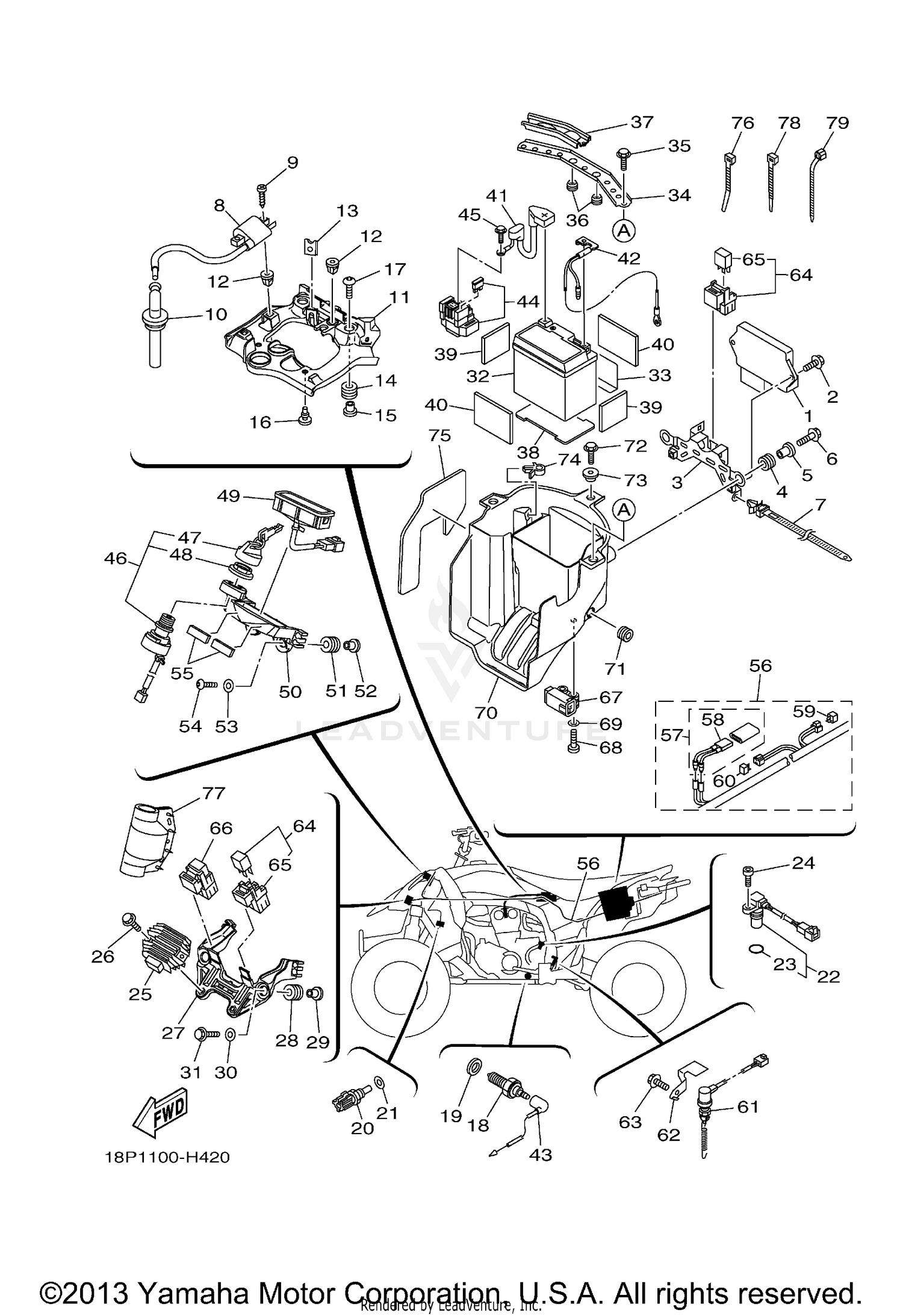

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CONTROL UNIT ASSY
18P-8591A-00-00
Superseded by 18P-8591A-11-00
|
$909.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, UNIT
18P-85991-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-14011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95812-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-12036-00
Superseded by 90464-10112-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
IGNITION COIL ASSY
18P-82310-00-00
Superseded by 18P-H2310-04-00
|
$17.49 | ||
|
Unavailable |
|||
|
#9
SCREW, TAPPING
97702-60125-00
Superseded by 97707-60525-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG CAP ASSY
18P-82370-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET
18P-81948-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG
90338-08226-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SPRING
90183-060A6-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-14323-00
Superseded by 90480-14329-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-06161-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
90338-05008-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,HEX. SOCKET BUTTON
90111-06084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
THERMOSENSOR ASSY
8CC-85790-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
90430-12202-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SENSOR, SPEED
18P-83755-00-00
Superseded by 18P-83755-01-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
4D9-81168-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
91312-06016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
RECTIFIER & REGULATOR ASSY
5BN-81960-00-00
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95802-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Unavailable |
|||
|
#27
STAY, REGULATOR
18P-87208-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROMMET
90480-10289-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-06204-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-06078-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95802-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
YTZ7S HE YUASA BATT
1S4-82100-10-00
Superseded by YTZ-7SHE0-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAT, BATTERY
18P-82122-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BRACKET, BATTERY
18P-82128-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE
90105-06084-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLUG
90338-12192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, BATTERY
18P-82129-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SEAT, BATTERY
4D3-82122-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
DAMPER
5MP-21747-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLATE, FOOTREST
4HC-27415-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WIRE, PLUS LEAD
18P-82115-00-00
Superseded by 18P-W8211-10-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
WIRE, MINUS LEAD
18P-82116-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
WIRE, LEAD
18P-82541-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
STARTER RELAY ASSY (RC19-084A)
18P-81940-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE
95022-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
MAIN SWITCH ASSY
4SH-82510-00-00
Superseded by 4SH-82510-01-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
CAP, KEY
3HN-82579-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT, MAIN SWITCH
3HN-82569-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
PILOT LIGHT ASSY
18P-83530-00-00
Superseded by 18P-83530-01-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BRACKET, INDICATOR
18P-8361L-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
GROMMET
90480-10289-00
|
$7.49 | ||
|
Unavailable |
|||
|
#52
COLLAR
90387-06204-00
|
$7.49 | ||
|
Unavailable |
|||
|
#53
WASHER, PLATE
90201-06078-00
|
$5.49 | ||
|
Unavailable |
|||
|
#54
BOLT, BUTTON HEAD
92012-06025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#55
DAMPER
2C0-28372-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
WIRE HARNESS ASSY
18P-82590-00-00
|
$686.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
CIRCUIT BREAKER ASSY
5ND-82180-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
THERMO SWITCH ASSY
5ND-82560-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
DIODE ASSY
4WA-81980-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
DIODE ASSY
3WP-81980-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
STOP SWITCH ASSY
18P-82530-00-00
Superseded by 18P-82530-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#62
COVER 1
18P-8246B-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
RELAY ASSY (5EA-02)
5EA-81950-20-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
HOLDER, RELAY
5EA-81952-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#66
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-00-00
Superseded by 5DM-81950-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
SENSOR, LEAN ANGLE
5PS-82576-01-00
Superseded by 5PS-82576-02-00
|
$84.99 | ||
|
Unavailable |
|||
|
#68
BOLT
91312-04025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#69
WASHER, PLATE
90201-04030-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#70
BOX, BATTERY 1
18P-8212B-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
GROMMET
90480-12007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#72
BOLT, FLANGE
90105-06084-00
|
$4.35 | ||
|
Unavailable |
|||
|
#73
COLLAR
90387-06153-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#74
CLAMP
90464-05222-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#75
INSULATOR
18P-8254E-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
CLAMP
90465-10098-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#77
COVER
5RU-8252U-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#78
CLAMP
90465-13M11-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#79
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
