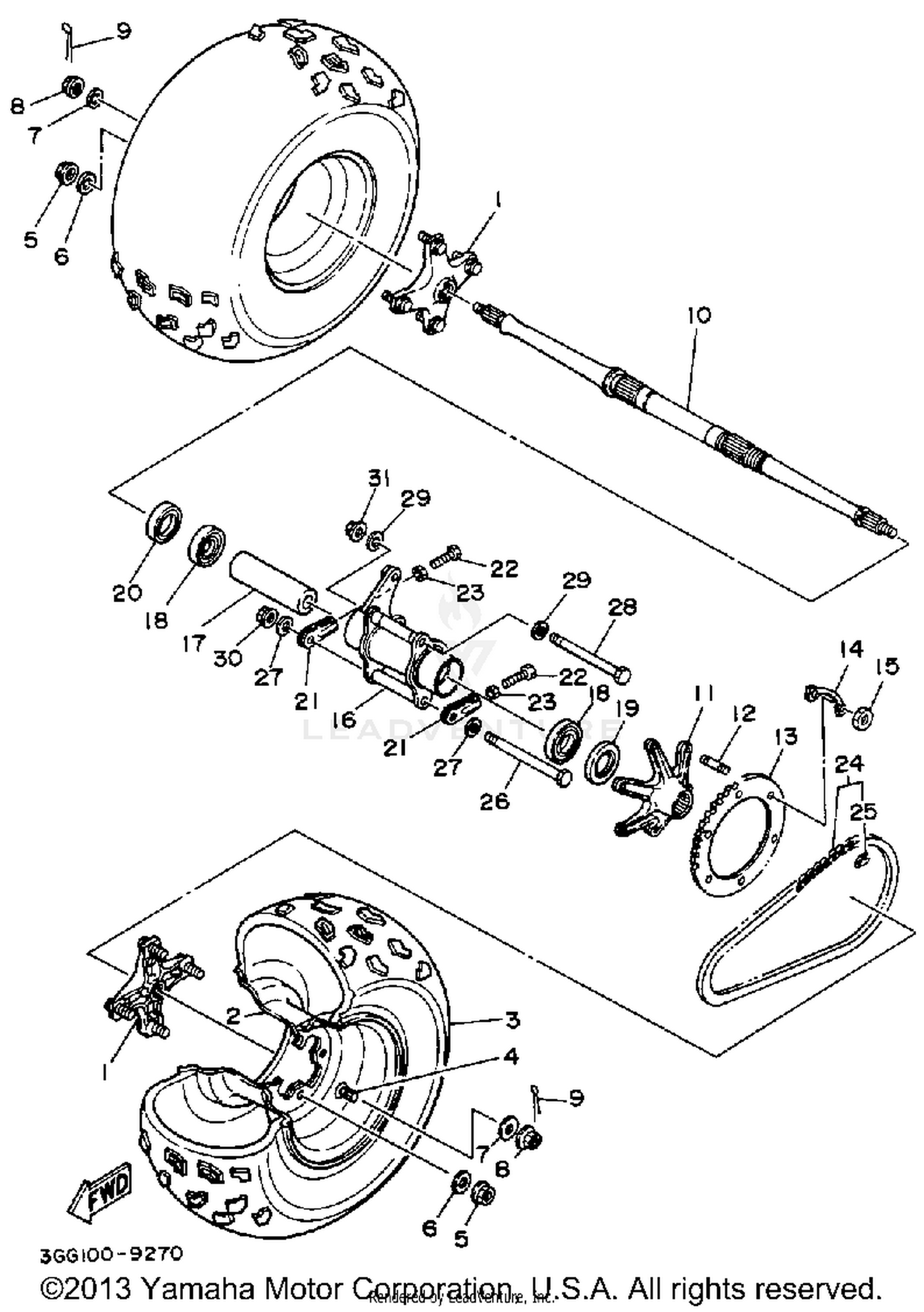

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, WHEEL
3GG-25383-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#2
WHEEL, REAR
3GG-25390-00-HM
|
$452.99 | ||
|
Unavailable |
|||
|
#3
AT20X11-10 KT987AD
94111-100X2-00
|
$89.99 | ||
|
Unavailable |
|||
|
#4
VALVE, RIM (TR412)
93900-00030-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92990-10200-00
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-140A6-00
|
$4.70 | ||
|
Unavailable |
|||
|
#8
NUT, CASTLE
90171-14037-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
AXLE, WHEEL
38W-25381-02-00
Superseded by 38W-25381-10-00
|
$549.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, SPROCKET AXLE
2XJ-25386-00-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-08507-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, DRIVEN (41T)
2XJ-25441-20-00
Superseded by 2XJ-25441-21-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
2XJ-25412-00-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90170-08258-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
HUB, REAR
3GG-25311-00-35
Superseded by 3GG-25311-01-P1
|
$320.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
90560-35263-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93306-00705-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93106-42026-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93102-43341-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PULLER, CHAIN 1
2XJ-25388-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90101-08615-00
Superseded by 90101-08777-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
CHAIN (DID520V-103L)
94581-08104-00
Superseded by 9Y581-87103-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT, CHAIN (DID520V FJ)
94681-08011-00
Superseded by 94681-87011-00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
90101-10685-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-106F2-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90101-12694-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-126A7-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, FLANGE
90179-12588-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
