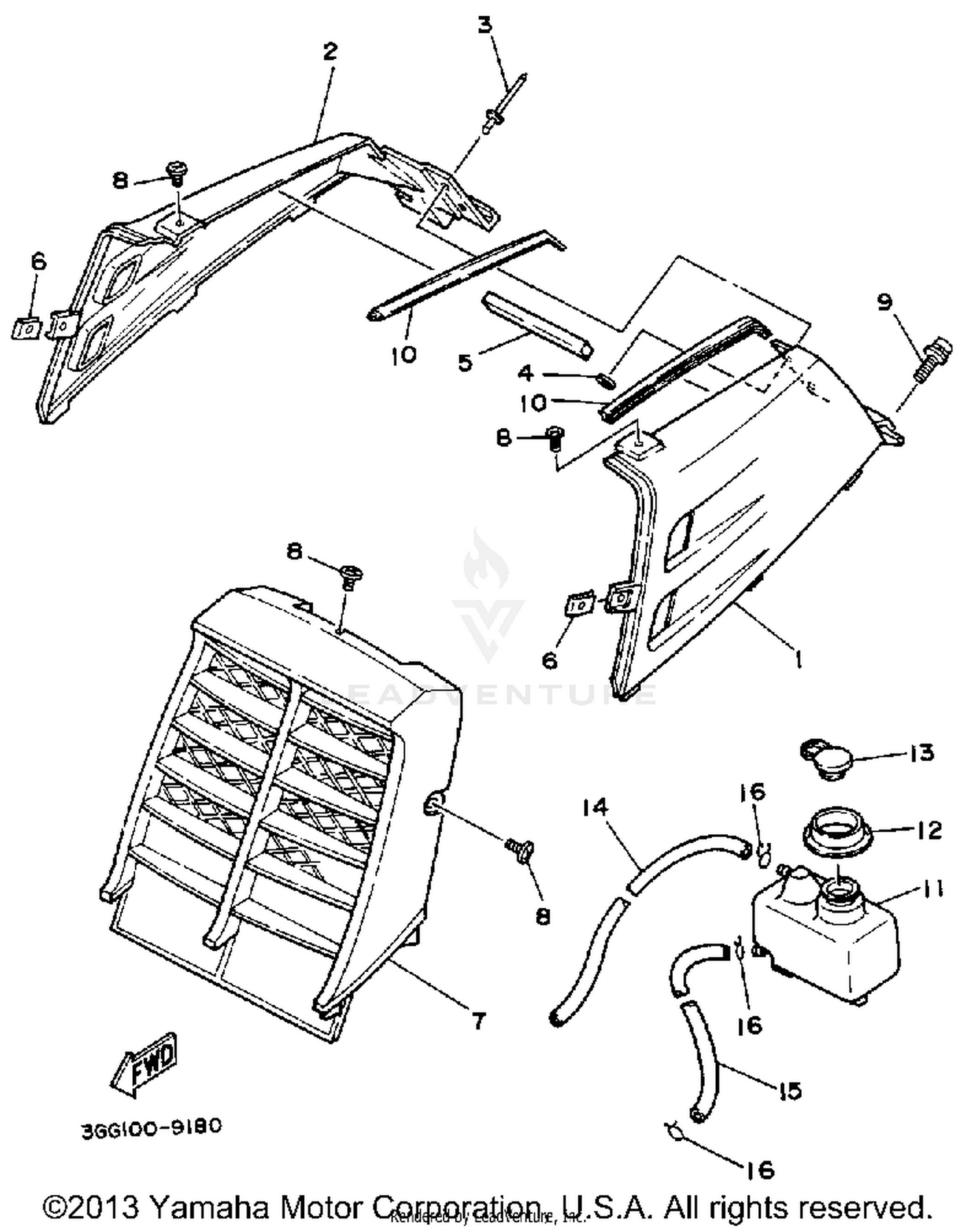

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
2GU-21711-00-00
Superseded by 2GU-21711-70-00
|
$37.99 | ||
|
Unavailable |
|||
|
#2
COVER, SIDE 2
2GU-21721-00-00
Superseded by 2GU-21721-70-00
|
$37.99 | ||
|
Unavailable |
|||
|
#3
RIVET, BLIND
90267-40076-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-047A2-00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
2GU-21747-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
PANEL, FRONT (2GU-23391-70-00)
2GU-23391-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#8
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, WITH WASHER
90159-06082-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
MOLE, SIDE COVER 1
2GU-2171L-00-00
Superseded by 4WV-2171L-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK, RECOVERY
2GU-21871-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-48399-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
10V-21875-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE (L675)
90445-090F6-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE (L675)
90445-090F7-00
Superseded by 90445-090F6-00
|
$30.99 | ||
|
Unavailable |
|||
|
#16
CLIP
90467-08003-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
