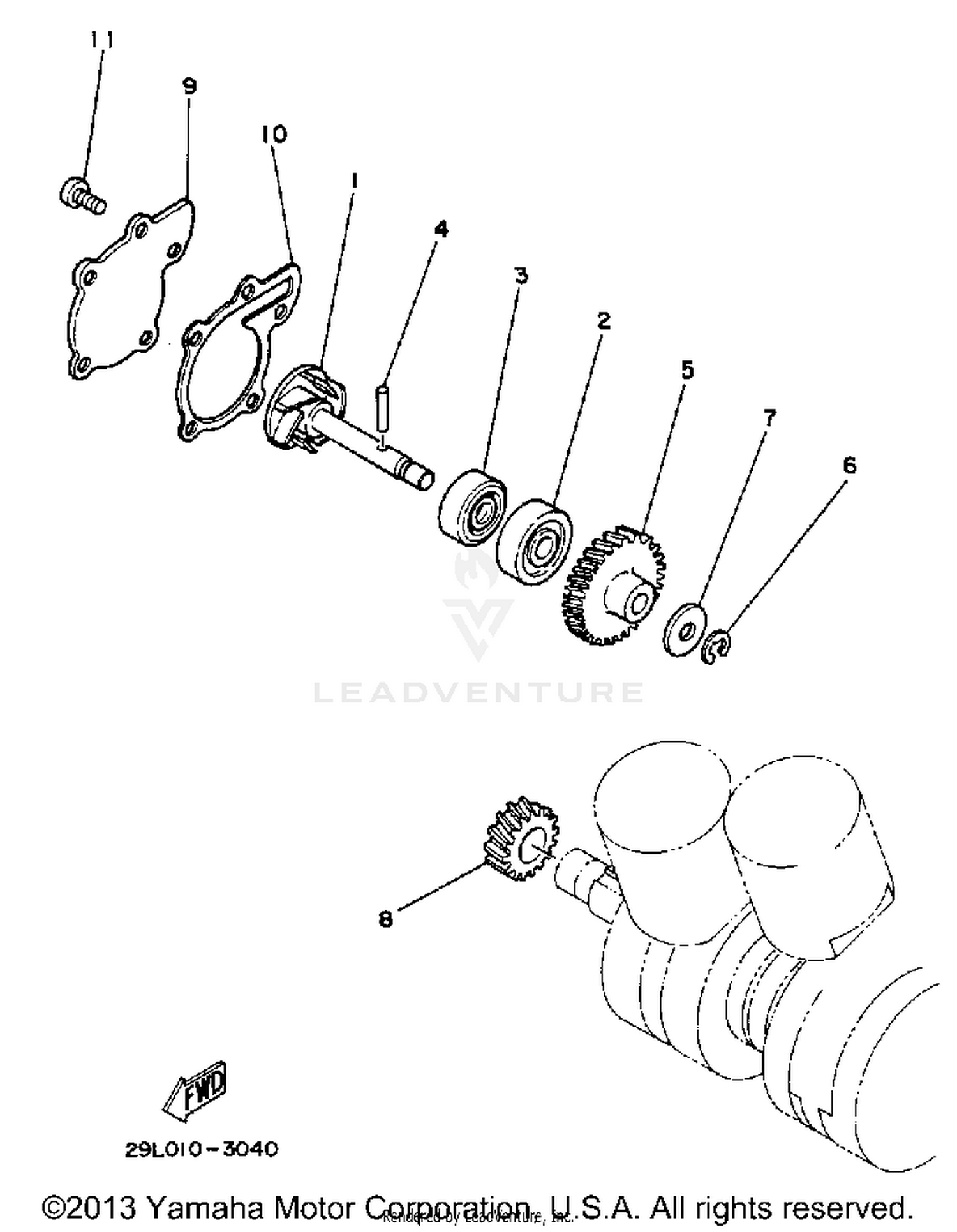

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IMPELLER SHAFT ASSY
4L0-12450-01-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (B6300Z)
93306-30003-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93103-10168-00
Superseded by 93103-10011-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93603-22028-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, IMPELLER SHAFT
4L0-12459-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
99080-07600-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08784-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, DRIVE
4L0-12436-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HOUSING
4L0-12422-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, HOUSING COVER 2
3GG-12428-00-00
Superseded by 3GG-12428-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
