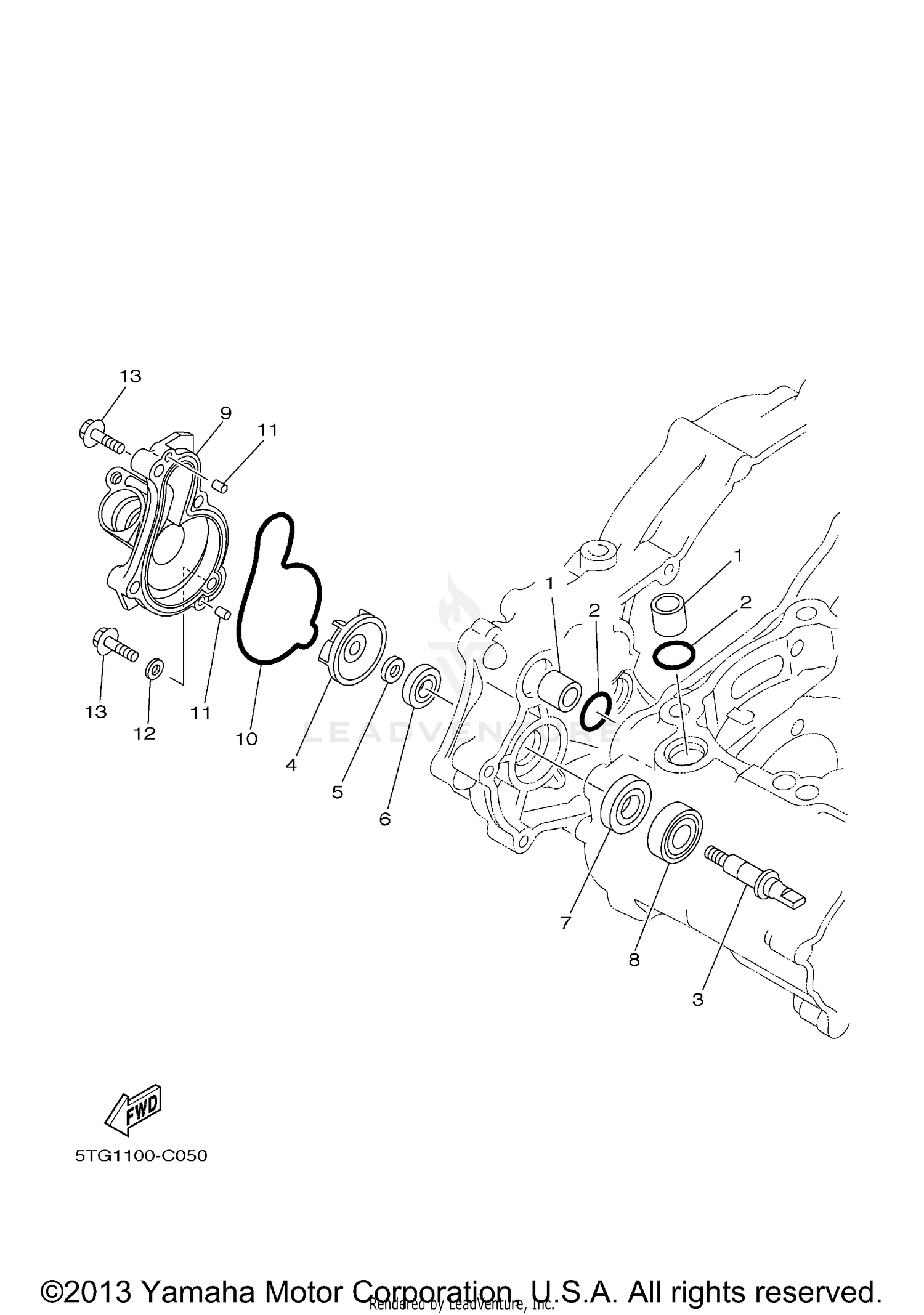

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, WATER
5BE-12564-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-19758-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, IMPELLER
5GR-12458-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
IMPELLER, WATER PUMP
5DJ-12451-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-08512-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93102-11008-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (SD 12-22-5 HS)
93102-12106-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-00105-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HOUSING
5TG-12422-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
5TG-12439-00-00
Superseded by 5BE-12439-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
93604-10011-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06030-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
