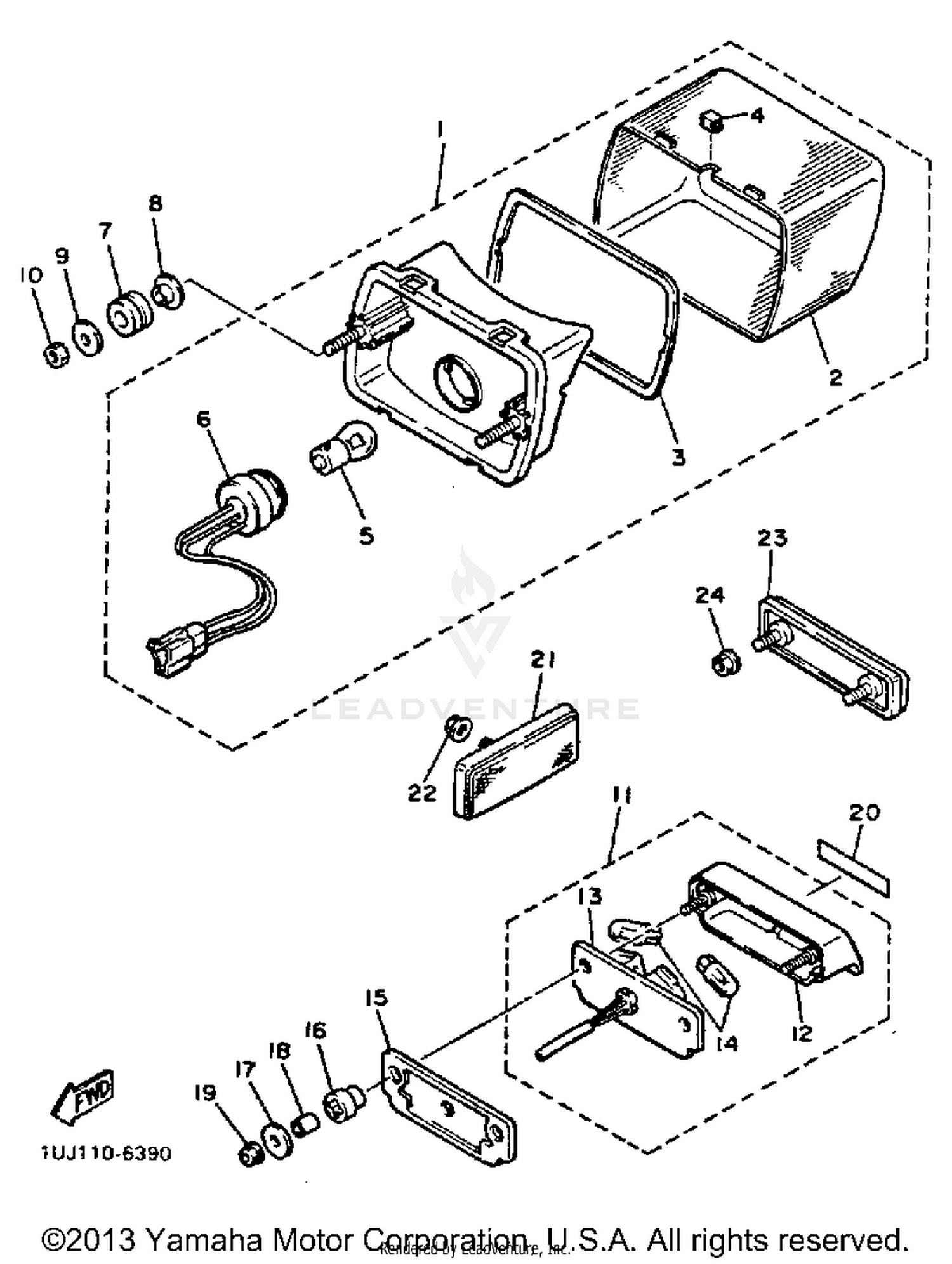

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
1UJ-84710-A0-00
|
$195.99 | ||
|
Unavailable |
|||
|
#2
LENS, TAILLIGHT
1FN-84721-E0-00
|
$41.99 | ||
|
Unavailable |
|||
|
#3
GASKET, TAIL LENS
47X-84723-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
1A2-84718-40-00
|
$6.99 | ||
|
Unavailable |
|||
|
#5
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CORD ASSEMBLY
1UJ-84735-A0-00
|
$34.99 | ||
|
Unavailable |
|||
|
#7
GROMMET
90480-18276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-07037-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06697-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
LICENSE LITE ASSY
1UF-84745-A0-00
|
$107.99 | ||
|
Unavailable |
|||
|
#12
BODY, LICENCE LIGHT
3F9-84749-00-00
|
$91.99 | ||
|
Unavailable |
|||
|
#13
BASE, LICENSE LIGHT
3F9-84741-00-00
|
$22.32 | ||
|
Unavailable |
|||
|
#14
BULB, METER 12V 3.8W
3F9-84744-00-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAT, BASE
3F9-84742-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER
3F9-84553-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPECIAL
3F9-84754-00-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
3F9-84757-00-00
Superseded by 90387-066H9-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
EMBLEM
31J-24786-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#21
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
REAR REFLECTOR ASSY
1FK-85130-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Unavailable |
|||
