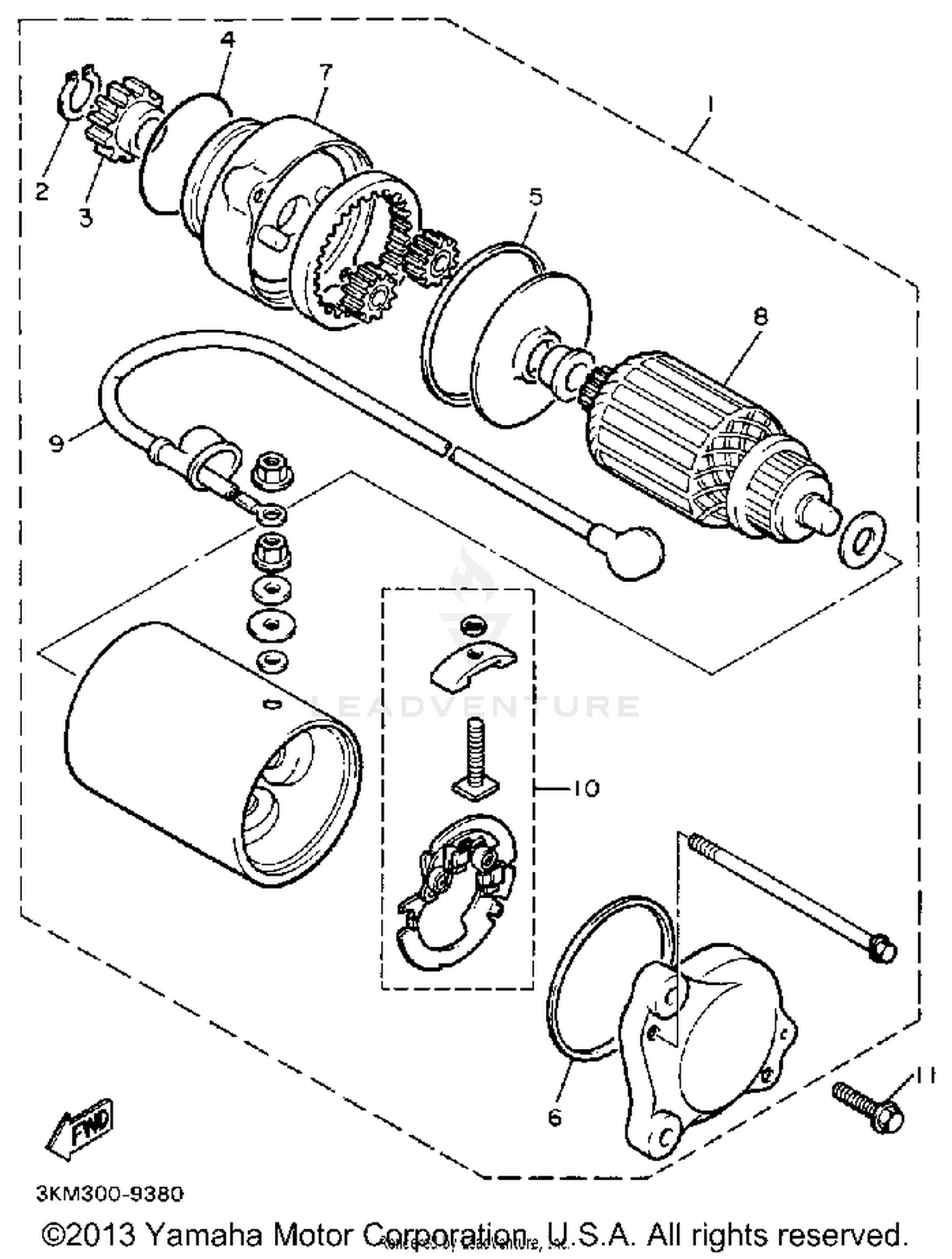

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTING MOTOR ASY
3KM-81800-00-00
Superseded by 3KM-81890-00-00
|
$514.99 | ||
|
Unavailable |
|||
|
#2
CIRCLIP
99009-12400-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, STARTING MTR
4G0-15511-00-00
|
$22.86 | ||
|
Unavailable |
|||
|
#4
O-RING
11H-81847-00-00
Superseded by 4G0-81847-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#5
GASKET
4G0-81844-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
11H-81844-00-00
Superseded by 35C-81844-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FRONT BRACKET ASSEMBLY
3KM-81830-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#8
ARMATURE ASSEMBLY
3KM-81850-00-00
|
$206.99 | ||
|
Unavailable |
|||
|
#9
WIRE, STARTER
4G0-81815-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#10
BRUSH HOLDER ASSY
3KS-81840-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95816-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
