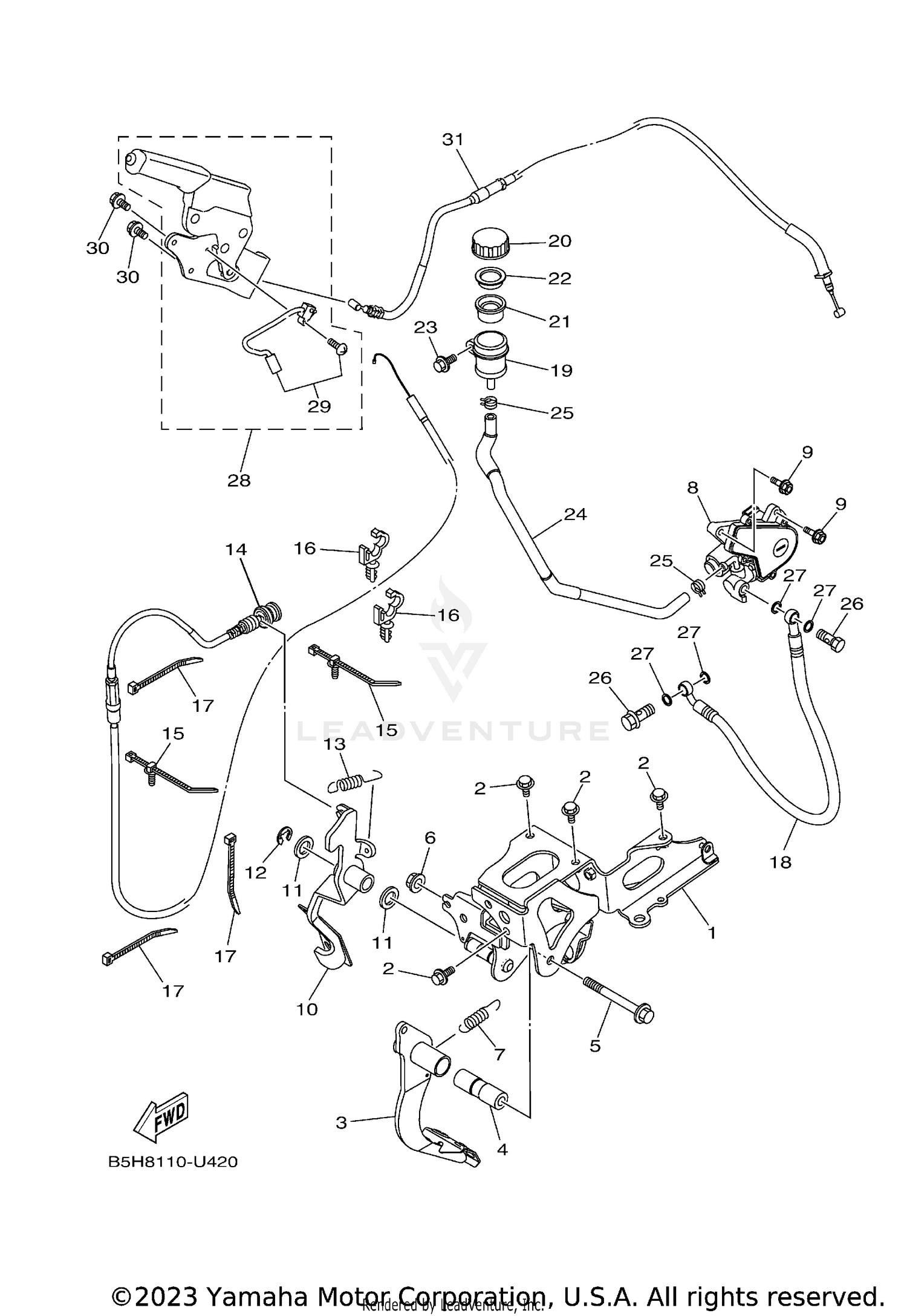

Pedal Wire Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, PEDAL SUPPORT
B57-F2548-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PEDAL, BRAKE
2HC-F7200-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-10843-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95812-10090-00
Superseded by 95817-10090-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, S/L FLANGE
95602-10200-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TENSION
90506-23022-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLUTCH ACTUATOR ASSY
B57-82460-00-00
Superseded by B57-82460-03-00
|
$1,255.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
90105-08211-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ACCEL PEDAL ASSY
2HC-F7801-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-15018-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP, E-TYPE
93430-12008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TENSION
90506-23022-00
|
$4.70 | ||
|
Unavailable |
|||
|
#14
WIRE, THROTTLE 1
2HC-26311-12-00
Superseded by 2HC-26311-13-00
|
$60.99 | ||
|
Unavailable |
|||
|
#15
CLAMP
5B4-F1338-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90464-12830-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-48800-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, CLUTCH 1
B57-26472-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
TANK, RESERVOIR
5JJ-25894-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, RESERVOIR
3XP-25852-50-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DIAPHRAGM, RESERVOIR
2VN-25854-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUSH, DIAPHRAGM
2VN-25855-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, WITH WASHER
90119-06137-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, RESERVOIR
B57-25895-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-12191-00
Superseded by 90467-11044-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, UNION
90401-10172-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PARKING LEVER ASSY
1XD-F5690-01-00
Superseded by BDW-F5690-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#29
SWITCH COMP.
5UG-H251S-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
95812-06012-00
Superseded by 95817-06012-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#31
WIRE, BRAKE 1
2HC-26341-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
