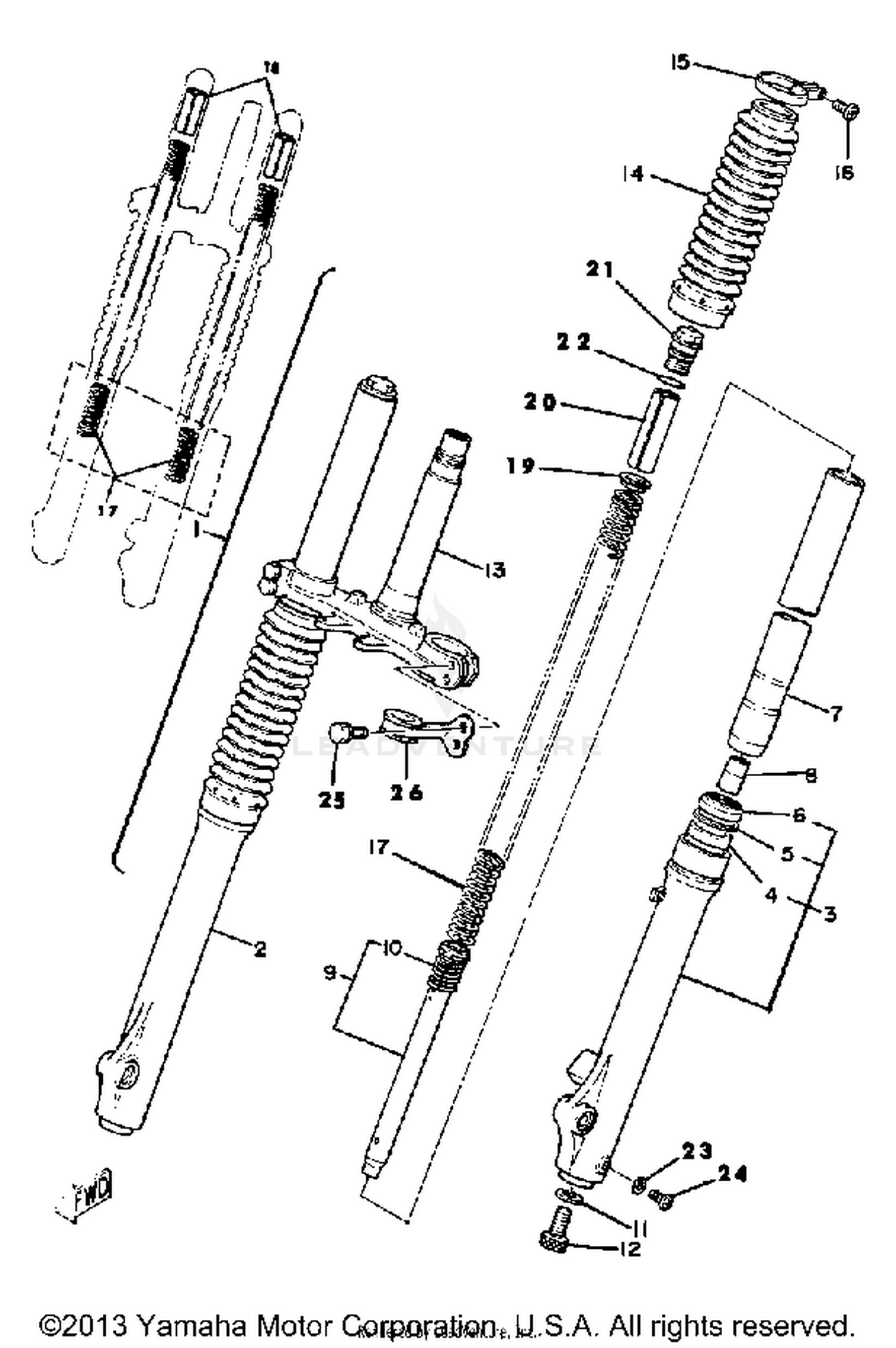

Front Fork Yz100h Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
3R9-23101-10-00
|
$187.99 | ||
|
Unavailable |
|||
|
#2
OUTER TUBE LH
3R2-23106-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#3
OUTER TUBE RH
3R2-23107-01-00
|
$117.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
1T3-23145-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, dust
4G0-23144-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
INNER TUBE 1
3R2-23110-00-00
|
$82.83 | ||
|
Unavailable |
|||
|
#8
SPINDLE, TAPER
1W1-23173-L0-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CYLINDER, FRTFRK
3R9-23170-10-00
|
$53.34 | ||
|
Unavailable |
|||
|
#10
SPRING, REBOUND
509-23151-L0-00
|
$16.99 | ||
|
Unavailable |
|||
|
#11
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
UNDER BRACKET
3R9-23340-10-33
|
$117.99 | ||
|
Unavailable |
|||
|
#14
BOOT, FRONT FORK
3R2-23191-M0-00
|
$31.56 | ||
|
Unavailable |
|||
|
#15
BAND, BOOT
341-92090-60-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, BOOT BAND
509-23194-L0-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, FRONT FORK
3R2-23141-00-00
|
$19.92 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK
3R2-23141-30-00
|
$19.92 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK
3R2-23141-20-00
|
$12.52 | ||
|
Unavailable |
|||
|
#
SPRING, FRONT FORK
3R9-23141-10-00
|
$18.22 | ||
|
Unavailable |
|||
|
#18
SPACER
11H-23118-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#19
SEAT, SPRING UPPER
583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#20
SPACER
1W2-23118-10-00
|
$4.56 | ||
|
Unavailable |
|||
|
#21
BOLT, CAP (583-23111-00)
2W6-23111-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#22
GASKET
240-23114-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
5X6-23181-L0-00
|
$5.99 | ||
|
Unavailable |
|||
|
#26
GUIDE, CABLE
3R4-23389-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
