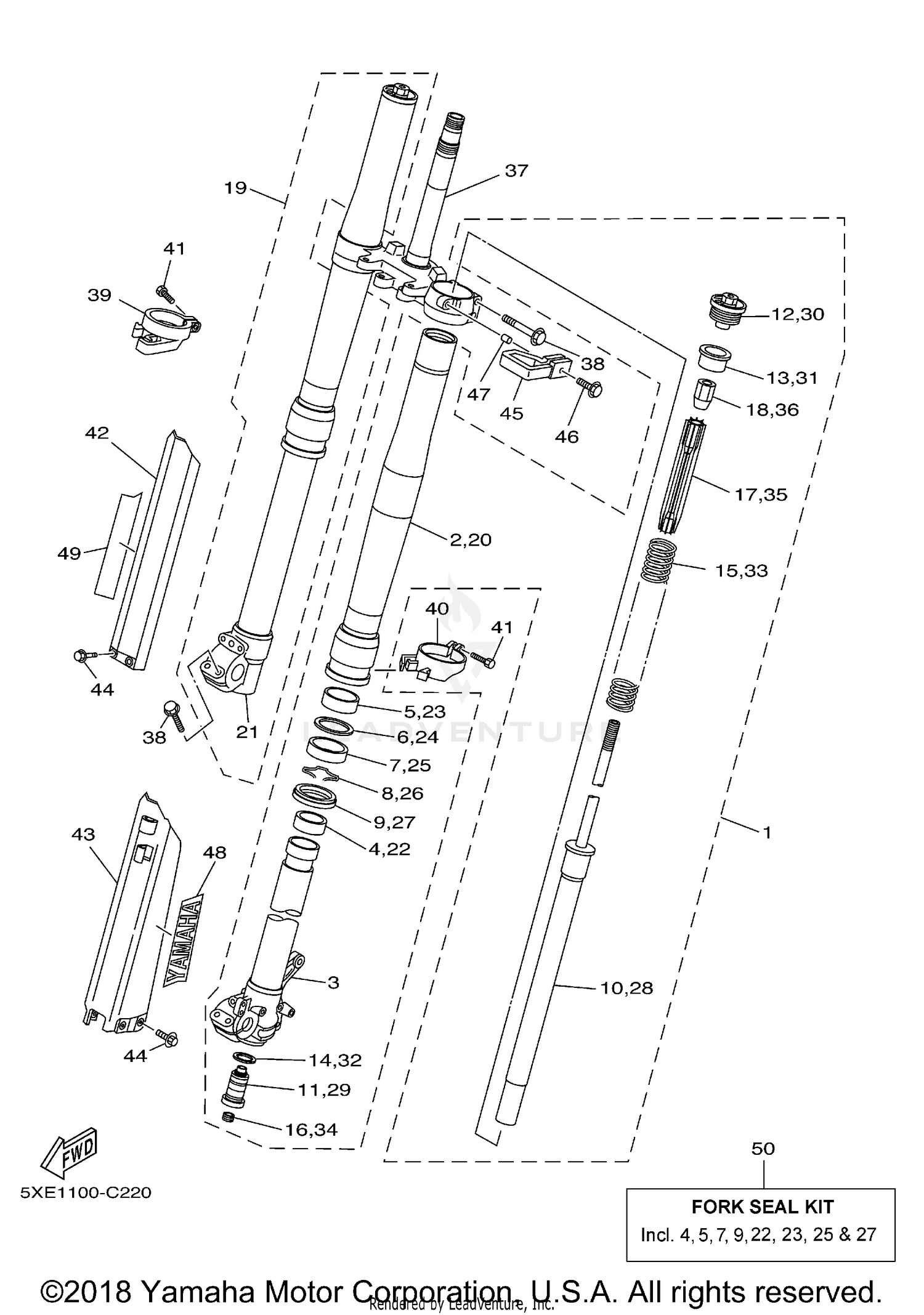

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
5XE-23102-00-00
|
$1,347.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (RIGHT)
5XE-23136-L0-00
|
$690.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE COMP. 2
5XE-23120-L0-00
|
$355.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
5XE-23171-L0-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
5XE-23125-L0-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
5XE-23146-L0-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
5XE-23145-L0-00
Superseded by 1C3-23145-L0-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
5XE-23153-L0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
5XE-23144-L0-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
5XE-23170-L0-00
|
$552.99 | ||
|
Unavailable |
|||
|
#11
VALVE COMP.
5XE-2316A-L0-00
|
$267.99 | ||
|
Unavailable |
|||
|
#12
BOLT, CAP
5XE-23111-L0-00
|
$238.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE, SPRING
5XE-23117-L0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
4SS-23158-L0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, FRONT FORK (K=4.0N/MM
5XE-23141-L0-00
|
$61.61 | ||
|
Unavailable |
|||
|
#16
PLUG, HOLE
3JD-2312G-L0-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAT, SPRING UPPER
5XE-23142-L0-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SPECIAL
5XE-23393-L0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FRONT FORK ASSY (R.H)
5XE-23103-00-00
|
$1,347.99 | ||
|
Unavailable |
|||
|
#20
TUBE, OUTER (RIGHT)
5XE-23136-L0-00
|
$690.99 | ||
|
Unavailable |
|||
|
#21
INNER TUBE COMP. 1
5XE-23110-L0-00
|
$378.99 | ||
|
Unavailable |
|||
|
#22
PISTON, FRONT FORK
5XE-23171-L0-00
|
$27.99 | ||
|
Unavailable |
|||
|
#23
METAL, SLIDE 1
5XE-23125-L0-00
|
$25.99 | ||
|
Unavailable |
|||
|
#24
WASHER, OIL SEAL
5XE-23146-L0-00
|
$13.49 | ||
|
Unavailable |
|||
|
#25
OIL SEAL
5XE-23145-L0-00
Superseded by 1C3-23145-L0-00
|
$32.99 | ||
|
Unavailable |
|||
|
#26
RING, SNAP
5XE-23153-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#27
SEAL, DUST
5XE-23144-L0-00
|
$22.99 | ||
|
Unavailable |
|||
|
#28
CYLINDER COMP., FRONT FORK
5XE-23170-L0-00
|
$552.99 | ||
|
Unavailable |
|||
|
#29
VALVE COMP.
5XE-2316A-L0-00
|
$267.99 | ||
|
Unavailable |
|||
|
#30
BOLT, CAP
5XE-23111-L0-00
|
$238.99 | ||
|
Unavailable |
|||
|
#31
GUIDE, SPRING
5XE-23117-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#32
GASKET
4SS-23158-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#33
SPRING, FRONT FORK (K=4.0N/MM
5XE-23141-L0-00
|
$61.61 | ||
|
Unavailable |
|||
|
#34
PLUG, HOLE
3JD-2312G-L0-00
|
$6.99 | ||
|
Unavailable |
|||
|
#35
SEAT, SPRING UPPER
5XE-23142-L0-00
|
$28.99 | ||
|
Unavailable |
|||
|
#36
NUT, SPECIAL
5XE-23393-L0-00
|
$24.99 | ||
|
Unavailable |
|||
|
#37
UNDER BRACKET COMP.
5XE-23340-L0-00
|
$479.99 | ||
|
Unavailable |
|||
|
#38
BOLT 1
5NY-23346-L0-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#39
PROTECTOR GUIDE COMP., 2
5XE-2314G-L0-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
PROTECTOR GUIDE COMP., 1
5XE-2314F-L0-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT 1
4SS-23346-L0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PROTECTER COMP., 2
5TA-2314J-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
PROTECTOR COMP., 1
5TA-2314H-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT 2
3SP-23356-L0-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
GUIDE, CABLE
5XE-23389-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
COLLAR
5XE-23113-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.99 | ||
|
Unavailable |
|||
|
#50
FORK SEAL KIT
5XE-W003B-00-00
Superseded by 1C3-W003B-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
