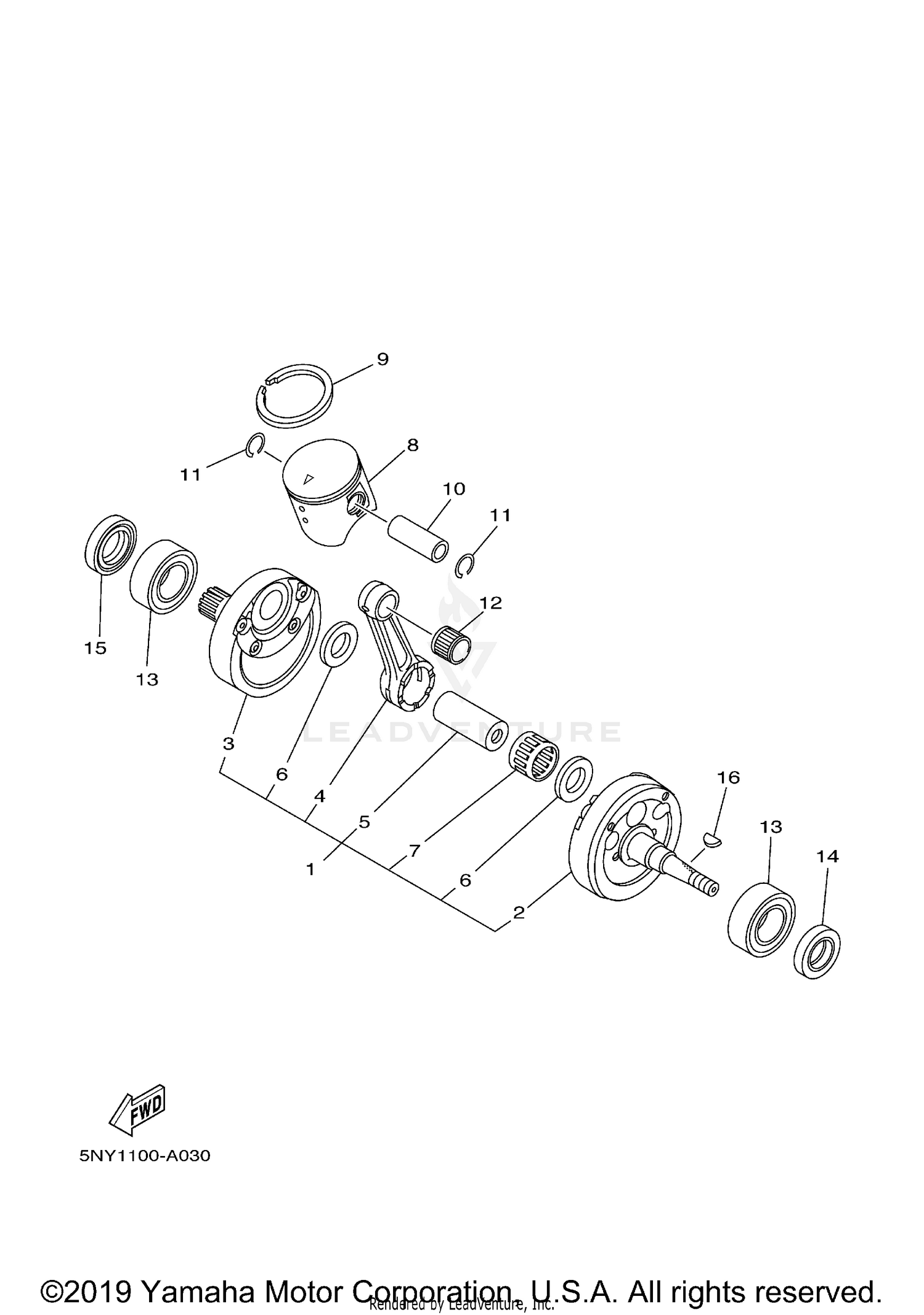

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
1C3-11400-20-00
|
$521.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANKSHAFT
1C3-11410-10-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKSHAFT
1C3-11420-20-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, CONNECTING
1C3-11651-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CRANK 1
3JD-11681-10-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
90209-22326-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93310-52238-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (STD)
1C3-11631-03-D0
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (STD)
1C3-11631-03-C0
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (STD)
1C3-11631-03-B0
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (STD)
1C3-11631-03-A0
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, PISTON
5NY-11611-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, PISTON
1C3-11633-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93450-16068-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93310-21510-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-37204-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93102-20485-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93102-22419-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
KEY, WOODRUFF
90280-03045-00
Superseded by 90280-03017-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
