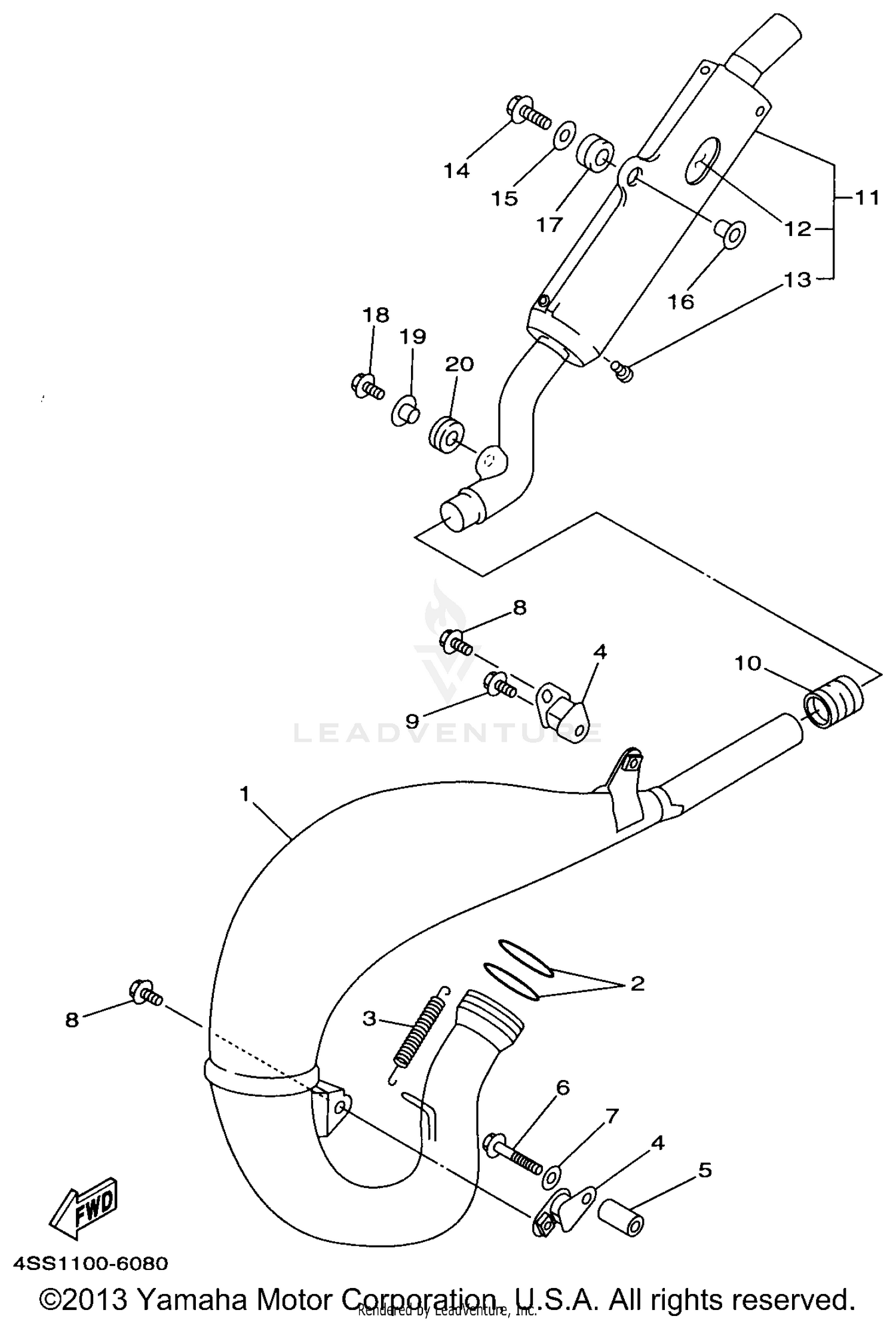

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY 1
4XM-14610-00-00
|
$560.99 | ||
|
Unavailable |
|||
|
#2
O-RING
93210-42728-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TENSION
90507-20052-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, MUFFLER 1
565-14771-00-00
Superseded by 565-14771-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#5
COLLAR
90387-062W7-00
Superseded by 90387-060X8-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95027-06045-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06185-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, EXHAUST 1
4JY-14615-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SILENCER, EXHAUST
4SS-14753-00-00
Superseded by 5DH-14753-00-00
|
$488.99 | ||
|
Unavailable |
|||
|
#12
FIBER
4JY-1469A-02-00
|
$182.99 | ||
|
Unavailable |
|||
|
#13
BOLT, BUTTON HEAD
92017-06010-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-060A0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-063G3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-16561-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-107R6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-10289-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
