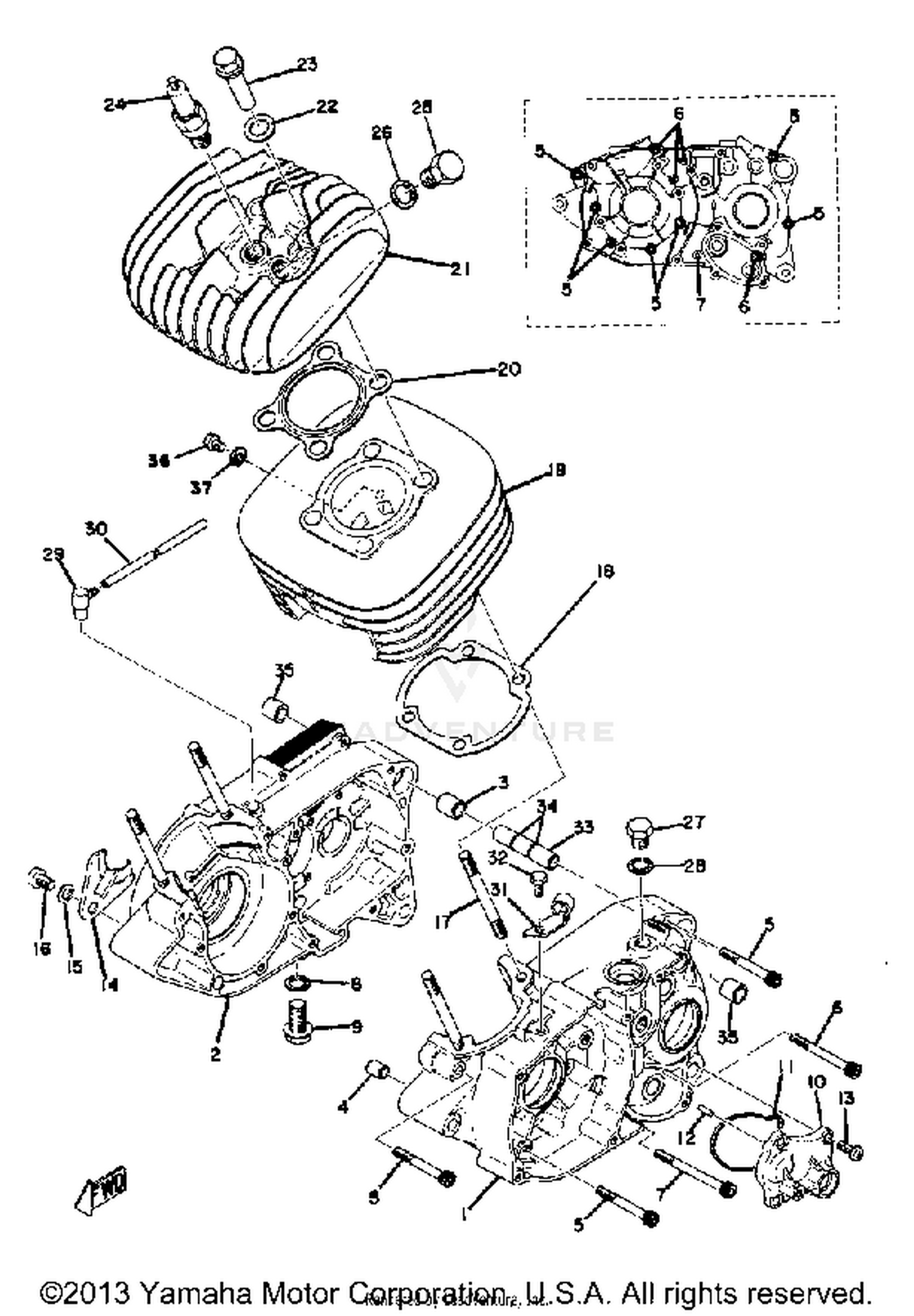

Crankcase - Cylinder Yz125a - B Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
401-15111-03-00
|
$95.99 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2
401-15121-01-00
|
$114.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99510-20020-00
Superseded by 99530-20020-00
|
$2.55 | ||
|
Unavailable |
|||
|
#4
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
91316-06050-00
Superseded by 91317-06050-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
91316-06060-00
Superseded by 91317-06060-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91316-06070-00
Superseded by 91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, STRAIGHT SCREW
90340-12005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, SHIFTER 1
401-15419-01-00
|
$27.99 | ||
|
Unavailable |
|||
|
#11
RING, RUBBER
401-15449-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
93603-12007-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER
304-15128-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD (9806-08012)
98501-08012-00
Superseded by 98580-08012-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
BOLT, STUD
90116-08064-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, CYLINDER
248-11351-00-00
Superseded by 1WE-11351-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CYLINDER 1
453-11311-00-00
|
$298.99 | ||
|
Unavailable |
|||
|
#20
GASKET, CYLINDER HEAD 1
248-11181-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HEAD, CYLINDER 1
453-11111-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-12362-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90179-08303-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BR9EIX NGK 4PK
NGK-B9EV0-00-00
Superseded by BR9-EIX00-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#25
PLUG, STRAIGHT SCRW (214-11197-
90340-14022-00
|
$4.40 | ||
|
Unavailable |
|||
|
#26
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG, STRAIGHT SCREW
90340-12004-00
|
$4.90 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
37R-82543-00-00
Superseded by 90201-12790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BREATHER
583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE
90446-07009-00
|
$1.05 | ||
|
Unavailable |
|||
|
#31
HOLDER, CLUTCH CABLE
401-15441-02-00
|
$14.49 | ||
|
Unavailable |
|||
|
#32
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPACER, ENGINE MOUNT
401-15317-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING
93210-11073-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
Damper
328-15316-00-00
Superseded by 90388-08003-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET
90430-06011-00
Superseded by 90430-06224-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#
GASKET KIT YZ125A
402-W0001-00-00
|
$19.49 | ||
|
Unavailable |
|||
