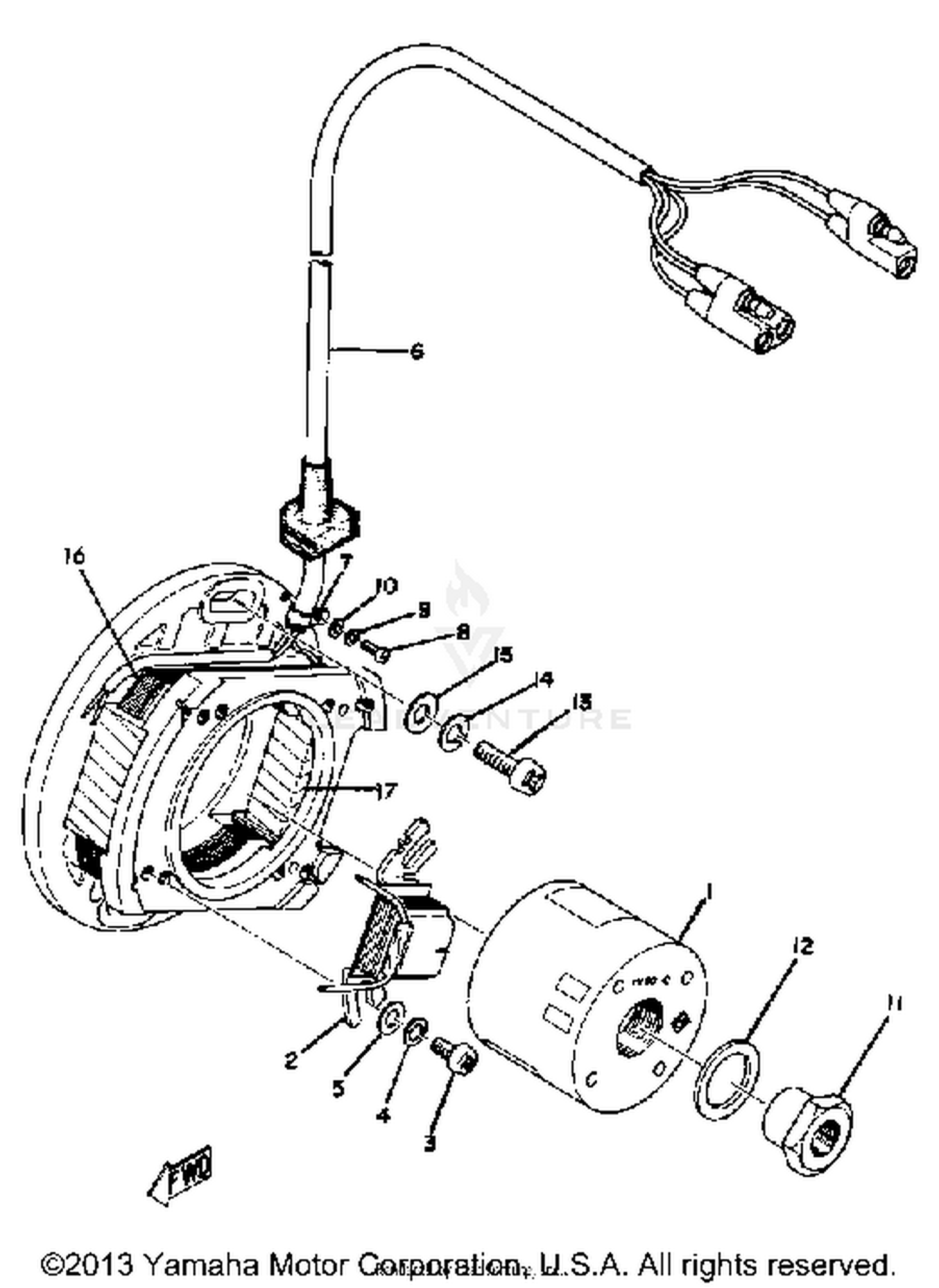

C - D - I - Magneto Yz125a - B Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR ASSEMBLY
401-85550-10-00
|
$250.99 | ||
|
Unavailable |
|||
|
#
CDI MAGNETO ASSEMBLY
401-85500-11-00
|
$371.99 | ||
|
Unavailable |
|||
|
#2
COIL PULSER
364-85543-10-00
|
$114.99 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEAD WIRE ASSEMBLY
401-85515-10-00
|
$20.14 | ||
|
Unavailable |
|||
|
#7
CLAMP
109-81328-11-00
|
$9.49 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, ROTOR
322-85553-10-00
|
$19.14 | ||
|
Unavailable |
|||
|
#12
WASHER, ROTOR
322-85554-10-00
|
$6.48 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
COIL, CHARGE 1
322-85566-10-00
|
$67.96 | ||
|
Unavailable |
|||
|
#17
COIL, CHARGE 2
322-85567-10-00
|
$69.14 | ||
|
Unavailable |
|||
