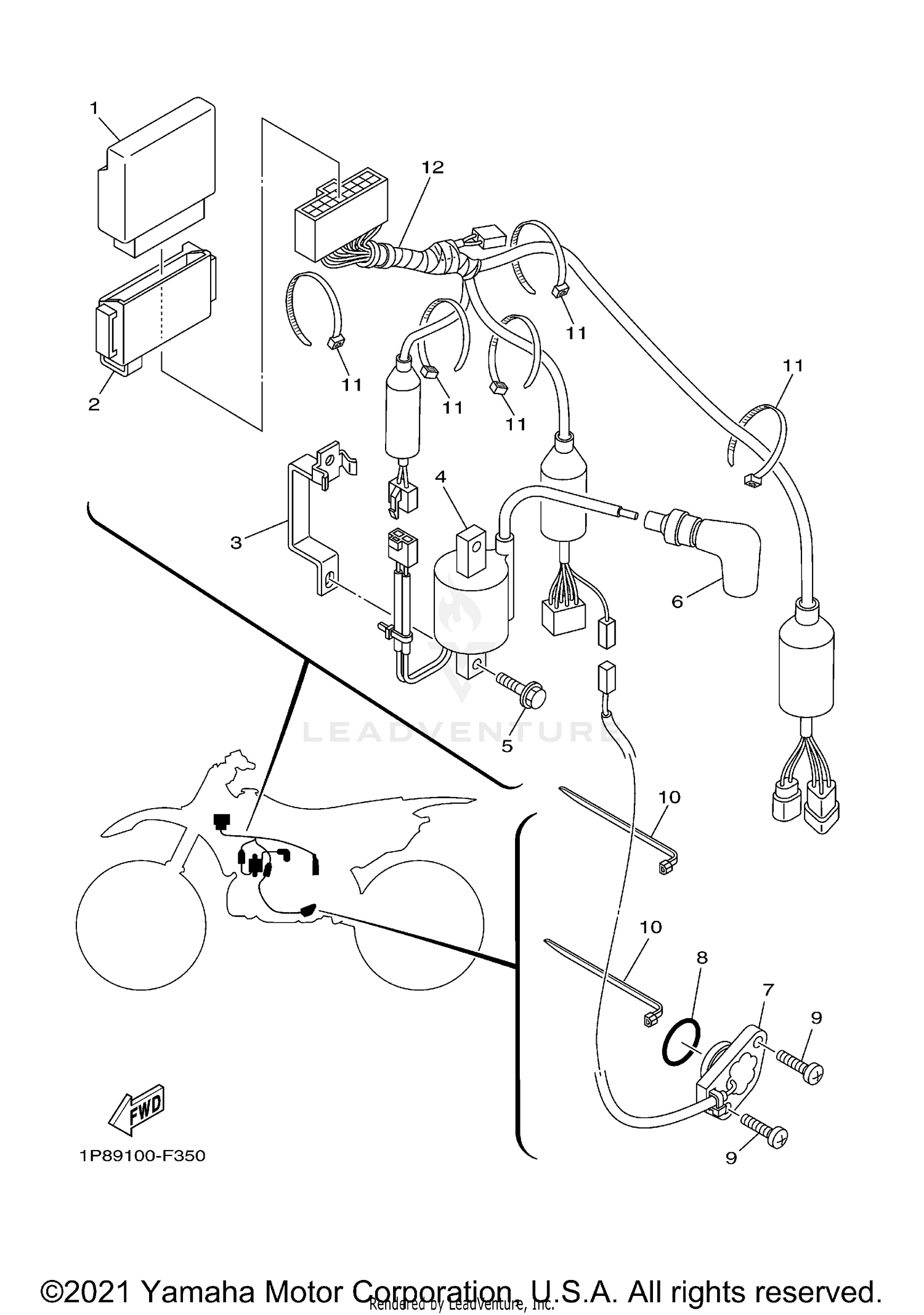

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
1P8-85540-00-00
Superseded by 1P8-85540-02-00
|
$342.99 | ||
|
Unavailable |
|||
|
#2
BAND
1P8-85546-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CORE, SIDE
1P8-8231U-10-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
IGNITION COIL ASSY
1P8-82310-00-00
Superseded by 1P8-82310-03-00
|
$108.99 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE
90105-06060-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG CAP ASSY
8DG-82370-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEUTRAL SWITCH ASSY
1P8-82540-00-00
Superseded by 1P8-82540-02-00
|
$56.99 | ||
|
Unavailable |
|||
|
#8
O-RING
93210-21001-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, BIND
90154-05022-00
Superseded by 98902-05014-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIRE, SUB LEAD
1P8-82509-21-00
Superseded by 1P8-82509-22-00
|
$152.99 | ||
|
Unavailable |
|||
