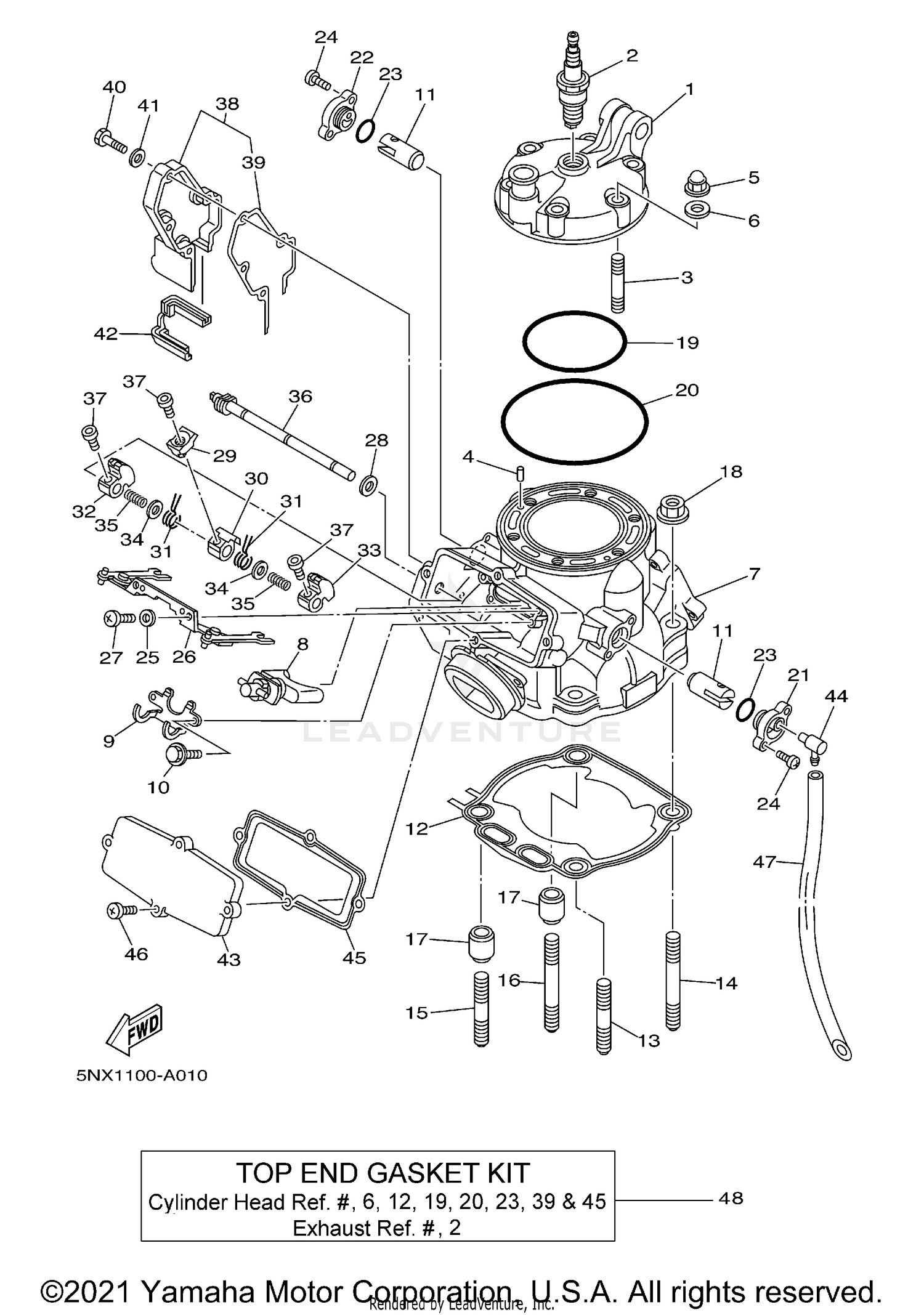

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
5MW-11111-02-00
|
$322.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BR8EG NGK SPLUG 4P
94702-00326-00
Superseded by BR8-EG000-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#3
BOLT, STUD
90116-08027-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
93604-08071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CROWN
90176-08005-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-080L8-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
CYLINDER 1
5UP-11311-20-00
Superseded by 5UP-11311-21-00
|
$852.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE ASSY
5XF-1131D-00-00
|
$326.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER 3
5CU-1131U-10-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90109-05001-00
Superseded by 90109-05002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE 2
5CU-1132A-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, CYLINDER
5UP-11351-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD
90116-10034-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD
95612-10660-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD
90116-10034-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
BOLT, STUD
95612-10660-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
PIN, DOWEL
99590-14016-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-10M35-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-74316-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93211-02703-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER 1
5CU-1131E-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER 4
5CU-1131P-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-15639-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98502-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-05021-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
LINK ASSY
5CU-11830-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW,BINDING
98902-05012-00
Superseded by 98904-05012-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93104-08040-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER
5NX-11395-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
LEVER, LINK
4SS-11832-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, TORSION
90508-155B8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PULLEY 1
5MW-1132E-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PULLEY 2
5MW-1132F-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-081G0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING, COMPRESSION
90501-046L6-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#36
SHAFT 1
5CU-1131V-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
91312-04008-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOUSING 1
5CU-11991-00-00
Superseded by 5CU-11991-01-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET
5CU-11993-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
97002-05020-00
Superseded by 97027-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#42
SEAL, HOUSING
5CU-11995-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER
5CU-1131M-10-00
Superseded by 5CU-1131M-11-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
CONNECTOR, SUCTION PIPE
353-13115-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
GASKET
5CU-11354-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW, BIND
98902-05016-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIPE 5
90445-09777-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
TOP END GASKET KIT
1P8-W0001-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
