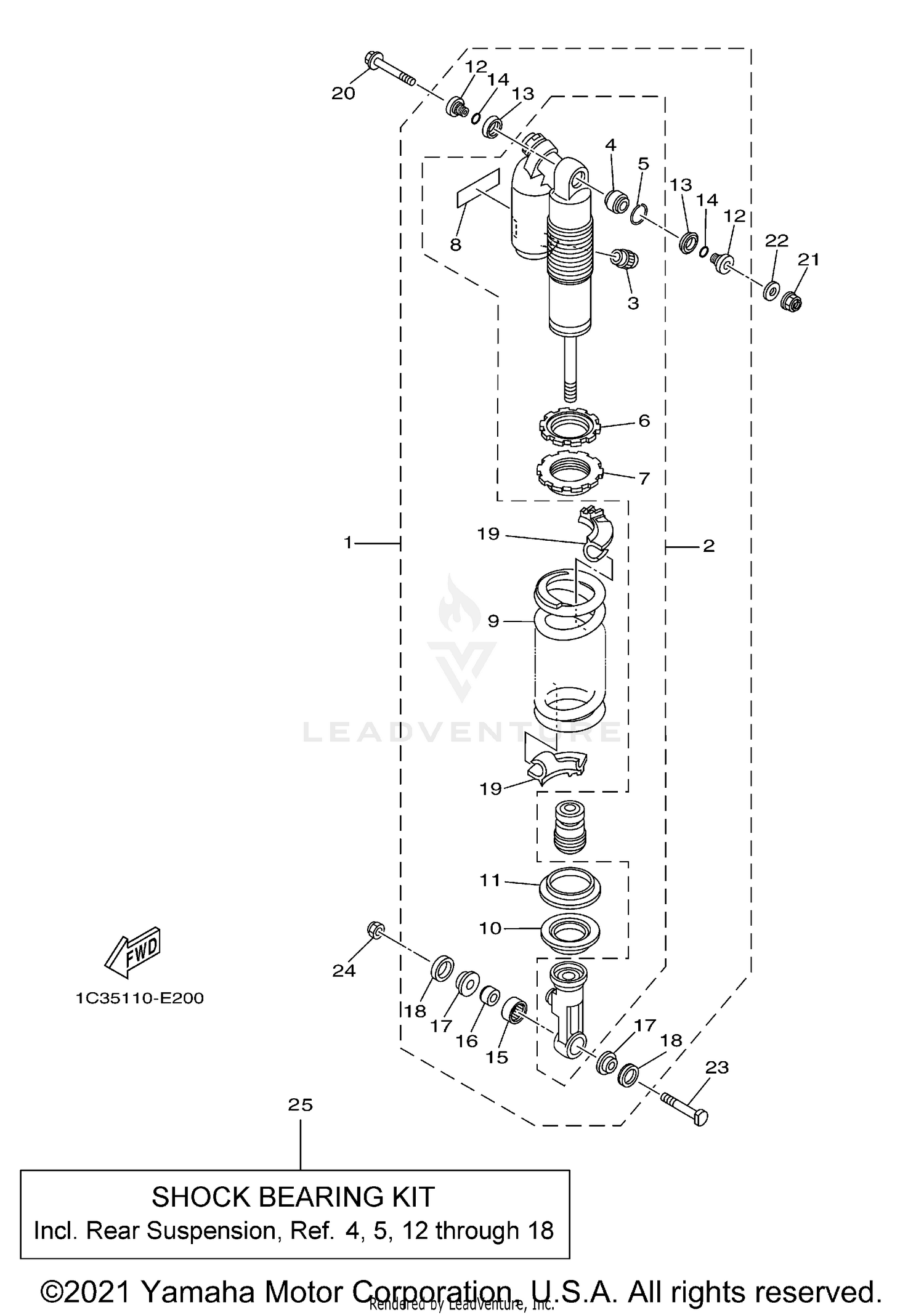

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
1P8-22200-F0-00
Superseded by 1SS-22200-00-00
|
$1,114.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER SUB ASSY
1P8-22201-F0-00
|
$1,047.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, AIR VALVE
509-23184-L0-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, SHOCK ABSORBER LOWER
4JX-22226-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
5DH-23183-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, SPRING 3
3SP-22234-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT, SPRING UPPER
1C3-22213-L0-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL, WARNING
4AA-22259-80-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING (K=48N/MM)
1C3-22212-20-00
Superseded by 5UN-22212-30-00
|
$398.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, SPRING 1
1C3-22214-50-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE, SPRING 2
5MV-22224-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, DISTANCE
1C3-22253-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, DUST
3JE-22475-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, RING
4EW-22474-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
5UN-22176-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH
5MV-22184-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, DISTANCE
1C3-22253-L0-00
Superseded by 1C3-22253-L1-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, DISTANCE
1C3-22253-L1-00
|
$46.99 | ||
|
Unavailable |
|||
|
#18
SEAL, DUST
5NY-22475-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING SEAT
1C3-22565-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT 2
5XE-22242-00-00
Superseded by 5XE-22242-01-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, S/L FLANGE
95602-10200-00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92902-10200-00
Superseded by 92990-10200-00
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT 1
5NY-22241-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SELF-LOCKING
90185-10012-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHOCK BEARING KIT
1SS-W002G-00-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
