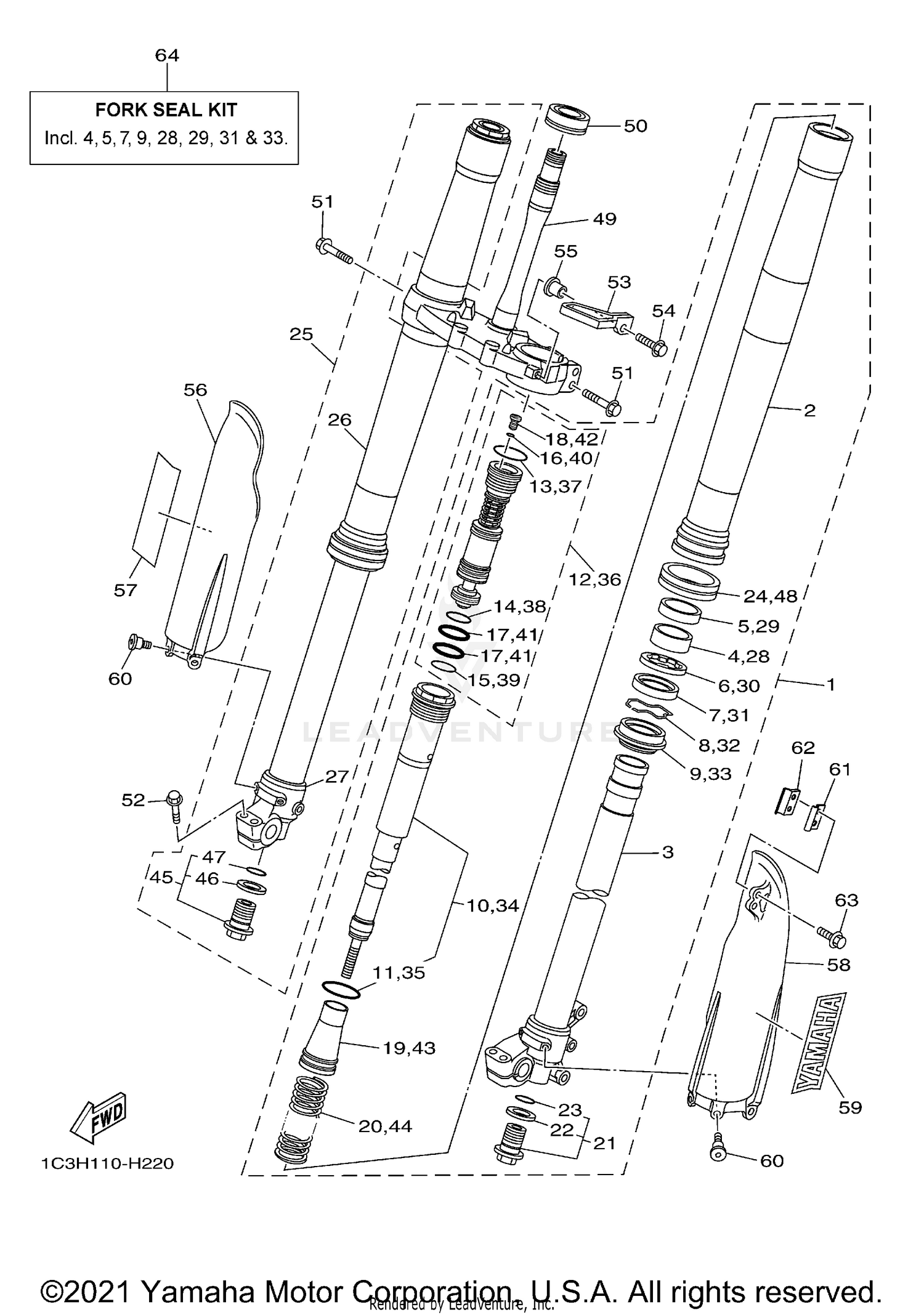

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
1P8-23102-D0-00
|
$1,362.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER (R.H)
1C3-23136-P0-00
|
$727.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
INNER TUBE COMP. 2
5XC-23120-N0-00
|
$454.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
5XE-23171-L0-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
5XE-23125-L0-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
5XC-23146-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
1C3-23145-M0-00
Superseded by 1C3-23145-L0-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
5XE-23153-L0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
5XE-23144-L0-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
5XC-23170-P0-00
|
$765.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
1C3-23147-L0-00
Superseded by 1C3-23147-L1-00
|
$3.48 | ||
|
Unavailable |
|||
|
#12
VALVE COMP.
1P8-2316A-P0-00
|
$457.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
1C3-23188-L0-00
Superseded by 1C3-23188-L1-00
|
$2.50 | ||
|
Unavailable |
|||
|
#14
O-RING
1C3-23188-N0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
1C3-23188-P0-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
1C3-23188-R0-00
Superseded by 1C3-23188-R1-00
|
$3.33 | ||
|
Unavailable |
|||
|
#17
GASKET
1AE-23147-00-00
Superseded by 1W4-23114-L0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
AIR VALVE COMP.
1C3-23190-L0-00
Superseded by 1C3-23190-L1-00
|
$23.99 | ||
|
Unavailable |
|||
|
#19
SEAT, SPRING UPPER
1C3-23142-L0-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, FRONT FORK (K=4.3N/MM)
5XC-23141-M1-00
Superseded by 1C3-23141-E1-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, CAP
5XC-23111-00-00
Superseded by 5XC-23111-01-00
|
$72.99 | ||
|
Unavailable |
|||
|
#22
GASKET
2HH-23158-L0-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#24
PROTECTER GUIDE COMP., 1
5XC-2314F-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
FRONT FORK ASSY (R.H)
1P8-23103-D0-00
|
$1,362.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
TUBE, OUTER (R.H)
1C3-23136-P0-00
|
$727.99 | ||
|
Unavailable |
|||
|
#27
INNER TUBE COMP. 1
5XC-23110-N0-00
|
$482.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PISTON, FRONT FORK
5XE-23171-L0-00
|
$27.99 | ||
|
Unavailable |
|||
|
#29
METAL, SLIDE 1
5XE-23125-L0-00
|
$25.99 | ||
|
Unavailable |
|||
|
#30
WASHER, OIL SEAL
5XC-23146-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#31
OIL SEAL
1C3-23145-M0-00
Superseded by 1C3-23145-L0-00
|
$32.99 | ||
|
Unavailable |
|||
|
#32
RING, SNAP
5XE-23153-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#33
SEAL, DUST
5XE-23144-L0-00
|
$22.99 | ||
|
Unavailable |
|||
|
#34
CYLINDER COMP., FRONT FORK
5XC-23170-P0-00
|
$765.99 | ||
|
Unavailable |
|||
|
#35
O-RING
1C3-23147-L0-00
Superseded by 1C3-23147-L1-00
|
$3.48 | ||
|
Unavailable |
|||
|
#36
VALVE COMP.
1P8-2316A-P0-00
|
$457.99 | ||
|
Unavailable |
|||
|
#37
O-RING
1C3-23188-L0-00
Superseded by 1C3-23188-L1-00
|
$2.50 | ||
|
Unavailable |
|||
|
#38
O-RING
1C3-23188-N0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#39
O-RING
1C3-23188-P0-00
|
$6.99 | ||
|
Unavailable |
|||
|
#40
O-RING
1C3-23188-R0-00
Superseded by 1C3-23188-R1-00
|
$3.33 | ||
|
Unavailable |
|||
|
#41
GASKET
1AE-23147-00-00
Superseded by 1W4-23114-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#42
AIR VALVE COMP.
1C3-23190-L0-00
Superseded by 1C3-23190-L1-00
|
$23.99 | ||
|
Unavailable |
|||
|
#43
SEAT, SPRING UPPER
1C3-23142-L0-00
|
$79.99 | ||
|
Unavailable |
|||
|
#44
SPRING, FRONT FORK (K=4.3N/MM)
5XC-23141-M1-00
Superseded by 1C3-23141-E1-00
|
$134.99 | ||
|
Unavailable |
|||
|
#45
BOLT, CAP
5XC-23111-00-00
Superseded by 5XC-23111-01-00
|
$72.99 | ||
|
Unavailable |
|||
|
#46
GASKET
2HH-23158-L0-00
|
$10.99 | ||
|
Unavailable |
|||
|
#47
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.26 | ||
|
Unavailable |
|||
|
#48
PROTECTER GUIDE COMP., 1
5XC-2314F-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#49
UNDER BRACKET COMP.
1P8-23340-M0-00
|
$447.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BEARING
93332-00081-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, FLANGE
90105-08134-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, FLANGE
90105-08154-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
GUIDE, CABLE
5XE-23389-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
BOLT, FLANGE
90105-06107-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
COLLAR
90387-06104-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#56
PROTECTOR 2
5XC-2315J-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
PROTECTOR 1
5XC-2315H-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.99 | ||
|
Unavailable |
|||
|
#60
BOLT
90109-06232-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
CLAMP
17D-23466-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
CLAMP
17D-23467-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BOLT, FLANGE
90105-06178-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#64
FORK SEAL KIT
1C3-W003B-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
