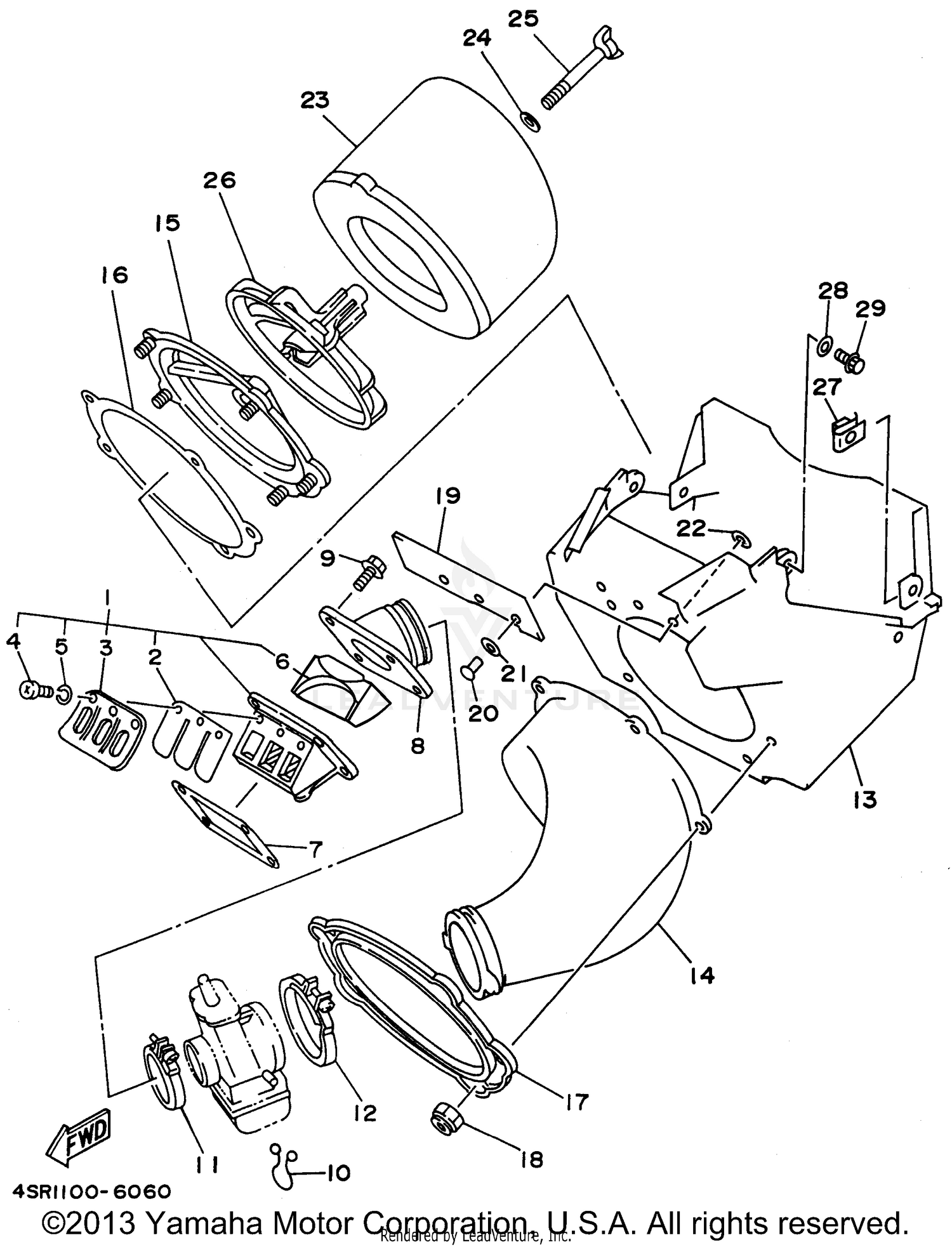

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSEMBLY
4MX-13610-00-00
|
$272.99 | ||
|
Unavailable |
|||
|
#2
REED, VALVE
3SP-13613-00-00
Superseded by 3SP-13613-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
4DA-13616-00-00
Superseded by 8DJ-13616-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, REED VALVE
4MX-13625-00-00
|
$80.99 | ||
|
Unavailable |
|||
|
#7
GASKET, VALVE SEAT
2K7-13621-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, CARBURETOR
4SR-13565-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90464-16039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE CLAMP ASSY
90450-51070-00
Superseded by 90450-51001-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE CLAMP ASSY
90450-70072-00
Superseded by 90450-70002-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
AIR CLEANER CASE ASSEMBLY
4SS-14401-00-00
Superseded by 4SS-14401-02-00
|
$149.99 | ||
|
Unavailable |
|||
|
#14
JOINT, AIR CLEANER 1
4SR-14453-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#15
HOLDER, GUIDE
3JD-14459-00-00
Superseded by 3JD-14459-01-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL
3JD-14462-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE
3JD-14477-00-00
Superseded by 5MV-14477-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#18
NUT, U
95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER 1
4SS-14417-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#20
RIVET, BLIND
90267-32119-00
|
$1.45 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-03644-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
92907-03200-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
ELEMENT, AIR CLEANER
4SS-14451-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#24
WASHER
90209-06096-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, WING
90122-06035-00
Superseded by 90122-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GUIDE
3JD-14458-00-00
Superseded by 3JD-14458-01-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SPRING
90183-06023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
90105-06553-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
