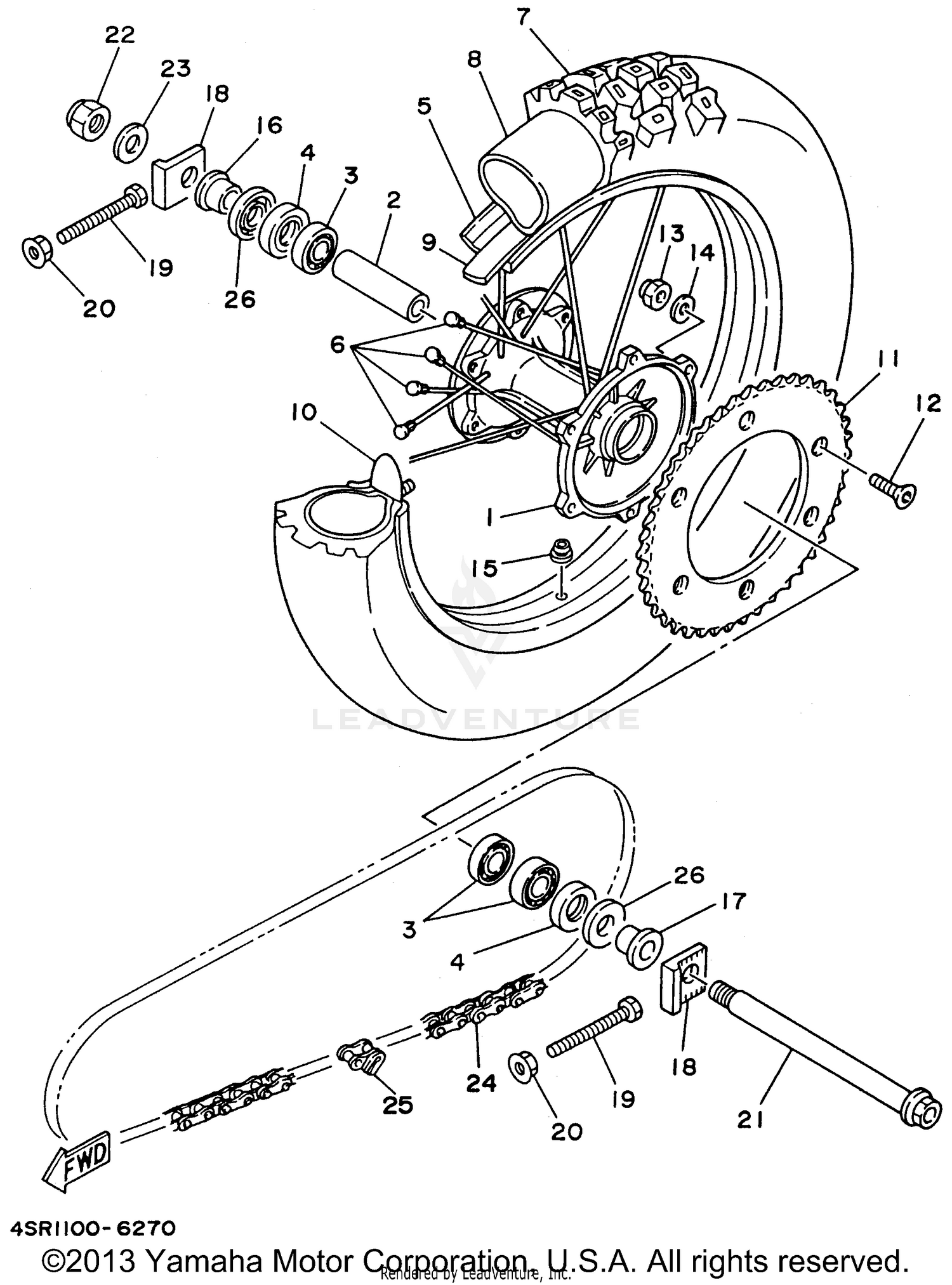

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
4EW-25311-00-00
|
$232.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-20278-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-00418-00
Superseded by 93306-00444-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-28023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM (2.15-19)
94421-19538-00
|
$638.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE SET, REAR
3JD-25304-00-00
|
$144.99 | ||
|
Unavailable |
|||
|
#7
110/90-19 BRIDGESTON
94111-197X4-00
Superseded by 94111-19011-00
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE (110/90-19 M/C TR4)
94211-19273-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, RIM (2.5-19)
94311-19155-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, BEAD
3JE-25394-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET, DRIVEN (48T)
4SS-25448-00-00
|
$49.42 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (51T)
4SS-25451-00-00
|
$52.46 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (49T)
4SS-25449-00-00
|
$189.49 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (50T)
4SS-25450-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (47T)
4SS-25447-00-00
|
$101.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (52T)
4SS-25452-00-00
|
$77.84 | ||
|
Unavailable |
|||
|
#12
BOLT
90109-081G1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U
95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-2000B-00
|
$16.49 | ||
|
Unavailable |
|||
|
#17
COLLAR
90387-2000C-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PULLER, CHAIN 1
3SP-25388-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90101-08777-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
AXLE, WHEEL
3JD-25381-01-00
|
$68.99 | ||
|
Unavailable |
|||
|
#22
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
92907-18600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CHAIN (DID520DMA2 SDH 114LL)
94561-55113-00
Superseded by 9Y581-92113-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT,CHAIN (DID 520DM-RJ)
94661-55001-00
Superseded by 94681-68001-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, HUB DUST
4V4-25367-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
