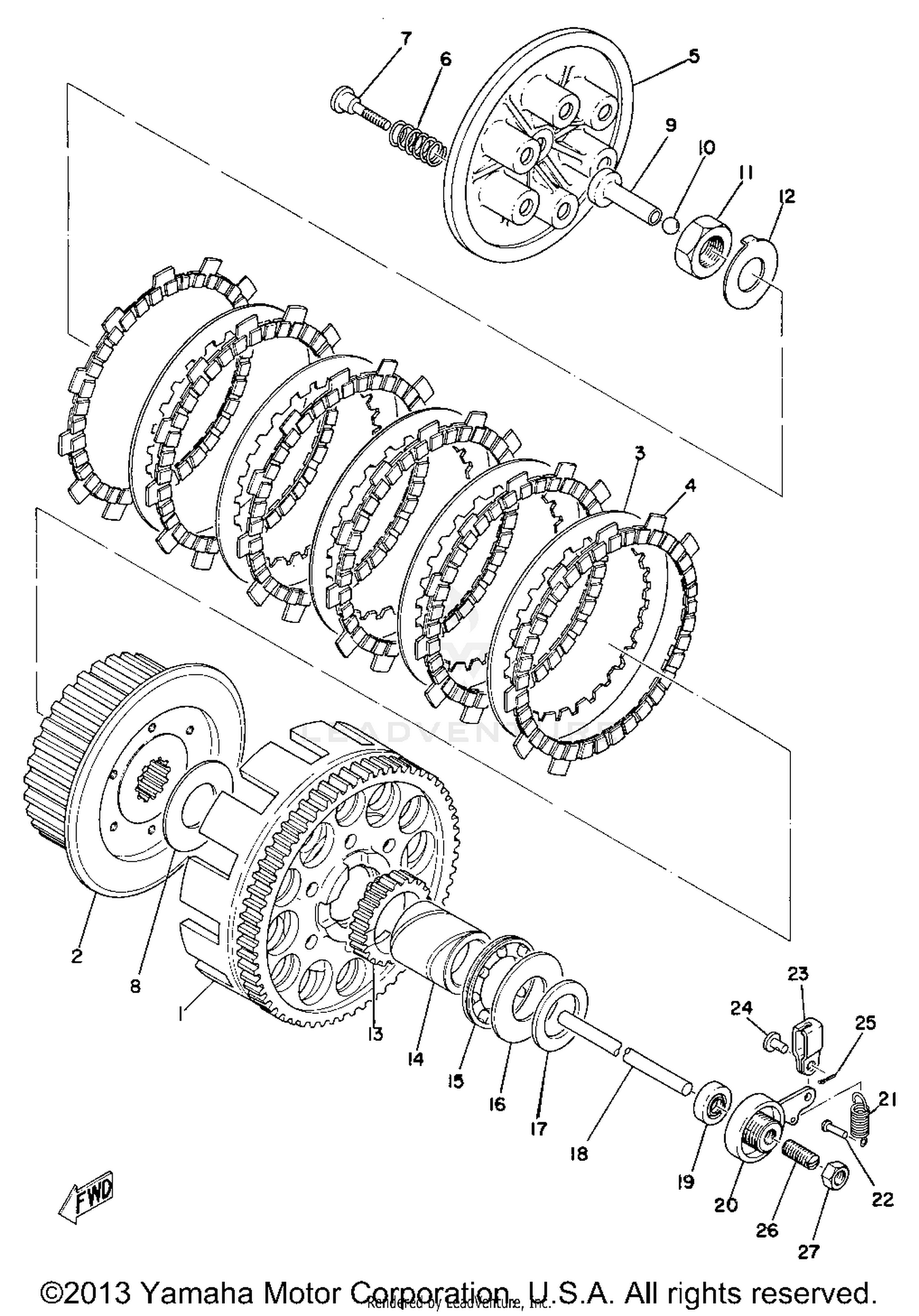

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH ASSEMBLY
431-16301-00-00
|
$289.99 | ||
|
Unavailable |
|||
|
#
PRI DRVN GEAR
431-16150-00-00
|
$204.99 | ||
|
Unavailable |
|||
|
#2
BOSS, CLUTCH
431-16371-01-00
|
$78.75 | ||
|
Unavailable |
|||
|
#3
PLATE, CLUTCH 2
4H7-16325-00-00
Superseded by 168-16325-10-00
|
$13.99 | ||
|
Unavailable |
|||
|
#4
PLATE, FRICTION
4H7-16321-01-00
Superseded by 4H7-16321-02-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, PRESSURE 1
363-16351-00-00
|
$14.62 | ||
|
Unavailable |
|||
|
#6
SPRING, COMPRESSION
90501-23319-00
|
$2.20 | ||
|
Unavailable |
|||
|
#7
SCREW, SPECL SHAPE
90149-05147-00
|
$1.10 | ||
|
Unavailable |
|||
|
#8
PLATE, THRUST 2
170-16164-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD, PUSH 1
431-16356-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#10
BALL
93505-16006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90170-18089-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
WASHER, LOCK
90215-18111-00
|
$1.05 | ||
|
Unavailable |
|||
|
#13
GEAR, KICK PINION
438-15631-00-00
|
$33.20 | ||
|
Unavailable |
|||
|
#14
SPACER 1
214-16181-00-00
|
$14.42 | ||
|
Unavailable |
|||
|
#15
BEARING, FLAT #41
93341-23307-00
|
$13.99 | ||
|
Unavailable |
|||
|
#16
PLATE, THRUST 2
170-16164-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-252K4-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD, PUSH 2
307-16357-00-00
|
$12.50 | ||
|
Unavailable |
|||
|
#19
OIL SEAL, SDO-TYPE (SDO-6.8-26-
93109-07009-00
|
$4.60 | ||
|
Unavailable |
|||
|
#20
PUSH LEVER ASSEMBLY
483-16340-00-00
|
$32.66 | ||
|
Unavailable |
|||
|
#21
SPRING, TENSION (137-16345-00)
90506-10020-00
|
$3.50 | ||
|
Unavailable |
|||
|
#22
HOOK, SPRING
132-16346-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JOINT
214-16389-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, CLEVIS
90240-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER
91401-10015-00
|
$2.35 | ||
|
Unavailable |
|||
|
#26
BOLT, SET (214-16343-00)
90113-08017-00
|
$4.45 | ||
|
Unavailable |
|||
|
#27
NUT
90179-08179-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
