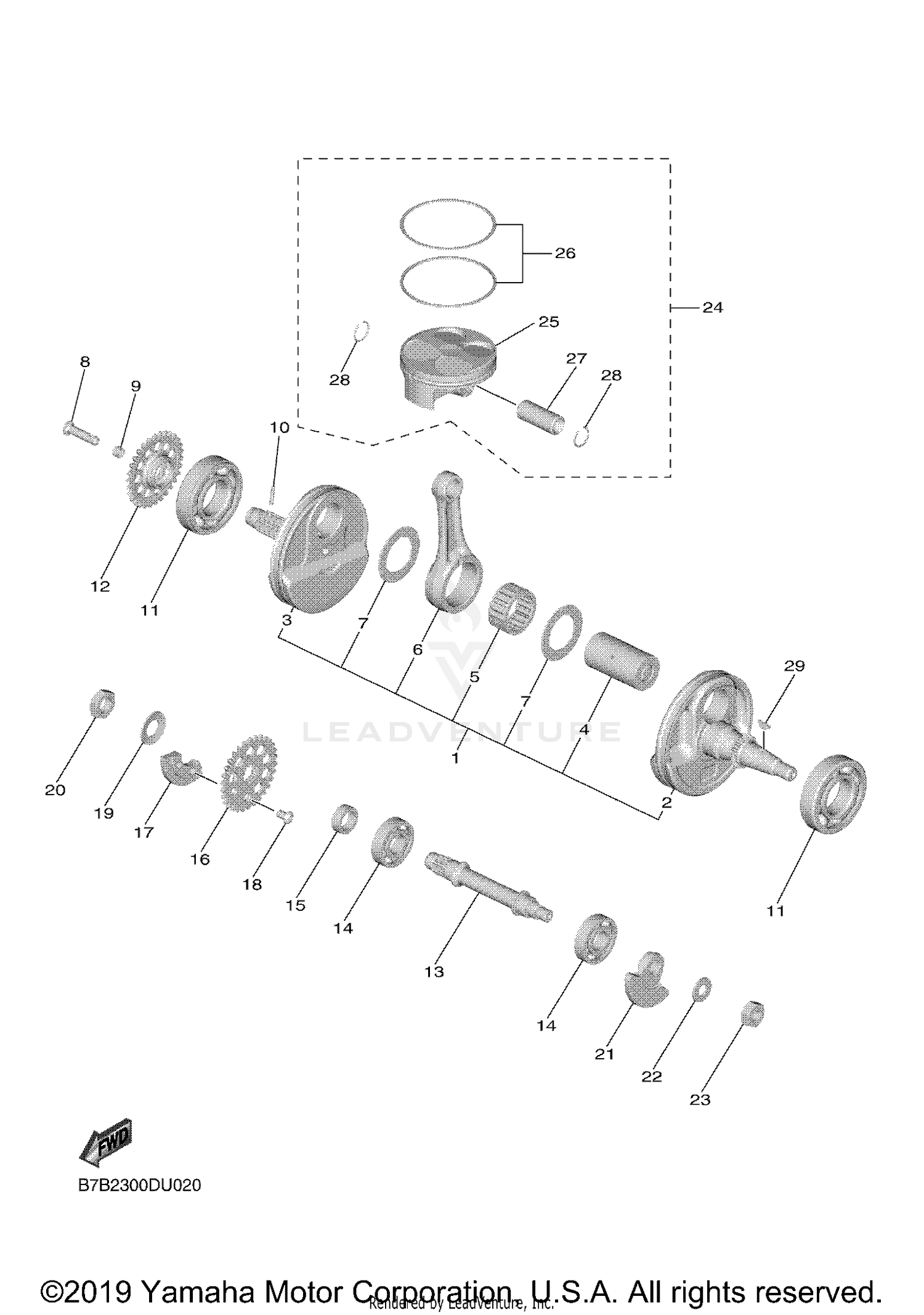

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
B7B-11400-00-00
Superseded by B7B-11400-02-00
|
$557.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
B7B-11412-00-00
Superseded by B7B-11412-01-00
|
$273.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
B7B-11422-00-00
Superseded by B7B-11422-01-00
|
$228.99 | ||
|
Unavailable |
|||
|
#4
PIN, CRANK 1
1SM-11681-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93310-63097-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
1SM-11651-20-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-30011-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, CLEVIS
90240-07105-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-070A2-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93602-13177-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-20648-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, DRIVE
1SM-11536-10-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHAFT 1
1SM-11455-10-00
|
$162.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20351-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-175R2-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, BALANCE WEIGHT
1SM-11531-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WEIGHT 1
1SM-11454-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
90149-06083-00
Superseded by 90149-06084-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, CONICAL SPRING
90208-14033-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90170-14171-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WEIGHT 2
1SM-11464-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, CONICAL SPRING
90208-10001-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90170-10012-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
PISTON ASSY
B7B-116A0-00-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PISTON (STD)
B7B-11631-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PISTON RING SET (STD)
1SM-11603-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, PISTON
1SM-11633-20-00
Superseded by 1SM-11633-30-00
|
$40.99 | ||
|
Unavailable |
|||
|
#28
CIRCLIP
93450-17129-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
KEY, WOODRUFF
90280-03006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
