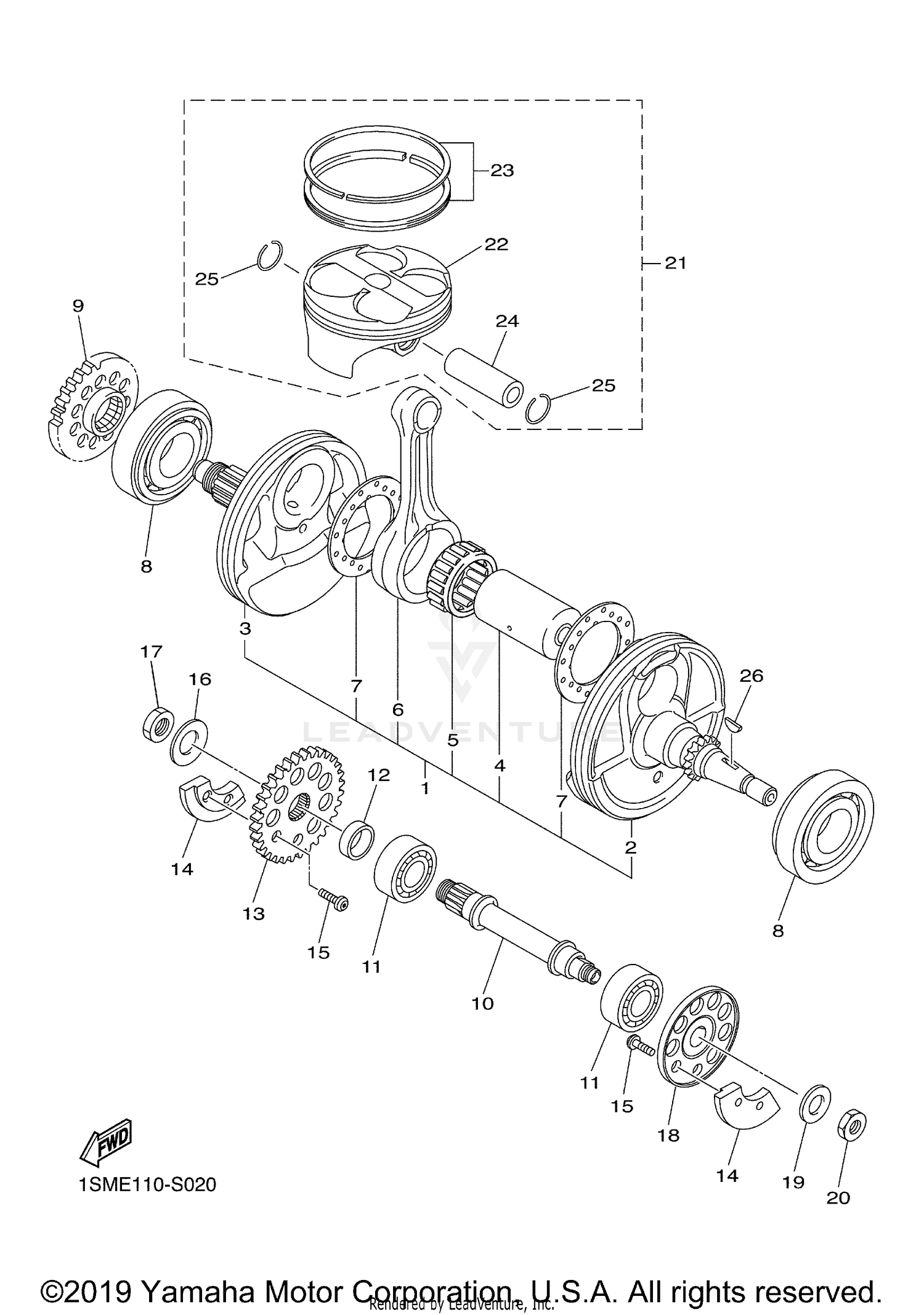

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
1SM-11400-30-00
|
$645.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK 1
1SM-11412-20-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
1SM-11422-20-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CRANK 1
1SM-11681-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93310-63097-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
1SM-11651-20-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-30008-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-20648-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, DRIVE
1SM-11536-10-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT 1
1SM-11455-10-00
|
$162.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-20351-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-175R2-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, BALANCE WEIGHT
1SM-11531-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WEIGHT 1
1SM-11454-10-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
90149-06083-00
Superseded by 90149-06084-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, CONICAL SPRING
90208-14033-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90170-14171-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WEIGHT 3
1SM-1145A-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, CONICAL SPRING
90208-10001-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90170-10012-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
PISTON ASSY
1SM-116A0-10-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PISTON (STD)
1SM-11631-10-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PISTON RING SET (STD)
1SM-11603-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, PISTON
1SM-11633-20-00
Superseded by 1SM-11633-30-00
|
$40.99 | ||
|
Unavailable |
|||
|
#25
CIRCLIP
93450-17129-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#26
KEY, WOODRUFF
90280-03006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
