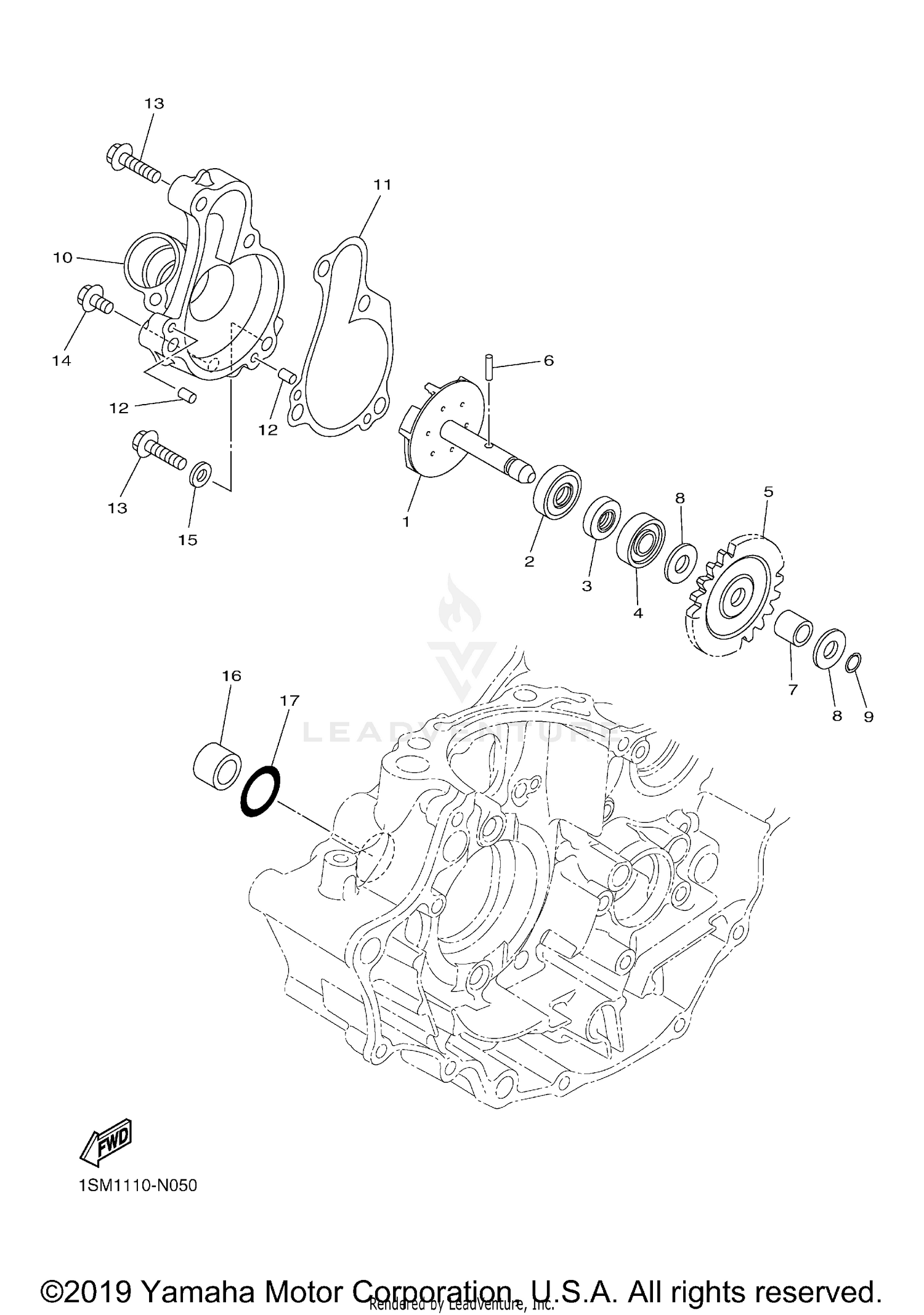

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IMPELLER SHAFT ASSY
1SM-12450-00-00
Superseded by 1SM-12450-01-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
OIL SEAL
93102-08004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-08307-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93300-60801-00
Superseded by 93300-60814-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR
1SM-12453-00-00
Superseded by 1SM-12453-10-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
93603-12007-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-08032-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08512-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
93440-07182-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, HOUSING
33D-12422-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, HOUSING COVER 1
33D-12427-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95022-06025-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, WATER
5NL-12564-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-16716-00
Superseded by 93210-16772-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-16772-00
|
$1.30 | ||
|
Unavailable |
|||
