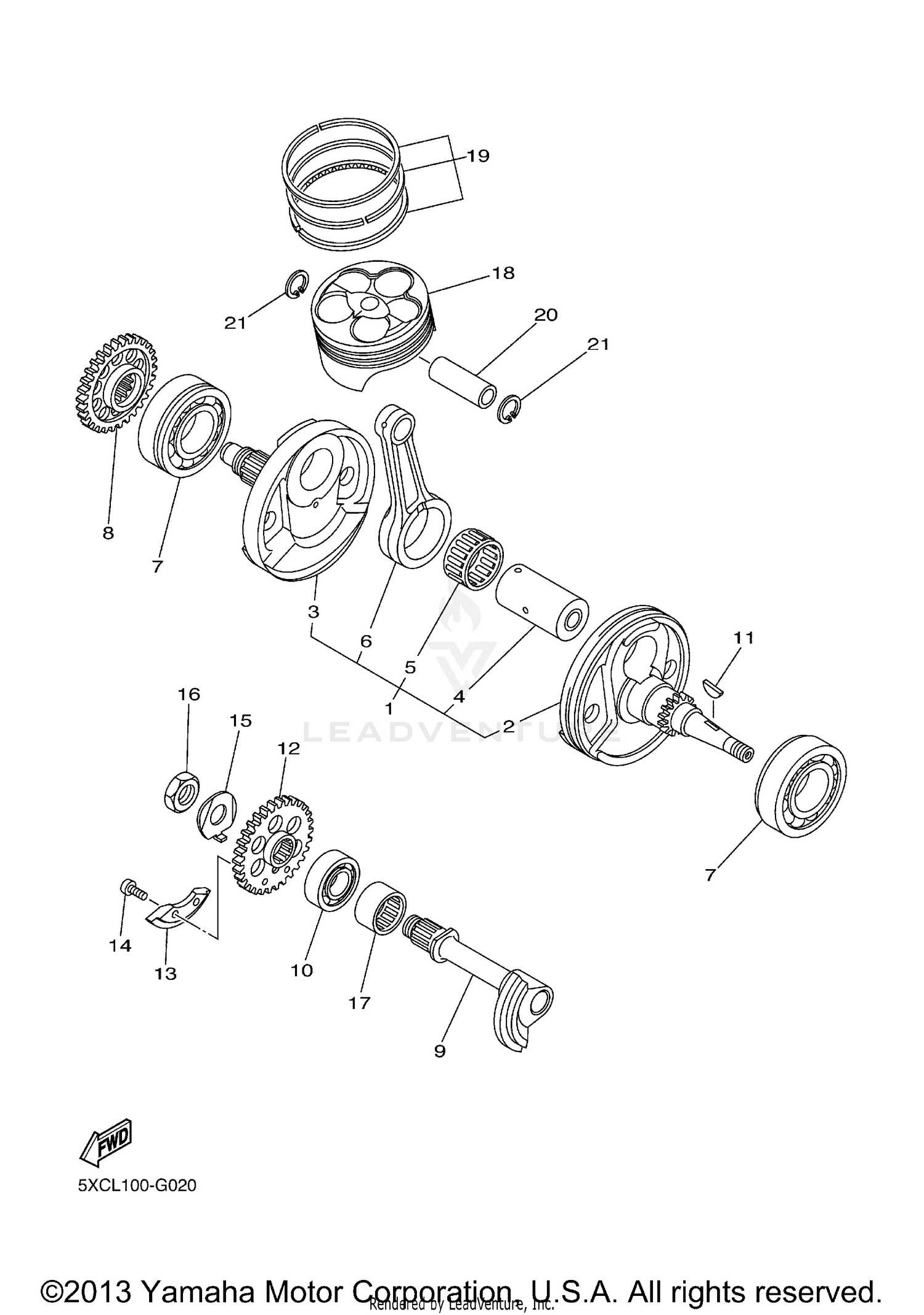

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
5XC-11400-20-00
Superseded by 5XC-11400-22-00
|
$588.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK 1
5UL-11412-20-00
|
$267.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
5UL-11422-10-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CRANK 1
5XC-11681-00-00
Superseded by 5XC-11681-01-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93310-63238-00
Superseded by 93310-63290-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
5XC-11651-00-00
Superseded by 17D-11651-90-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-20648-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, DRIVE
5NL-11536-10-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT 1
5NL-11455-00-00
|
$261.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20335-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY, WOODRUFF
90280-03006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, BALANCE WEIGHT
5NL-11531-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WEIGHT 1
5NL-11454-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
90149-06084-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, LOCK
90215-14204-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-14171-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93311-32261-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PISTON (STD)
5XC-11631-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PISTON RING SET (STD)
5NL-11603-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, PISTON
5NL-11633-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
93420-16086-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
