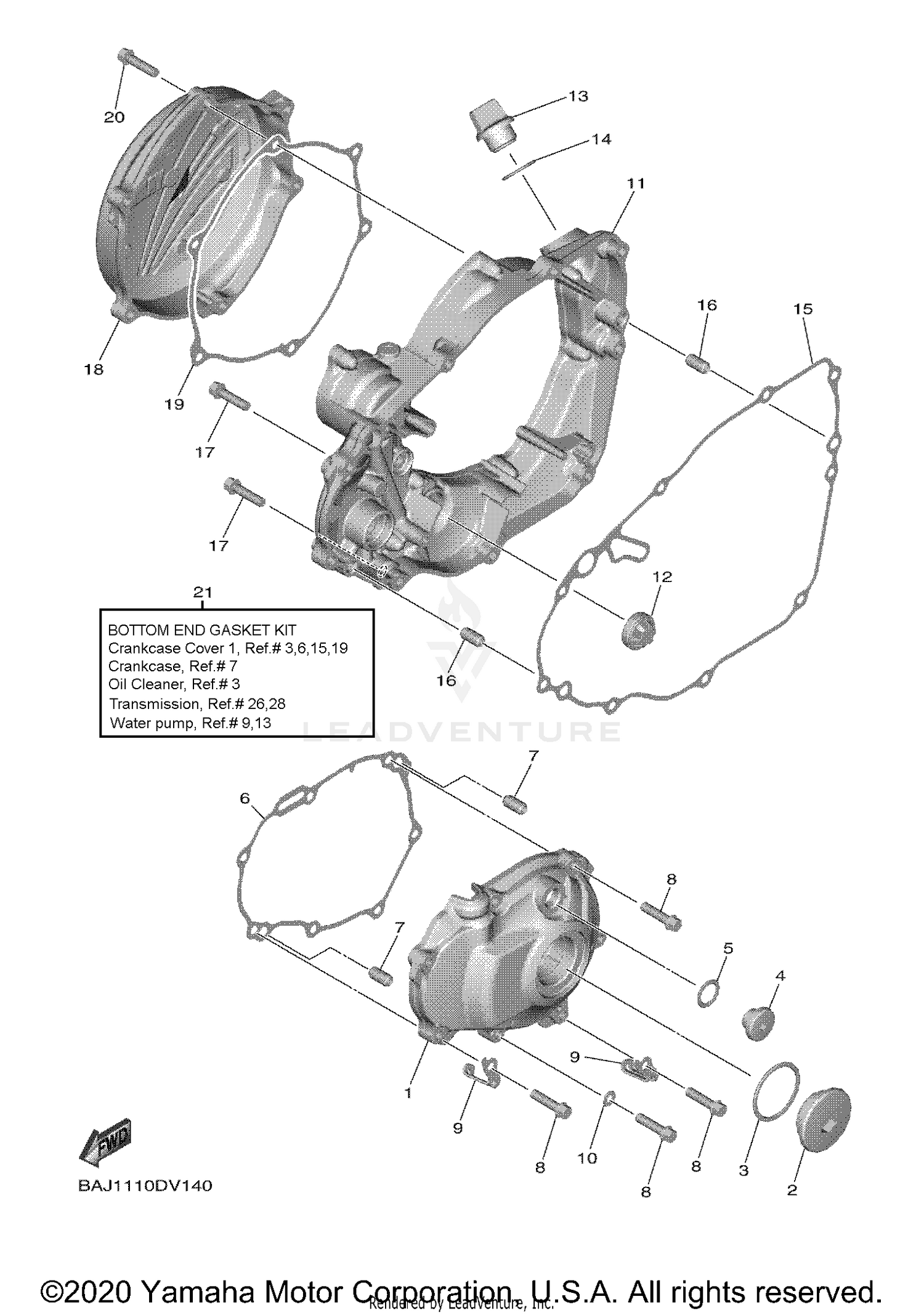

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
B7B-15411-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, STRAIGHT SCREW
90340-36007-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-357A3-00
Superseded by 93210-35804-00
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, STRAIGHT SCREW
90340-14021-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-14369-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CRANKCASE CO
B7B-15451-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE DEEP RECESS
95E32-06025-00
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90465-08062-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, CRANKCASE 3
B7B-15431-00-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GAUGE, LEVEL
3Y1-15361-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, OIL
3Y1-15363-10-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-19123-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, CRANKCASE CO
B7B-15462-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL
99530-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE DEEP RECESS
95E32-06025-00
|
$0.47 | ||
|
Unavailable |
|||
|
#18
COVER, 1
B7B-15415-00-00
|
$207.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
B7B-15453-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE DEEP RECESS
95E32-06025-00
|
$0.47 | ||
|
Unavailable |
|||
|
#21
BOTTOM END GASKET KI
B7B-W0002-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
