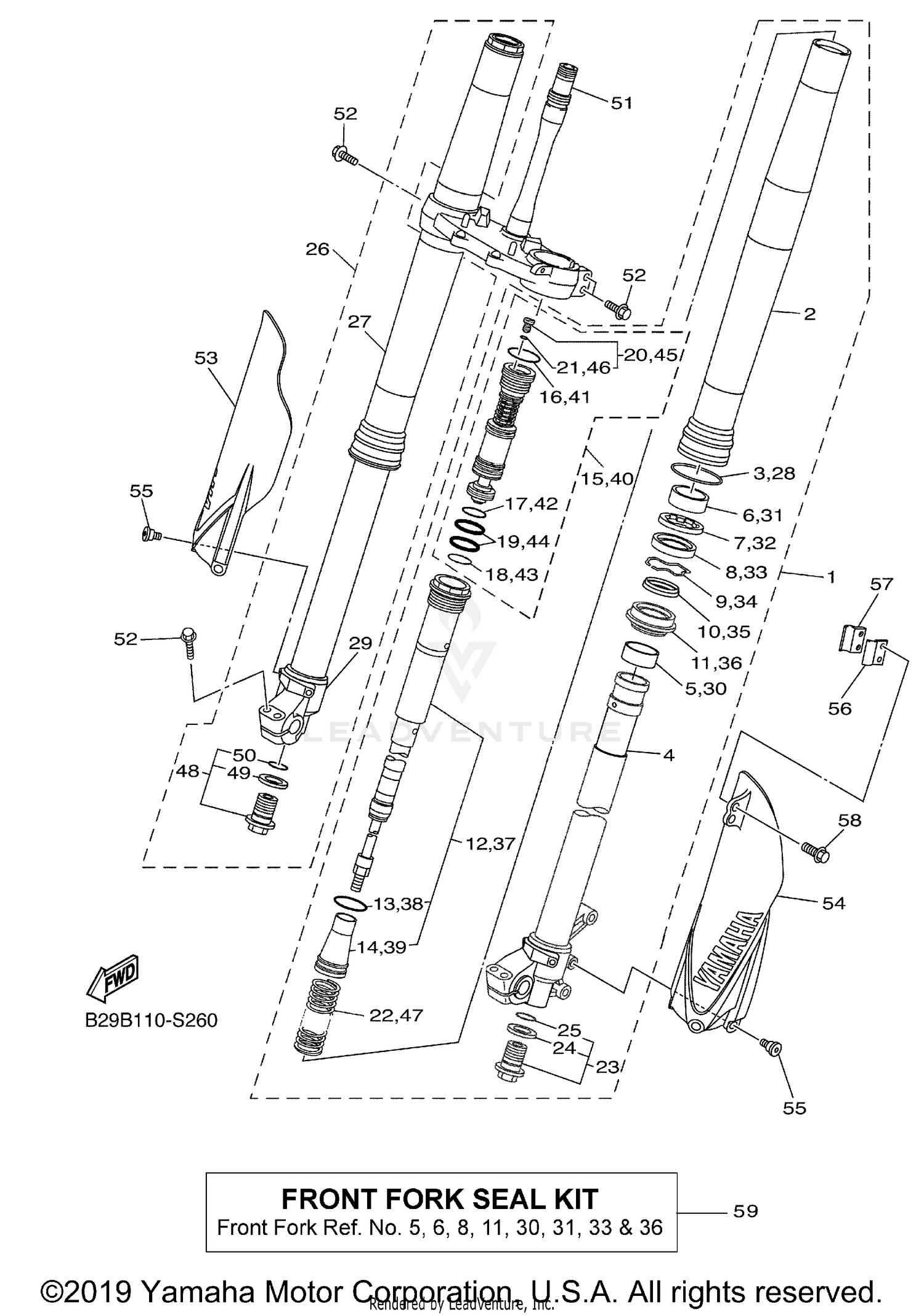

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
B29-23102-40-00
|
$930.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER (RIGHT)
33D-23136-00-00
|
$581.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, SNAP
17D-23153-00-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
INNER TUBE COMP. 2
B29-23120-10-00
|
$356.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON, FRONT FORK
5XE-23171-L0-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
METAL, SLIDE 1
5XE-23125-L0-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, OIL SEAL
5XC-23146-10-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FORK SEAL KIT
B29-23145-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, SNAP
5XE-23153-L0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCRAPER
B29-4381D-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, DUST
5XE-23144-L0-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CYLINDER COMP., FRONT FORK
B29-23170-20-00
|
$476.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
1C3-23147-L0-00
Superseded by 1C3-23147-L1-00
|
$3.48 | ||
|
Unavailable |
|||
|
#14
SEAT, SPRING UPPER
17D-23142-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE COMP.
B29-2316A-20-00
|
$306.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
1C3-23188-L0-00
Superseded by 1C3-23188-L1-00
|
$2.50 | ||
|
Unavailable |
|||
|
#17
O-RING
1C3-23188-N0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
1C3-23188-P0-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
1AE-23147-00-00
Superseded by 1W4-23114-L0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
AIR VALVE COMP.
1C3-23190-L0-00
Superseded by 1C3-23190-L1-00
|
$23.99 | ||
|
Unavailable |
|||
|
#21
O-RING
1C3-23188-R0-00
Superseded by 1C3-23188-R1-00
|
$3.33 | ||
|
Unavailable |
|||
|
#22
SPRING, FRONT FORK
2GB-23141-30-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, CAP
5XC-23111-00-00
Superseded by 5XC-23111-01-00
|
$72.99 | ||
|
Unavailable |
|||
|
#24
GASKET
2HH-23158-L0-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#26
FRONT FORK ASSY (R.H)
B29-23103-40-00
|
$930.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
TUBE, OUTER (RIGHT)
33D-23136-00-00
|
$581.99 | ||
|
Unavailable |
|||
|
#28
RING, SNAP
17D-23153-00-00
|
$4.63 | ||
|
Unavailable |
|||
|
#29
INNER TUBE COMP. 1
B29-23110-10-00
|
$380.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PISTON, FRONT FORK
5XE-23171-L0-00
|
$27.99 | ||
|
Unavailable |
|||
|
#31
METAL, SLIDE 1
5XE-23125-L0-00
|
$25.99 | ||
|
Unavailable |
|||
|
#32
WASHER, OIL SEAL
5XC-23146-10-00
|
$14.49 | ||
|
Unavailable |
|||
|
#33
FORK SEAL KIT
B29-23145-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#34
RING, SNAP
5XE-23153-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#35
SCRAPER
B29-4381D-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#36
SEAL, DUST
5XE-23144-L0-00
|
$22.99 | ||
|
Unavailable |
|||
|
#37
CYLINDER COMP., FRONT FORK
B29-23170-20-00
|
$476.99 | ||
|
Unavailable |
|||
|
#38
O-RING
1C3-23147-L0-00
Superseded by 1C3-23147-L1-00
|
$3.48 | ||
|
Unavailable |
|||
|
#39
SEAT, SPRING UPPER
17D-23142-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#40
VALVE COMP.
B29-2316A-20-00
|
$306.99 | ||
|
Unavailable |
|||
|
#41
O-RING
1C3-23188-L0-00
Superseded by 1C3-23188-L1-00
|
$2.50 | ||
|
Unavailable |
|||
|
#42
O-RING
1C3-23188-N0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#43
O-RING
1C3-23188-P0-00
|
$6.99 | ||
|
Unavailable |
|||
|
#44
GASKET
1AE-23147-00-00
Superseded by 1W4-23114-L0-00
|
$7.99 | ||
|
Unavailable |
|||
|
#45
AIR VALVE COMP.
1C3-23190-L0-00
Superseded by 1C3-23190-L1-00
|
$23.99 | ||
|
Unavailable |
|||
|
#46
O-RING
1C3-23188-R0-00
Superseded by 1C3-23188-R1-00
|
$3.33 | ||
|
Unavailable |
|||
|
#47
SPRING, FRONT FORK
2GB-23141-30-00
|
$101.99 | ||
|
Unavailable |
|||
|
#48
BOLT, CAP
5XC-23111-00-00
Superseded by 5XC-23111-01-00
|
$72.99 | ||
|
Unavailable |
|||
|
#49
GASKET
2HH-23158-L0-00
|
$10.99 | ||
|
Unavailable |
|||
|
#50
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.26 | ||
|
Unavailable |
|||
|
#51
UNDER BRACKET COMP.
33D-23340-20-00
|
$373.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, FLANGE
90105-08154-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
PROTECTOR 2
17D-2315J-50-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
PROTECTOR 1
17D-2315H-50-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT
90109-06232-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
CLAMP
17D-23466-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLAMP
17D-23467-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
BOLT, FLANGE
90105-06170-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#59
FORK SEAL KIT
B29-W003B-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
