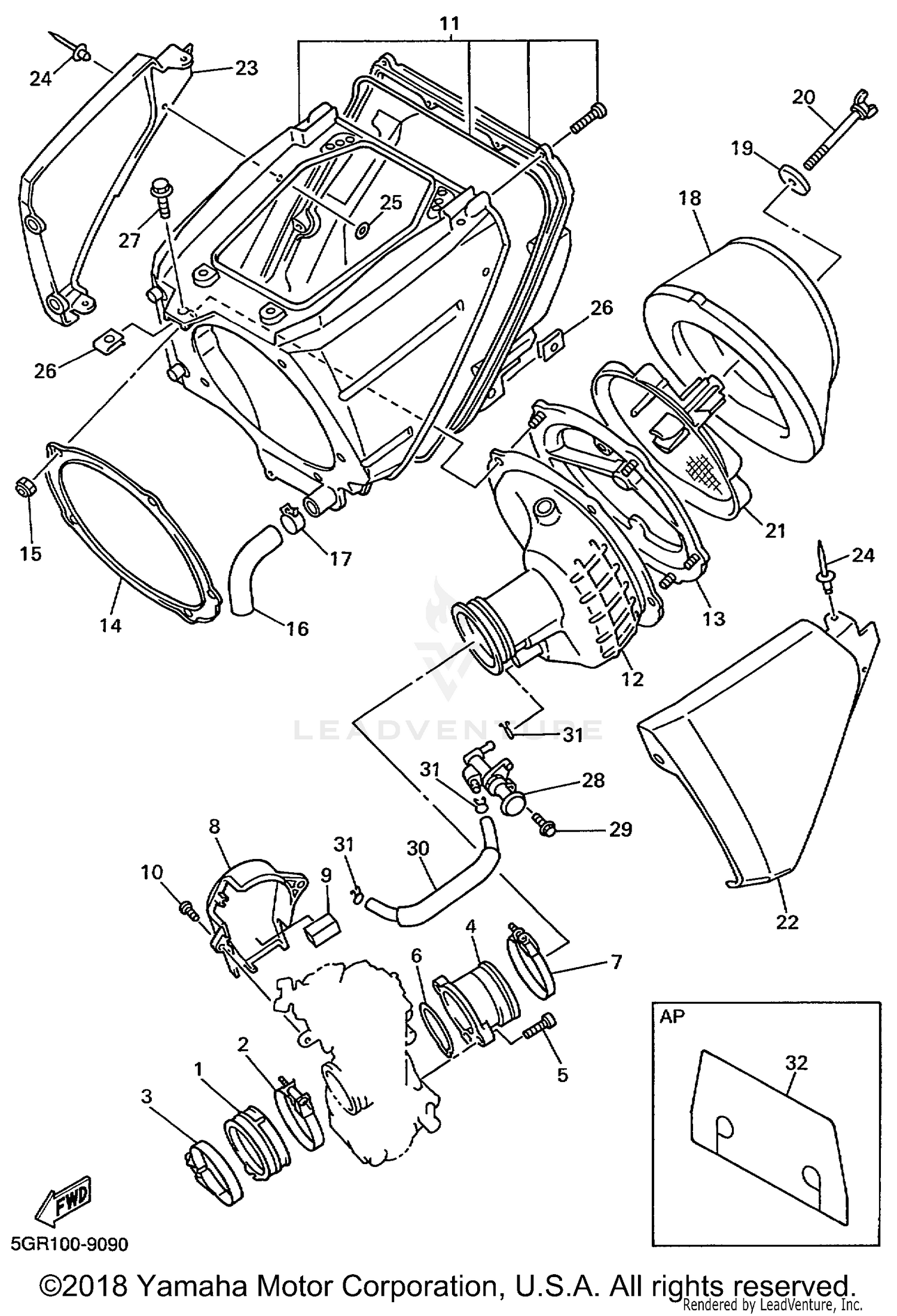

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 3
5BE-13597-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE CLAMP ASSY
90450-57092-00
Superseded by 90450-57010-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90450-59091-00
Superseded by 90450-62006-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT, AIR FILTER 1
5BE-1440F-00-00
|
$103.47 | ||
|
Unavailable |
|||
|
#5
BOLT, HEX. SOCKET HEAD
91317-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
4FN-14561-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE CLAMP ASSY
90460-61162-00
Superseded by 90450-62006-00
|
$11.49 | ||
|
Unavailable |
|||
|
#8
COVER 1
5BE-14293-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#9
DAMPER
5BF-14409-00-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET BUTTON
90111-06017-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
AIR CLEANER CASE ASSY
5BE-14401-00-00
Superseded by 5JG-14401-00-00
|
$261.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, AIR CLEANER 1
5BE-14453-00-00
|
$137.99 | ||
|
Unavailable |
|||
|
#13
HOLDER, GUIDE
3JD-14459-01-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE
3JD-14477-00-00
Superseded by 5MV-14477-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#15
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, DRAIN
5BE-1443E-00-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
ELEMENT, AIR CLEANER
4XM-14451-00-00
Superseded by 4XM-14451-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
90209-06096-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, WING
90122-06035-00
Superseded by 90122-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GUIDE
5BE-14458-00-00
Superseded by 5BE-14458-10-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, CLEANER CASE 1
5BE-1441A-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#23
COVER, CLEANER CASE 2
5BE-1441E-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#24
RIVET, BLIND
90267-32070-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-03313-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SPRING
90183-06023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
VALVE ASSEMBLY
5GR-14340-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE
5BE-14349-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#31
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER 1
5BE-14417-00-00
|
$21.99 | ||
|
Unavailable |
|||
